HP rp2400 系列伺服器 ─ 基本電纜連接
前面板控制與指示燈
前面板控制與指示燈

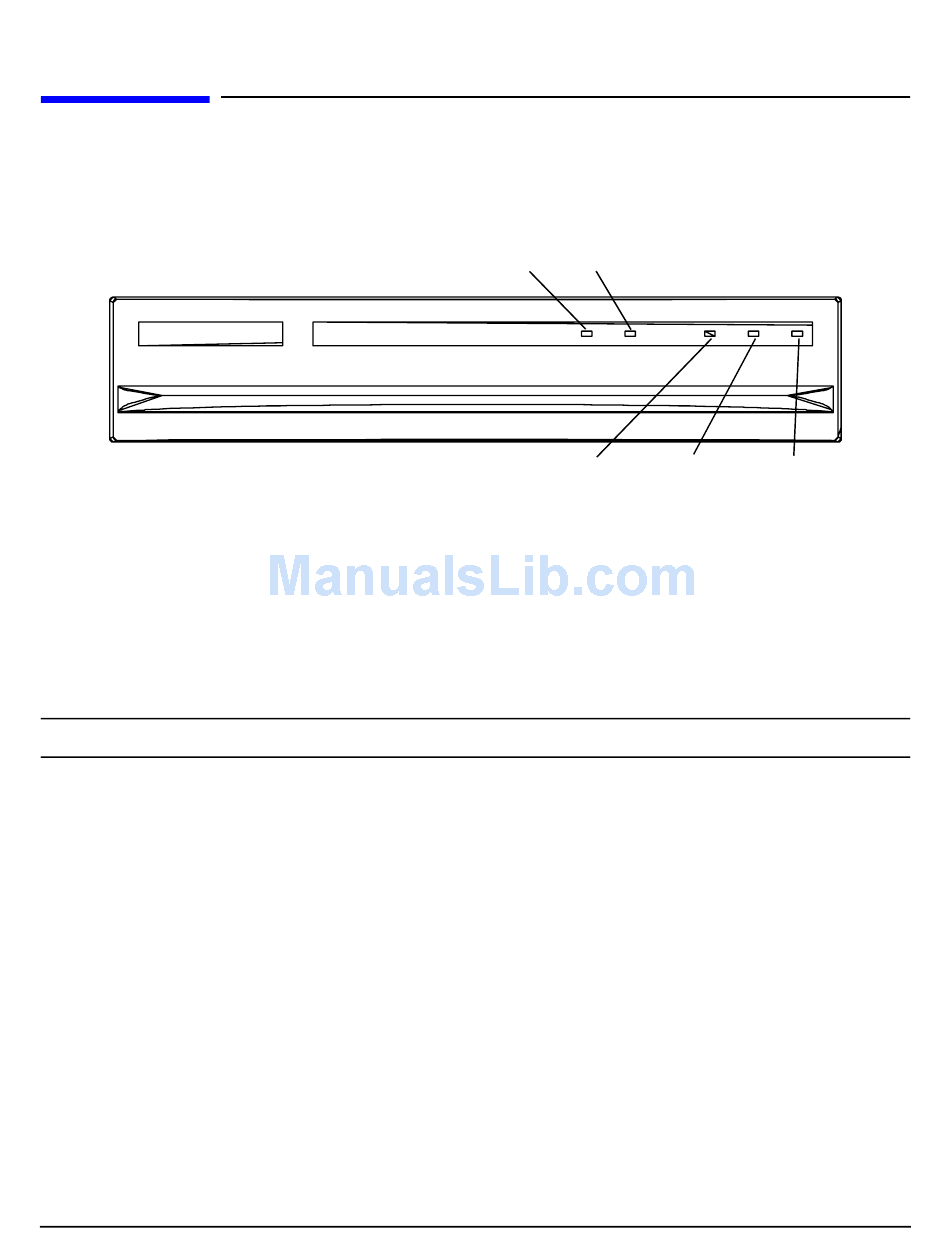

下節將說明位於 rp24xx 伺服器前方之控制與 LED 指示燈,如下圖所示:
圖 1-2
控制與 LED 指示燈
ccrr018
綠色
1. (
) RUN LED ─ 亮起時,係指已開啟系統的電源。
琥珀色
2. (
) Attention (ATTN) LED ─ 亮起時,係指發生需操作員注意或 HP 支援人員協助的狀況。
紅色
3. (
) Fault LED ─ 亮起時,係指發生需操作員立即處理的狀況。
琥珀色
4. (
) Remote LED ─ 亮起時,係指遠端 (Remote) 連接埠在使用中。
綠色
5. (
) Power LED ─ 亮起時,係指系統啟用 DC 電源。
附註
若需技術支援,請撥打您當地的支援熱線,或是造訪 http://www.hp.com/support 以連絡 HP。
伺服器外部連接
外部裝置是透過位於背分壁 (bulkhead) 上的特定接頭,與伺服器介面進行作業。 外部至伺服器的連接包括用於下列項
目的連接埠:
小型電腦系統介面 (Small Computer System Interface,SCSI) 裝置
系統控制台
區域網路 (Local Area Network,LAN) 控制台
區域網路
電源線
8 繁體中文
Run
Attn.
Fault
Remote
Power
第一章
