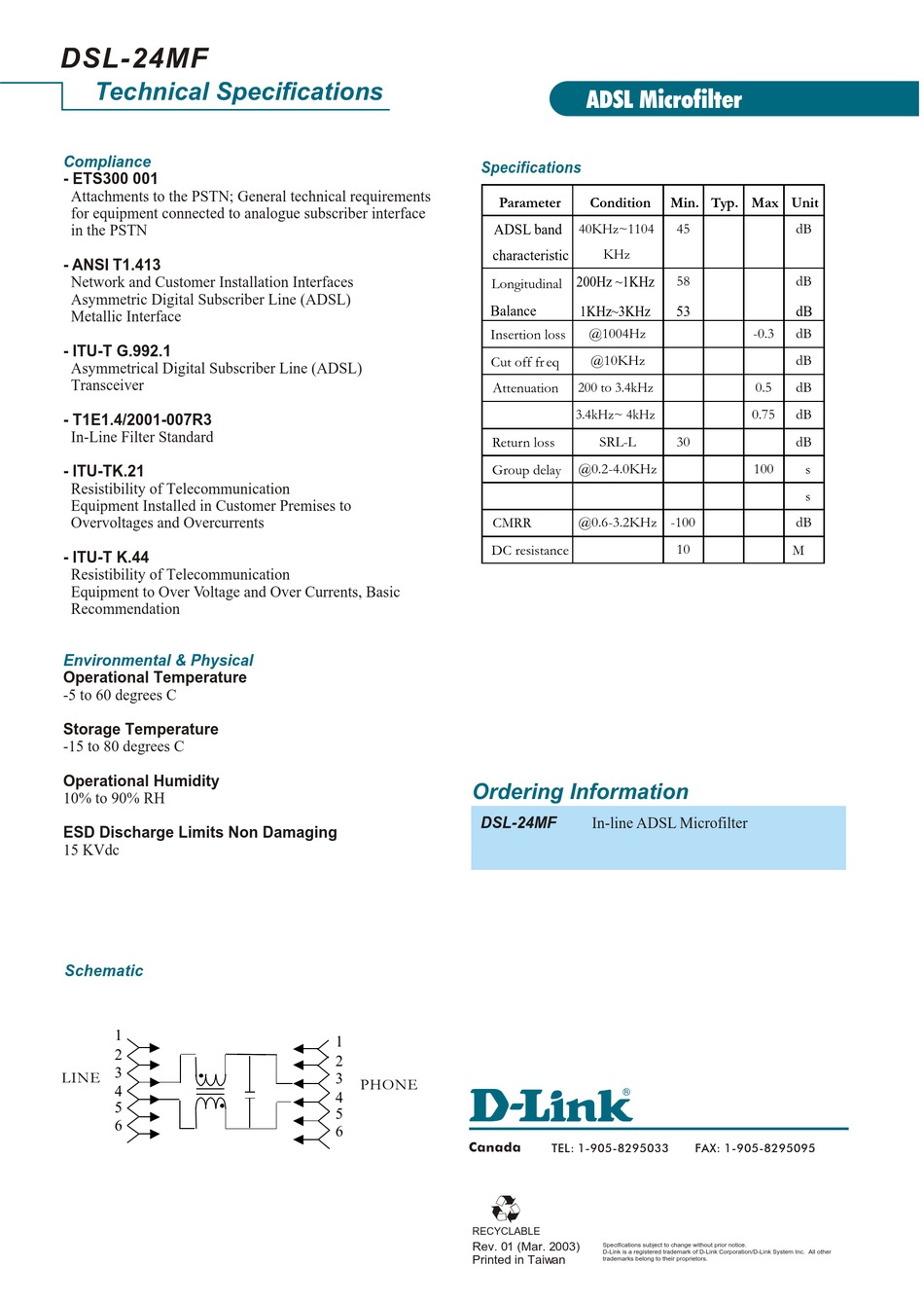

DSL-24MF
Technical Specifications
Compliance
- ETS300 001
Attachments to the PSTN; General technical requirements
for equipment connected to analogue subscriber interface
in the PSTN
- ANSI T1.413
Network and Customer Installation Interfaces
Asymmetric Digital Subscriber Line (ADSL)
Metallic Interface
- ITU-T G.992.1
Asymmetrical Digital Subscriber Line (ADSL)
Transceiver
- T1E1.4/2001-007R3
In-Line Filter Standard
- ITU-TK.21
Resistibility of Telecommunication
Equipment Installed in Customer Premises to
Overvoltages and Overcurrents
- ITU-T K.44
Resistibility of Telecommunication
Equipment to Over Voltage and Over Currents, Basic
Recommendation
Environmental & Physical
Operational Temperature
-5 to 60 degrees C
Storage Temperature
-15 to 80 degrees C
Operational Humidity
10% to 90% RH
ESD Discharge Limits Non Damaging
15 KVdc
Schematic
1
2
3
LINE
4
5
6
Specifications
Parameter
ADSL band
characteristic
Longitudinal
Balance
Insertion loss
Cut off fr eq .
Attenuation
Return loss
Group delay
CMRR
DC resistance
Ordering Information
DSL-24MF
1
2
3
PHONE
4
5
6
Canada
RECYCLABLE
Rev. 01 (Mar. 2003)
Printed in Taiwan
ADSL Microfilter
Condition
Min. Typ. Max Unit
40KHz~1104
45
KHz
58
200Hz ~1KHz
1KHz~3KHz
53
@1004Hz
@10KHz
200 to 3.4kHz
3.4kHz~ 4kHz
SRL-L
30
@0.2-4.0KHz
@0.6-3.2KHz -100
10
In-line ADSL Microfilter
TEL: 1-905-8295033
FAX: 1-905-8295095
Specifications subject to change without prior notice.
