  • Page 1 AirLink Raven X User Guide 20070914 Rev 2.0...
  • Page 3 Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless AirLink Raven X may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless AirLink Raven X while in control of a vehicle.
  • Page 4: Contact Information

    ® Sierra Wireless. Watcher is a trademark of Sierra Wireless, registered in the European Community. AirLink™ and AceWare™ are trademarks of Sierra Wireless. Sierra Wireless, the Sierra Wireless logo, the red wave design, and the red-tipped antenna are trademarks of Sierra Wireless.
  • Page 5: Revision History

    Preface Post: Sierra Wireless America 39677 Eureka Drive Newark, CA 94560 Sierra Wireless 13811 Wireless Way Richmond, BC Canada V6V 3A4 Fax: 1-510-624-4299 1-604-231-1109 www.sierrawireless.com Web: Consult our website for up-to-date product descriptions, documentation, application notes, firmware upgrades, troubleshooting tips, and press releases: www.sierrawireless.com Revision History...
  • Page 6 Raven X 1x/EV-DO 20070914...
  • Page 7: Table Of Contents

    Contents Introduction to the Raven X ........1 ACEmanager .
  • Page 8 Raven X 1x/EV-DO Specifications ..........11 Features and Benefits.
  • Page 9: Introduction To The Raven X

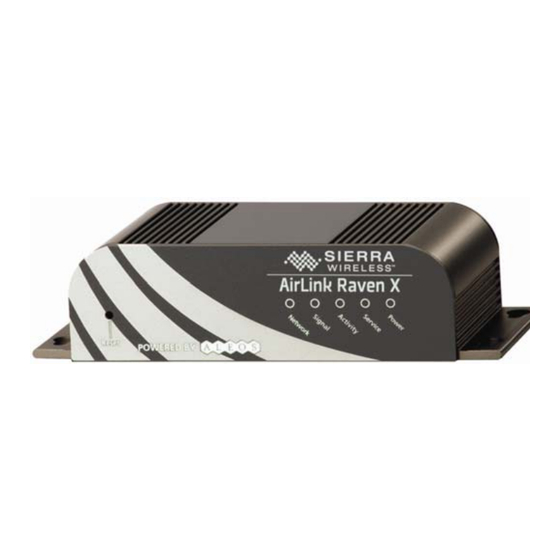

    POS, vending/kiosks, multimedia and remote monitoring and control. Figure 1-1: Sierra Wireless AirLink Raven X ALEOS, the embedded core technology of the Sierra Wireless AirLink products simplifies installation, operation and maintenance of any solution, and provides an always-on, always-aware intelligent connection for mission-critical applications. ALEOS enables: •...
  • Page 10: Acemanager

    ACEmanager), Windows-based applications (ACEview and Modem Doctor), and a web-hosted application (ACEnet). You can download the applications and their user guides from the Sierra Wireless AirLink Solutions web site: http:// www.sierrawireless.com/support. Contact your dealer or Sierra Wireless representative for any further information.
  • Page 11: Simplified Deployment

    Simplified Deployment ACEmanager provides the ability to remotely set up and configure your Sierra Wireless AirLink products. Remote device setup and configuration reduces the deployment timeline of your wireless solution and provides a quicker path to ROI. Templates allow you to easily configure devices in your fleet with identical settings, ensuring a simple, accurate deployment.
  • Page 12: Modem Doctor

    Raven X 1x/EV-DO Figure 1-5: ACEview Modem Doctor Modem Doctor and Modem Doctor USB is a troubleshooting and diagnostics utility. This utility will allow you to get a log file of the Raven X activity which you can then send to Sierra Wireless support or erase the current configuration completely.
  • Page 13: Connecting To Your Cellular Network

    Introduction to the Raven X Note: If you erase the fatory defaults will be restored. USBnet is the factory default port. Figure 1-7: Modem Doctor: USB connection Connecting to your cellular Network The Raven X uses your cellular Network as an ISP (Internet Service Provider) to connect you to the Internet.
  • Page 14: Dynamic Vs. Static Ip Addresses

    Raven X 1x/EV-DO Dynamic vs. Static IP Addresses There are two types of addresses on networks: dynamic and static. • Dynamic addresses are assigned on a “need to have” basis. Your Raven X might not always receive the same address each time it connects with your cellular Network.
  • Page 15: Security

    Introduction to the Raven X Security 1x data transmissions are highly secure. Originally developed based upon the “spread spectrum” pioneered by the US Department of Defense, security in CDMA technologies is obtained by spreading the digital information contained in a particular signal of interest over multiple coded paths, over a much greater bandwidth than the original signal.
  • Page 16: Gre

    This is achieved by using authentication algorithms and their outputs. The IPSec architecture model includes the Sierra Wireless AirLink gateway as a remote gateway at one end communicating, through a VPN tunnel, with a VPN gateway at the other end.
  • Page 17: Software

    ACEview User Guide This document explains the use of this utility tools which is used to view and monitor the connection state of a Sierra Wireless AirLink device. ACEnet User Guide This document explains the use of ACEnet services for remote management of Sierra Wireless AirLink device.
  • Page 18 Raven X 1x/EV-DO 20070914...
  • Page 19: Specifications

    2: Specifications • Interface Port Pin- Outs • Power Connector Features and Benefits • Embedded Intelligence • Low Power Consumption • High-Speed Processor • High-Speed 2-way Data • Ethernet and Serial Port • Machine Protocols • Persistent Network Connectivity • Remote Management and Configuration •...
  • Page 20: Standards/Approvals

    Raven X 1x/EV-DO Standards/Approvals • Carrier specific approvals • • Industry Canada • This apparatus is suitable for use in Class I, Division 2, Groups A, B, C, D or unclassified or non-hazardous locations. Warning: Explosion Hazard - Substitution of any components may impair suitability for Class I, Division 2.
  • Page 21: Interface Port Pin-Outs

    Specifications Interface Port Pin-Outs Serial Port < - > GND (Ground) Unused < - DTR Data Terminal Ready) < - CTS (Clear to Send) < - Rx (Receive) - > RTS (Request to Send) - > Tx (Transmit) < - DSR (Data to Send) - >...
  • Page 22 Raven X 1x/EV-DO 20070914...
