R-231NW

CHAPTER 5. GENERAL INFORMATION

[1] GROUNDING INSTRUCTIONS

This oven is equipped with a three prong grounding plug. It must be plugged into a wall receptacle that is properly installed and
grounded in accordance with the National Electrical Code and local codes and ordinances.
In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric
current.
WARNING: Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
The electrical requirements are a 115 -120 volt 60 Hz, AC only, 15 or 20 amp. fused electrical supply.
It is recommended that a separate circuit serving only this appliance be provided. When
installing this appliance, observe all applicable codes and ordinances. A short power-
supply cord is provided to reduce risks of becoming entangled in or tripping over a longer
cord. Where a twopronged wall-receptacle is encountered, it is the personal responsibility
and obligation of the customer to contact a qualifi ed electrician and have it replaced with
a properly grounded threepronged wall receptacle or have a grounding adapter properly
grounded and polarized. If the extension cord must be used, it should be a 3-wire, 15 amp.
or higher rated cord. Do not drape over a countertop or table where it can be pulled on by
children or tripped over accidentally.
CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE ROUND
GROUNDING PRONG FROM THIS PLUG.

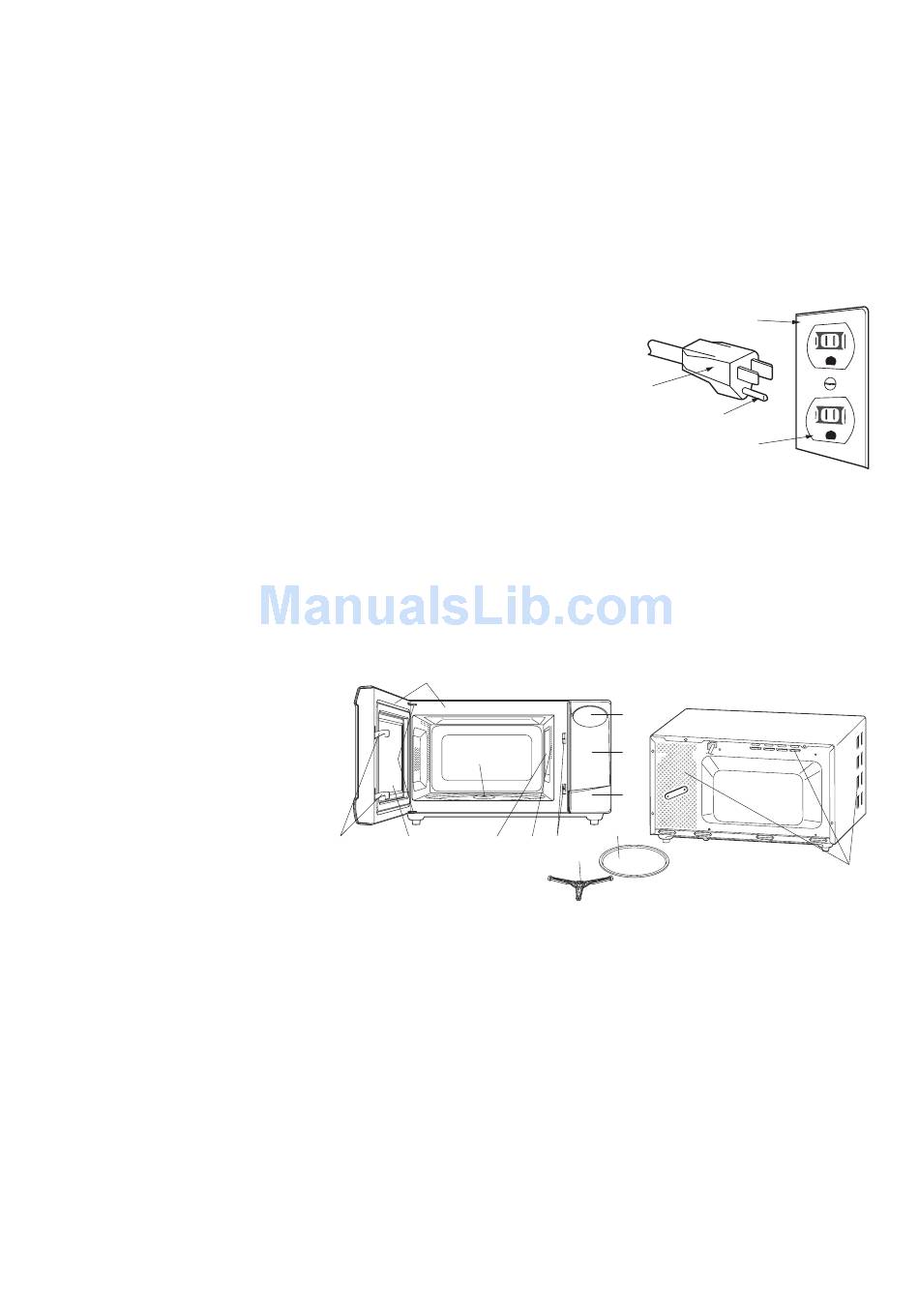

[2] OVEN DIAGRAM

1. OVEN
1. Door open button
Push to open door.
2. Oven door with see-through window
3. Safety door latches
The oven will not operate unless the door is
securely closed.
4. Door hinges
5. Door seals and sealing surfaces
6. Turntable motor shaft
7. Removable turntable support
Carefully place the turntable support in the
center of the oven fl oor.
8. Removable turntable
Place the turntable securely on the turntable support. The turntable will rotate clockwise or counterclockwise. Only remove for
cleaning.
9. Ventilation openings (Rear)
10. Oven light
It will light when oven is operating.
11. Waveguide cover: DO NOT REMOVE.
12. Auto-Touch control panel
13. Time display: 99 minutes, 99 seconds
5
4 6
3 2 11
5 - 1
Grounded
Receptacle Box
3-Pronged
Plug
Grounding Pin
3-Pronged Receptacle
13
12
1
8
10
3
7
9
