Summary of Contents for Acesonic PK-1130 Wildcat

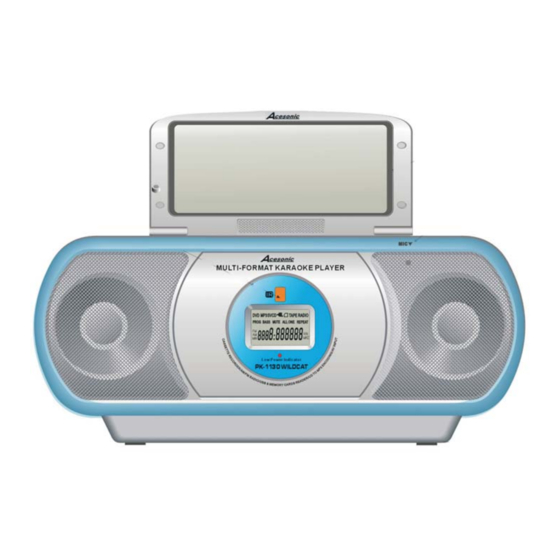

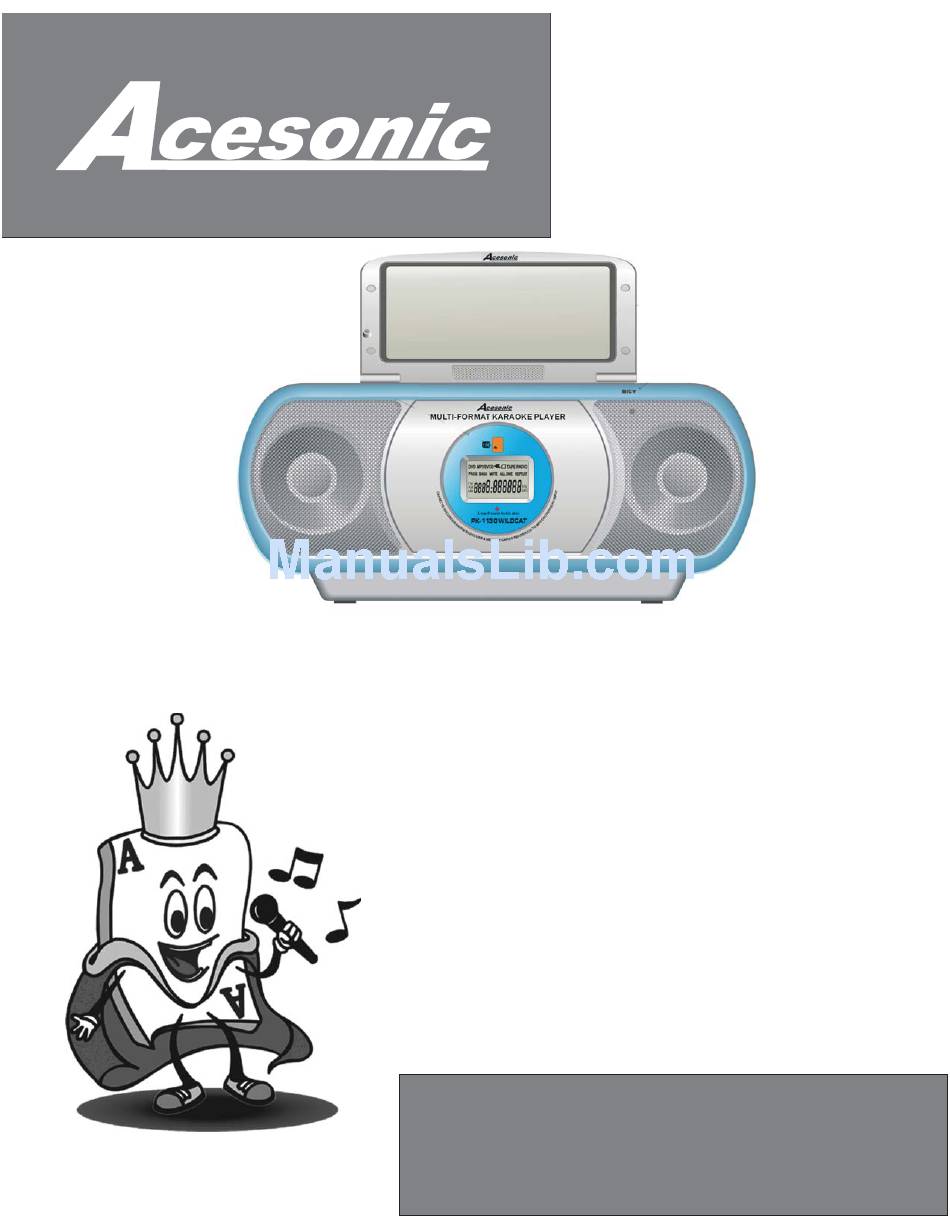

- Page 1 100 Watt 7” LCD Portable Multi Format Karaoke Player With Mp3 Encoding & TV Turner USER’S MANUAL www.acesonic.com CAUTION: To assure this player will work at its best, please read this user’s manual carefully before operation and keep for future reference.
- Page 2 Warnings, Cautions and Others Warnings, Cautions and Others Mises en garde, precautions et indications diverses Mises en garde, precautions et indications diverses For Canada/Pour le Canada For Canada/Pour le Canada CAUTION CAUTION: TO PREVENT ELECTRIC SHOCK, CAUTION: TO PREVENT ELECTRIC SHOCK, RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN...
- Page 3 Important Safety instructions Important Safety instructions Overloading Overloading Do not overload wall outlets, extension cords, or integral Do not overload wall outlets, extension cords, or integral Read Read These Instructions. These Instructions. convenience receptacles as this can result in a risk of fire convenience receptacles as this can result in a risk of fire or electric shock.
-
Page 4: Table Of Contents
PK 1130 cesonic Table of Contents Before Operation Included Accessories Please check that you have all of the following Playable Media........2 accessories supplied to you. If anything is missing, Handling and Cleaning......2 please contact your dealer immediately. Front Panel Functions......3 *Remote Controller Back Panel Functions......3 *One MP-702 Wired Microphone with 1/4”... -
Page 5: Before Operation
Before Operation Playable Media Handling and Cleaning of Discs This unit supports the following disc formats: *DVD, MPEG-4, Video CD, Video CD 2.0 Handling *CD+Graphics, Audio CD, HDCD, DTS CDs *At anytime, when handling discs, always hold them from *MP3, WMA, JPEG, Kodak, MPEG their edges and/or by the circle in the center. -
Page 6: Front Panel Functions
FRONT PANEL FUNCTIONS AND OPERATION: 1.TFT Screen 2.MS/SD/MMC Card Reader 3.Karaoke Key Changer 4.USB Port 5.Fast Rewind Button/Up Key(DVD Mode) 6.Play/Pause button 7.Stop Button/Left Key(DVD Mode) 8.Fast Forward/Next Button/Down Key(DVD) 9.Left/Right Audio Channel Switch 10.AM/FM Antenna AV /TV BA ND 11.LCD/TV/AUX IN Tuner Setup Button CH + 12.Input Selection(DVD/AUX(Video only)/TV) -
Page 7: Remote Functions
Remote Functions 1 DVD/RADIO/CASSETTE/AUX - Switch between the different audio playing mode. → → → (DVD TUNE TAPE IN). DVD/RADIO/CAST/AUX 2)TFT ON/OFF - Turn the LCD screen on and off. 3)NUMBER PAD - Used to input tracks or for programming purpose. 4)CH+ - Used to go to next channel in TV mode and to navigate while in LCD/TV setup. -
Page 8: Remote Functions
Remote Functions 26)PROGRAM - Used to program songs in the DVD/RADIO/CAST/AUX order that you wanted it to be played. 27)OSD - Display the current status of the track (track number and time played). 28)REPEAT - To switch between different type →... -
Page 9: Basic Operation
To Stop Playback Completely Basic Operation Press the STOP button ( ) twice. Now when you press PLAY button ,it will begin from the beginning of the disc. Also, if you eject the disc, the playback Basic Playback completely stops and ejects the disc. Loading A Disc To Advance Or Reverse Playback While Viewing Lift up the LCD screen using your finger. -
Page 10: Usb Port And Operation
3. The first song on your memory card should play Basic Operation automatically. You can stop this playback and choose another song to be play. *NOTE: Machine will switch to the USB mode first then USB port and operation the card memory mode if both devices are connected at You can play your own video and audio files(supports the same time. -
Page 11: More Basic Operation
Basic Operation Fast Forward/Fast Backward: 6)While it is playing, push the STOP/EJ button Press will search backward rapidly and press will to stop playback and push it again to open search forward rapidly. The max rate can be 20 times. the cassette tape door. -
Page 12: Basic Operation-System Setup
Basic Operation-System Setup 4. Select a desired Video Output: Select an Video Output according to your equipment setup. Turning on/off the player Press POWER button on the front panel of the unit to turn on the player. There is no POWER button on the remote control. -
Page 13: Language Setup
3. Menu Language : Press SETUP then select 8.Default: Change back to manufacture setting. LANGUAGE SETUP and go to the MENU LANG. Move to the language of your choice and press ENTER. 9 Resume Basic Operation-Audio Setup 1. Select a desired Audio Output: Select an Audio Output according to your audio connection. -
Page 14: Speaker Setup
4. Rear Delay: You can adjust the rear speaker delay 3. Hue Set the Hue of the video +color to increase red according the position of your rear speaker. color, -color to increase green color 4.Saturation- Set the degree of the saturation of the video. 5. -
Page 15: Advanced Operations
Programing Tracks Advanced Operations By programing tracks, you can play up to 99 tracks in any order. You may also repeat tracks. 1. To program track Press PROGRAM. Playing From A Specific Position Using the NUMERIC KEYS 0-9 , enter the desired track numbe Locating a desired scene from the DVD menu 3. -
Page 16: Language & Sound Adjustment
Advanced Operations Audio & Video Playback How to adjust Language And Sound. Audio and Video File Playback This unit can play MP3, JPEG, MPEG, MPEG-4 and WMA Selecting Subtitle Language files that are recorded onto CD-R/RW, DVD±R, and Some DVD Video discs contain more than one subtitle DVD±RW. - Page 17 Sometimes, the troubles lie within another component. Remember to try inspecting other component and electrical appliances in use. If the trouble cannot be rectified even after exercising the steps listed below, call our Acesonic service center 626-820-0670 to inquire about repairs.
-
Page 18: Troubleshooting
Trouble Shooting Karaoke Operations Karaoke Operations 11. There is no sound from the 11. There is no sound from the *Check if Microphone plug into PK-1130 correctly. *Check if Microphone plug into PK-1130 correctly. microphone. microphone. *Check Mic. Volume knobs on the PK-1130. *Check Mic. -
Page 19: Specification & Contact Info
Professional Karaoke Sound Effect Power AC 110V / DC 12V(D shellx8) Tape Speed:4.76CM/S +-3% CD S/N Ratio: >60dB Frequency Range: FM 88-108MHz AM:530-1600KHZ NTSC/PAL Worldwide Compatible Player Dimension:375x250x160mm Shipping Weight: 4kgs Designed In U.S.A Acesonic Corp. City of Industry CA,U.S Sale:(626)820-0608 Technicals:(626)820-0605 www.acesonic.com... -
Page 20: Warranty Information
TO VALIDATE YOUR WARRANTY: Fill out the attached warranty card, be sure to include the model and serial number of the unit since this is how warranties are tracked. If your Acesonic product was purchased in the U.S. mail the completed... - Page 21 Acesonic does not, however, warrant its products against any and all defects: 1) arising out of material or workmanship not provided or furnished by Acesonic, or 2) resulting from abnormal use of the product or use in violation of instructions, or 3) in products repaired or serviced by other than authorized Acesonic repair facilities, or 4) in products with removed or defaced serial numbers, or 5) in components or parts or products expressly warranted by another manufacturer.
