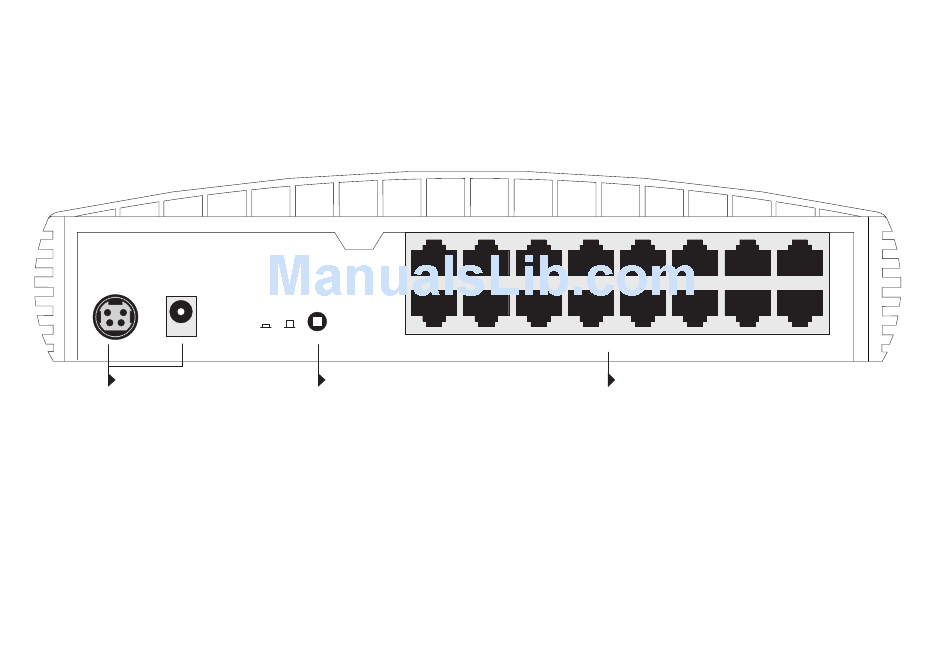

All Units—Rear
Power Power
Switch 16 Switch 4/8
Power Adapter socket
Only use the power adapter that is
supplied with this OfficeConnect
Switch. Do not use any other adapter.
Note that the power adapter and
socket is different for the Switch 16.
8X
16
Uplink/Normal
Uplink/Normal switch
Affects the operation of the highest numbered port
(port 4 on the Switch 4, port 8 on the Switch 8,
port 16 on the Switch 16). For connecting the port
to another unit (such as a hub or switch), set to
Uplink (in), otherwise set to Normal (out). Refer to
the "Connecting OfficeConnect Hubs to Your
Switch" section.
10/100BASE-TX
4, 8 or 16 10/100BASE-TX ports
Use suitable TP cable with RJ-45 connectors.
You can connect the OfficeConnect Switch to
any workstation or OfficeConnect hub that has
a 10BASE-T, 100BASE-TX or 10/100BASE-TX
port. Each port is capable of auto-negotiating
for 10Mbps or 100Mbps operation.
8
1X
9X
