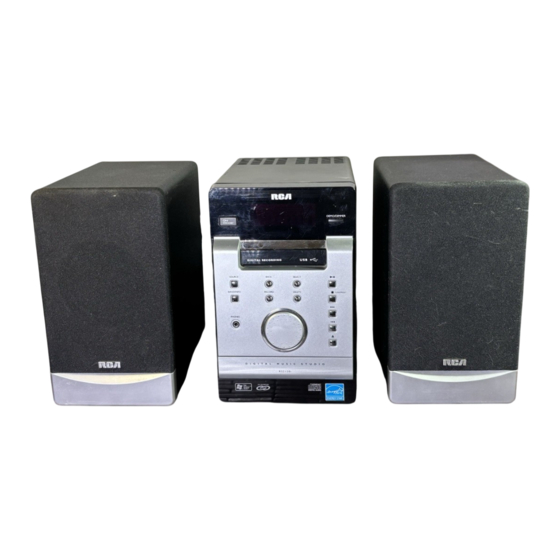

RCA RS2120I - Micro System Quick Start Manual

Quick start - rs2120i
Hide thumbs Also See for RS2120I - Micro System:

Advertisement

Quick Links

RS2120i QSG ALL
28/3/07
12:13 PM
Page 1
IMPORTADOR
Comercializadora Thomson de México, S.A. de C.V.
Álvaro Obregón No. 151. Piso 13.
Col. Roma. Delegación Cuauhtémoc
C.P. 06700. México, D.F.
Telefono: 52-55-11-020360
RFC: CTM-980723-KS5
EXPORTER
Thomson Inc.
P.O. Box 1976
Indianapolis, IN 46206-1976
© 2007 Thomson Inc.
Trademark(s) ® Registered
Marca(s) ® Registrada(s)
Marque(s) ® Deposée(s)
www.rcaaudiovideo.com
Printed In China / Impreso en China
56437390 (EN/F/E)
Setting Up Your Unit
Main Speakers Connection
RS2120i
Each speaker has a black/red wire. When
connecting the speakers, match the black wires
to the black jacks and the red wires to the red
jacks on the main unit.
Speaker Wire Connection
Quick Start Guide
Guide de démarrage rapide
Push Speaker terminal tab
down to insert wire.
NOTE: Ensure the insulation is completely removed from the
of the speaker wires at all connection points.
Guía de Inicio Rápido
AM/FM Antenna Connection
Connect the AM loop antenna to the back of
the unit. Adjust the position of the antenna for
better reception.
Back View
4
Connecting iPod Dock
• Connect the cable from the iPod dock to the
iPod dock socket at the back of the unit.
Ensure the arrow on the cable aligns with the
arrow on the back panel.
• Install the correct adapter to the dock. See
page 3 of the User Manual for a list of all
supported models and the suitable
adaptor plate.
English
iPod Compatibility
Made for:
• iPod with video (30GB, 60GB, 80GB)
5th/5.5th generations
• iPod photo (20GB U2 Special Edition, 30GB
U2 Special Edition, 40GB, 60GB)
4th generation
• iPod (10GB, 15GB, 20GB, 20GB U2 Special
Edition, 30GB, 40GB) 3rd & 4th generations
• iPod nano (1GB, 2GB, 4GB, 8GB)
1st & 2nd generations
• iPod mini (4GB, 6GB)
1st & 2nd generations
Release tab to lock wire in
the terminal.
iPod is a trademark of Apple Computer, Inc.,
ends
registered in the U.S. and other countries.
USB Drive Connection
• Lift the cover on the front panel. Connect the
USB drive to the main unit's USB Jack on the
front panel.
CD
• Avoid disconnecting
when USB is playing
or recording.
1. AUX IN.
1
2. AM loop antenna jack.
3. FM pigtail antenna.
Setting the Clock and Timer
2
4. Main speaker jacks.
• Press and hold CLOCK on the remote control
3
5. iPod dock socket.
to set the clock.
• Press
or
to set the time. Press CLOCK
to advance from hour to minute and to save
settings.
• Press and hold TIMER on the remote control
5
to set the timer.
• Press
or
to set the time for timer on
and off. Press TIMER to advance from hour
to minute, and to select source. Press
or
to select DISC/USB/iPod/REC TUNER/
TUNER. If REC TUNER is selected, press
to select the preset station. Press TIMER
to set volume and to save setting.
• You can press TIMER to activate or
deactivate the timer anytime.
Playing Music
Selecting Source
• Press SOURCE to select among CD player, Tuner, iPod, USB and AUX.
In CD Player/USB Mode
• Press
to start and pause playback.
• Press
to stop playback.
• Press
or
to skip to the previous or next track.
In iPod Mode
• Press
to start and pause playback.
• Press
or
to skip to the previous or next track.
In Tuner mode
• Press BAND/INFO to select between FM/AM radio band.
• Press
or
to adjust frequencies. Press and hold
or
to scan frequencies.
• Press and hold BAND/INFO of the main unit or BAND on the remote for two seconds for auto
preset programming in FM band. This will erase all preset channels and re-program all of them.
File Navigation in CD/USB Mode
1. Make sure the unit is in stop mode. Press
if necessary.
2. Press SELECT on the main unit or
on the remote control to enter navigation mode.
3. Turn VOLUME CONTROL knob on the main unit or press
or
on the remote control to
select items on a list.
4. Press SELECT on the main unit or
on the remote control to enter the highlighted folder or
to play the highlighted song.
5. Press BACK on the main unit or
on the remote control to go to the previous
navigation menu.
File Navigation in iPod Mode
• Press
or
on the remote control to select items on a list.
• Press
on the remote control to confirm your selection.
or
• Press
/MENU on the remote control to go to the pervious navigation menu.
Sound Control
• Rotate VOLUME CONTROL knob on the main unit or press VOL
or
to adjust volume.
• Press EQ to select among FLAT, JAZZ, CLASSIC, ROCK and CUSTOM
• Press B.BOOST on the remote control to turn on/off bass boost.
on the remote control
