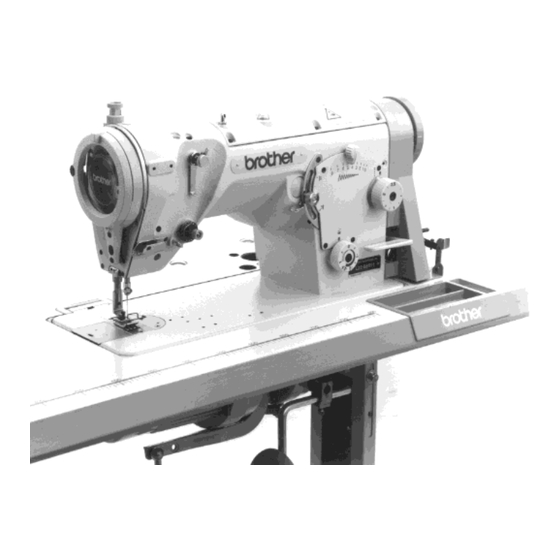

Single needle zigzag lock stitcher
Hide thumbs Also See for ZM-850A:
1
2
3
4
5

Advertisement

Table of Contents

See also: Instruction Manual
ZM-850A
ZM-851A
Single Needle Zigzag Lock Stitcher

Specifications

Zigzag stitch
Zigzag width
ZM-850A
5 mm
ZM-850A
Zigzag width
8 mm
ZM-851A
Max. stitch lenght
Thread take up
Presser pressure
Needle type
Hight of feed dog
Arm pocket area
ZM-850A-00□ □ □ □
Plain zigzag
(wide)
General (foundation)
1
Max. stitch length: 2.5 mm
General (long stitch)
3
Max. stitch length: 5mm
ZM-851A-00□ □ □ □
3-step zigzag
General (foundation)
1
Max. stitch length: 2.5 mm
1 - needle
Bottom feed
*
*
*
ZM-850A - 1, ZM-851A – 1
(Foundation)
2.5 mm
Use
Max. zigzag width
5 mm
8 mm
8 mm
Use
Max. zigzag width
8 mm
2002.4
Height of
Presser foot
*
Manual 6 mm
*
Knee 10 mm
*
Rotary
20 – 60 N
SCHMETS SY1965 Nm70(#10)
1 mm
W269 × D178 mm
Max. sewing
Needle stroke
speed
33.3 mm
5,000 rpm
ZM-850A - 3
(Long stitch)
5 mm
ZM-850A, ZM-851A 1/5
