Connections
02

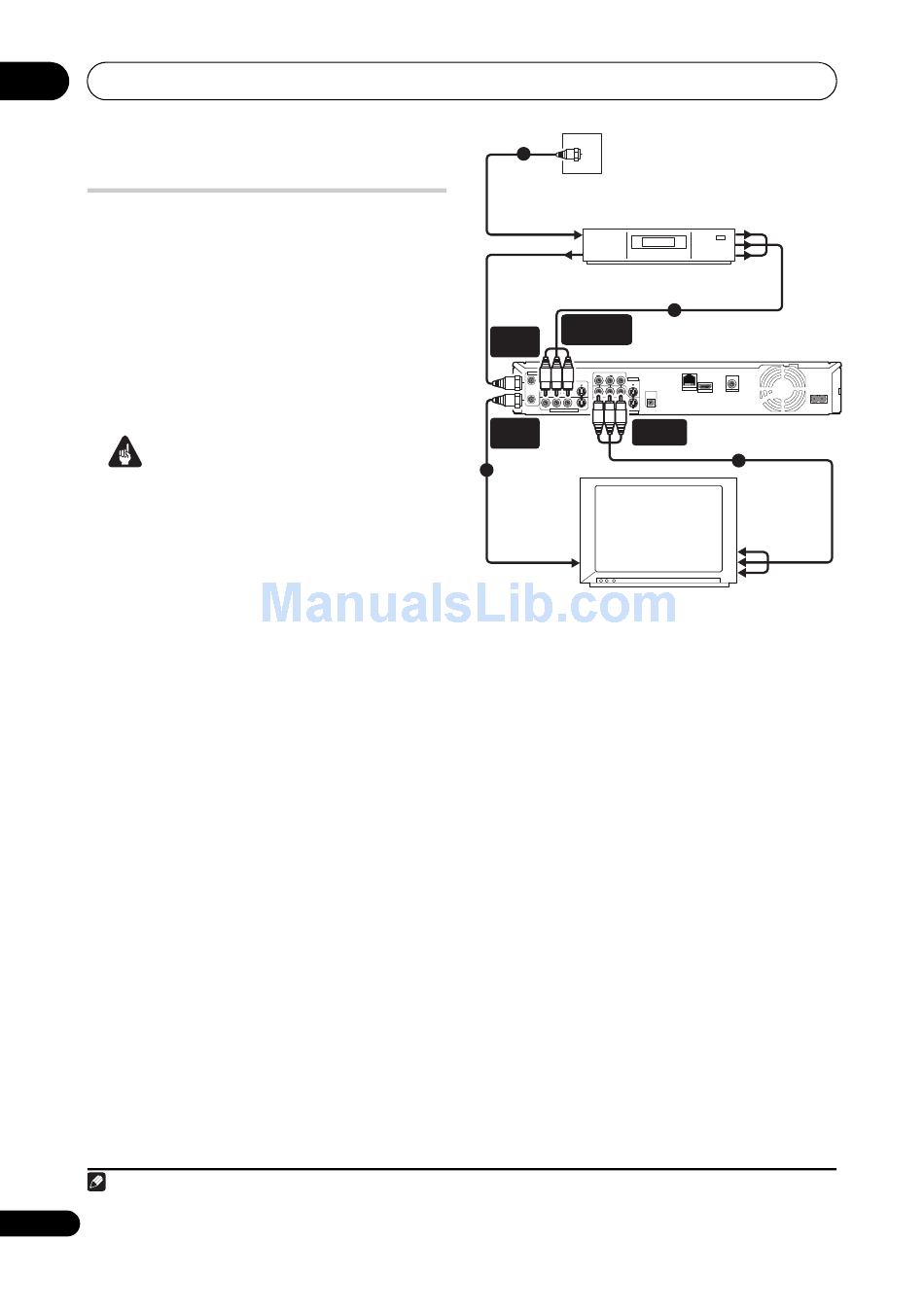

Connecting to a cable box or
satellite receiver (2)
If many or all the channels you receive by
cable or satellite are scrambled, we
recommend using this setup.
Using the setup on this page you can:
• Record any channel by selecting it on
the cable box/satellite receiver.
• Record using the Auto Start Recording
feature (see Automatic recording from a
satellite tuner on page 47).
Important
• Do not connect this recorder 'through'
your VCR, satellite receiver or cable box.
Always connect each component
directly to your TV or AV amp/receiver.
Note
1 • The setup on this page does not allow you to watch one channel and record another.
• The diagram shows standard video connections, but you can alternatively use the S-video or component video
20
connections if they're available.
En
To antenna input
1
From antenna
output
ANTENNA
IN (RF IN)
ANTENNA
1
To antenna input
1
This enables you to watch and record TV
channels.
2
OUTPUT jacks (1 or 2) on this recorder to
a set of audio/video inputs on your TV
using a set of A/V cables (as supplied).
This enables you to watch discs.
3
your cable box/satellite receiver to the
INPUT 1 jacks on this recorder using a set
of A/V cables.
This enables you to record scrambled TV
channels.
1
Antenna/cable TV
wall outlet
Cable box/
Satellite receiver
3
INPUT 1/AUTO
START REC
ANTENNA
AUDIO VIDEO
R L
IN
OUTPUT 2
INPUT 3
S-VIDEO S-VIDEO
AUDIO VIDEO
R L
CONTROL
IN
OUT
Y P B P
INPUT 1/AUTO START REC R
COMPONENT VIDEO OUT OUTPUT 1
OUTPUT 1
OUT
TV
Connect RF antenna cables as shown.
Connect the AUDIO and VIDEO
Connect the audio/video output of
From audio/
video output
DVR-660H-K
COAXIAL
AC IN
LAN(10/100)
DIGITAL OUT
HDMI OUT
2
To audio/video
input
