Using other types of video
output
This recorder has standard (composite), S-
video and component video outputs. The
main difference between them is the quality
of the picture. S-video delivers a better
picture than composite video, while
component video gives better picture quality
still. The variety of outputs also gives you the
flexibility of connecting your particular
equipment using the best connection type
available.
To component
video input
2
ANTENNA
AUDIO
R
IN
INPUT 3
S-VIDEO
AUDIO VIDEO
R L
OUT
Y
INPUT 1/AUTO START REC
COMPONENT VIDEO OUT
COMPONENT
VIDEO OUT
18
En
To S-video
input
TV
S-VIDEO
OUTPUT
DVR-660H-K
VIDEO
L
COAXIAL
OUTPUT 2
S-VIDEO
LAN(10/100)
HDMI OUT DIGITAL OUT
CONTROL
IN
P P
B R
OUTPUT 1

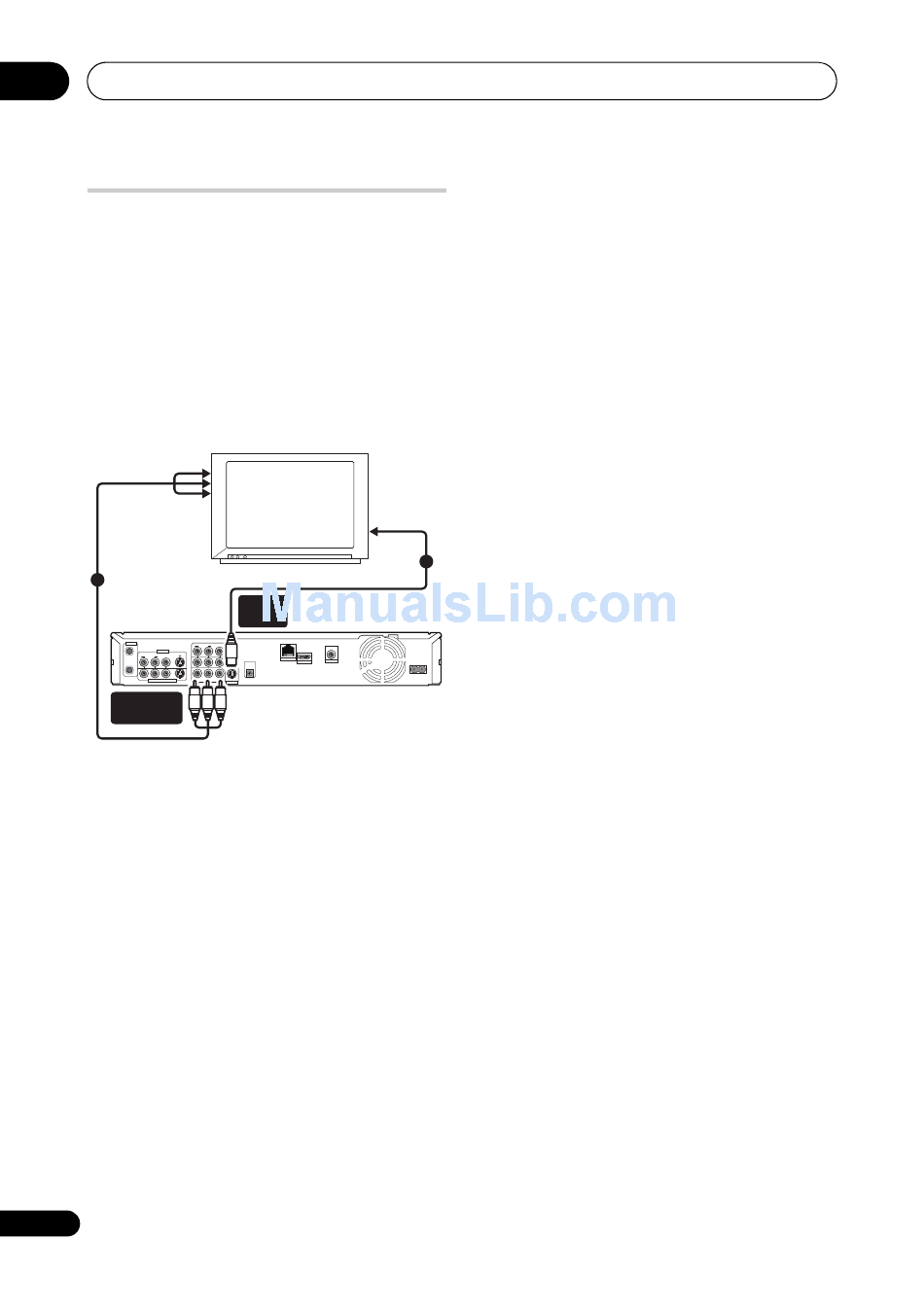

1 Connecting using an S-video output
S-video carries the picture as separate
colour and luminance (brightness) signals.
There are two S-video outputs for connection
to TVs, monitors, VCRs or other equipment.
• Use an S-video cable (not supplied) to
connect an S-VIDEO OUTPUT (1 or 2) to
an S-video input on your TV, monitor (or
other equipment).
2 Connecting using the component
video output
Component video carries the picture as two
separate colour signals, plus a luminance
(brightness) signal.
See also Component Video Out on page 114
for how to set up the component video
output for use with a progressive scan-
compatible TV.
1
• Use a component video cable (not
supplied) to connect the COMPONENT
VIDEO OUT jacks to a component video
input on your TV, monitor (or other
equipment).
