Summary of Contents for Moffat GSC5050W

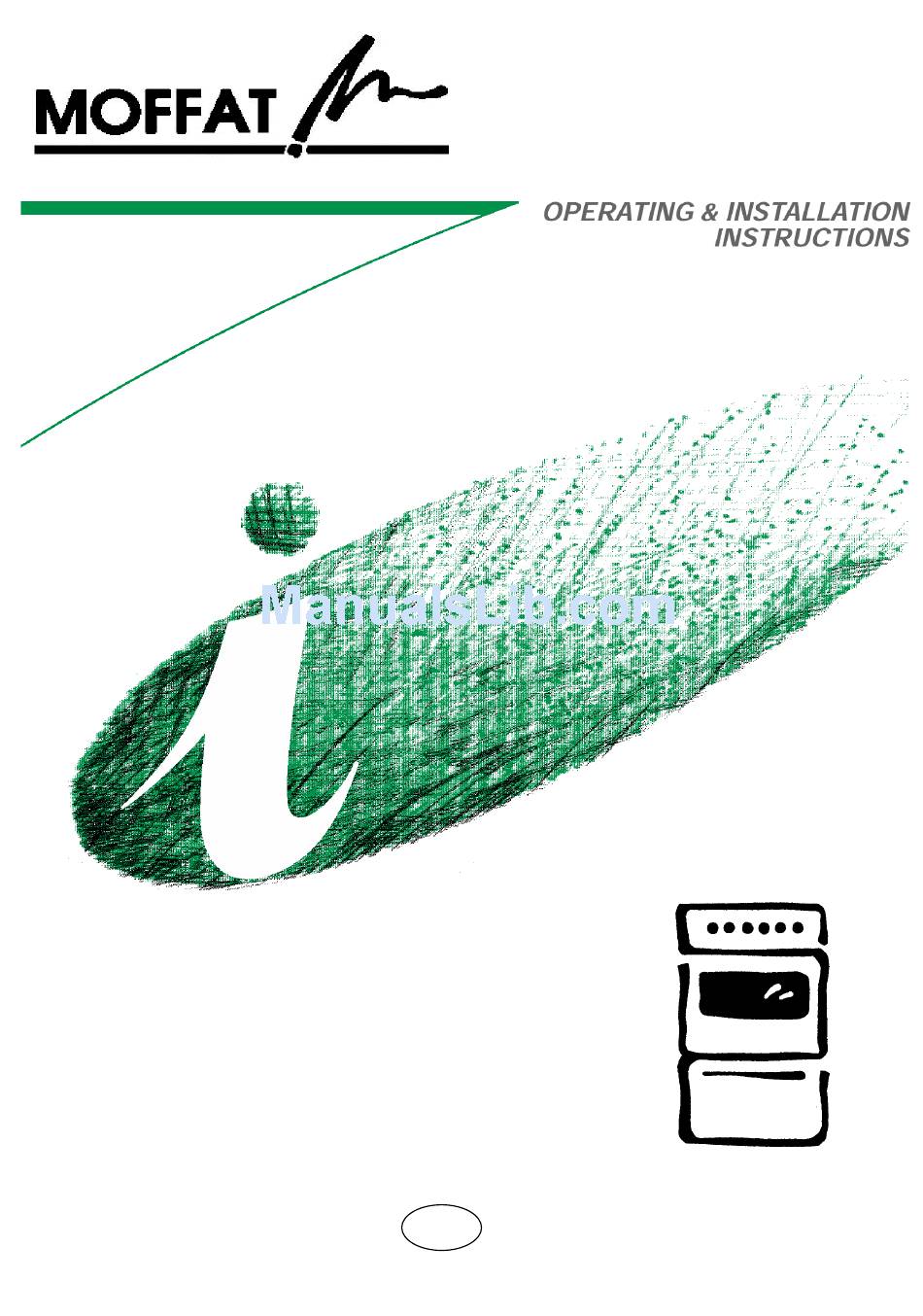

- Page 1 GAS COOKER GSC 5050 W GSC 5050 WL...
-
Page 3: Table Of Contents
Instructions for the user Important Safety Information Description of the appliance Technical Features Using the appliance Using the oven Hints & Tips Using the Grill Using the Hob Maintenance and Cleaning Something Not Working Service & Spare Parts Customer Care Guarantee conditions The symbols below will guide you when reading CONTENTS... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 08705 950950. Installation • This cooker must be installed by qualified personnel, according manufacturer’s instructions and to the relevant British Standards. -
Page 5: Control Panel
DESCRIPTION OF THE APPLIANCE Control panel oven OVEN/GRILL KNOB Cooker lid Control panel Handle door Oven door with glass 1. Front left burner (semi-rapid) 2. Back left burner (semi-rapid) 3. Back right burner (auxiliary) 4. Front right burner (rapid) Storage compartment Adjustable small feet... -
Page 6: Technical Features
Free standing Cover Pan support Front right Back right Front left Back left Oven Oven Oven power Grill Grill power Oven grid Accessories Roasting tray Roasting grid Dimensions Height with the lid closed Height to the hob Width Depth This appliance complies following EEC Directives :... -
Page 7: Using The Appliance
Before the First Use of the Cooker Remove all packaging both inside and outside of the cooker, before using it. Before first use, the oven should be heated without food. During unpleasant odour may be emitted. This is quite normal. Lift the lid Remove the oven accessories and ensure... -
Page 8: Cooking In The Oven
The oven can be used for traditional cooking, or for grilling, but not both functions simultaneously. The symbol on the knob corresponds to the symbol on the control panel. “9” Maximum “1” Minimum “Grill” Grill function (heat come from the top burner only. -
Page 9: Hints & Tips
Condensation and steam When food is heated it produces steam in the same way as a boiling kettle. The oven vents allow some of this steam to escape. However, always stand back from the oven when opening the oven door to allow any build up of steam or heat to release. -
Page 10: Using The Grill
Using the Grill Grill burner ignition 1. Open the oven door. 2. Hold a flame to the gas grill burner holes (see fig.). 3. Press the oven/grill function control knob, then turn it to the “grill symbol”. Upon ignition, keep the knob pressed for approximately 10 seconds (until the safety valve automatically keeps the grill burner lit). -
Page 11: Using The Hob
Using the Hob The Hob Burners The symbol on the knob corresponds to a symbol on the control panel (See description of appliance) Each burner has a safety device. In case the flame dies out the safety device stops the gas supply. Maximum level Minimum level Use the maximum level for boiling and the... -
Page 12: Accessories Delivered With The Appliance
Selecting the Correct burner Above every knob there is a symbol for the corresponding burner. For good cooking results, always chose pans, which properly fit to the diameter of the burner used (see figs). Chose thick, flat bottom pots. We recommend the flame is lowered as soon as the liquid starts boiling. -
Page 13: Maintenance And Cleaning
MAINTENANCE AND CLEANING The oven should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan. Before cleaning, ensure all control knobs are in the OFF position, and the appliance has cooled completely. - Page 14 DO NOT clean the oven door while the glass panels are warm. If this precaution is not observed the glass panel may shatter. If the door glass panel becomes chipped or has deep scratches, the glass will be weakened and must be replaced to prevent the possibility of the panel shattering.
-
Page 15: Something Not Working
SOMETHING NOT WORKING If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Service Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 16: Service & Spare Parts
Not Working” have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown. Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls. Moffat has an agreement with Electrolux who will undertake all servicing requirements for your appliance. CUSTOMER CARE DEPARTMENT... -
Page 17: Guarantee Conditions
The appliance has not been serviced maintained, repaired, taken apart or tampered with by any person not authorised by us. • All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. • Any appliance or defective part replaced shall become the Company's property. -
Page 18: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER SAFETY ADVICE • Before installation ensure that the local distribution conditions (gas type and pressure) and the pre-setting of the appliance are consistent. • This appliance must be installed only in a room with good ventilation. •... -
Page 19: Installation
Positioning Remove all the packaging and install the cooker in a dry, ventilated room not near curtains, paper, alcohol, petrol etc. (See figure). This appliance is approved to class “1” regarding overheating surfaces. It is mandatory to keep 20mm distance to the adjacent furniture. -
Page 20: Ventilation
Ventilation The room containing the cooker should have an air supply in accordance with B.S. 5440: Part 2: Current Editions. The following requirements for ventilation must be met. The cooker should not be installed in a bed sitting room with a volume of less than , if it is installed in a room of volume less 5m an air vent of effective area of... -
Page 21: Gas Connections
Your cooker is delivered adjusted for the kind of gas stated on the rating plate If the appliance is supplied with natural gas and the pressure for natural gas is 20mbar. The following methods of connection to the gas supply must be used: Right Hand Connection (from front) Ensure that the rubber hose is not in contact with any part of the hatched area shown in... - Page 22 The appliance flexible connector should not be subjected to undue forces either in normal whilst disconnected; The socket which the plug of the appliance flexible connector fits should be permanently attached to a firmly fixed gas installation pipe and positioned such that the appliance flexible connector hose hangs freely downwards (see fig.);...
-
Page 23: Conversion Of Gas
Your cooker is designed to work with natural gas, and is convertible for use with propane or butane. The LPG conversion kit is available from your Service Force Centre and must be fitted by a Corgi Registered engineer. For changing the gas type it is necessary to: •... - Page 24 Hob burners To adjust the minimum level: • Light the burner • Turn the knob to the position of the minimum flame; • Remove the knob; • Unscrew or screw the by-pass screw (on the left above of tap shaft) until a regular small flame is reached.
- Page 25 Flame adjustment Oven burners The burner is correctly adjusted when the flame is stable, silent and goes out without any noise. • When the flames are too short, the nozzle is whistling or the flames have the tendency to detach from the burner, it means that there is too much air in the valve.
- Page 26 Adjustment of minimum level Oven burner • Remove the top pan support as well as the burner caps and the burner crowns. • Unscrew and remove the 4 top plate fixing screws and remove the top plate. • Light the burner knob on position 9 and leave the oven door closed for about 10 min.
