ELECTRIC COOKER
ESC 5061 W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESC 5061 W and is the answer not in the manual?

Questions and answers

Related Manuals for Moffat ESC 5061 W

Summary of Contents for Moffat ESC 5061 W

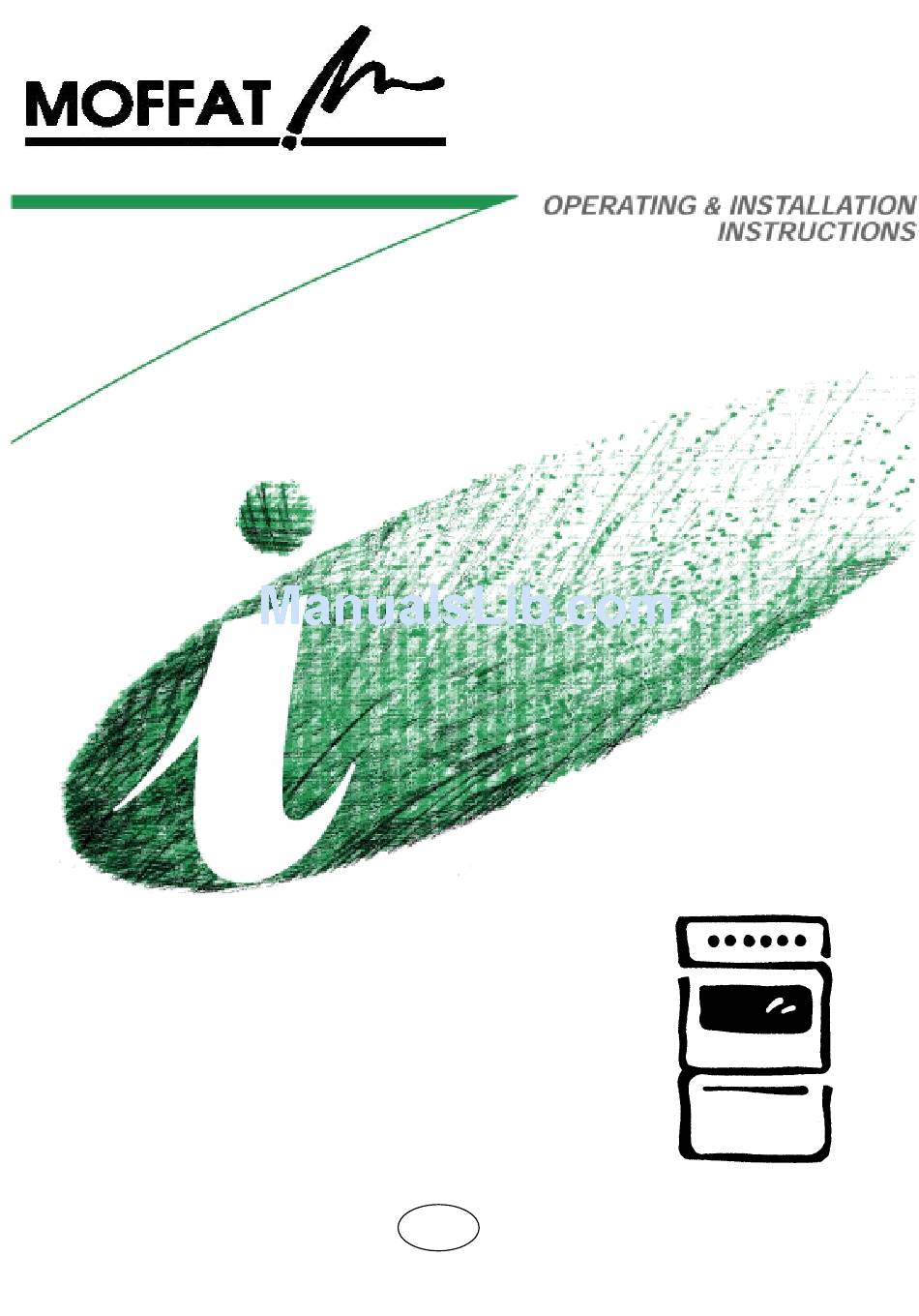

  • Page 1 ELECTRIC COOKER ESC 5061 W...

  • Page 3: Table Of Contents

    CONTENTS Instructions for the user Instructions for the installer Important Safety Information Technical features Description of the appliance Important safety requirements Operation Location Electric hotplates Hints & Tips Electrical connections Using the electric oven Using the electric grill Hints & Tips Maintenance and Cleaning Something Not Working Service &...

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 08705 950950. Installation This cooker must be installed by qualified Never leave the cooker unattended when personnel, according to the manufacturer’s cooking with oil and fats.

  • Page 5: Description Of The Appliance

    180 – 1500W 3. Hot plate 145 – 1000W Hot plate 180 – 2000W Control panel Model : ESC 5061 W THERMOSTAT MAIN ESC 5061 W 1. Oven function control knob 4. Front left hotplate control knob 2. Oven thermostat pilot light 5.

  • Page 6: Operation

    OPERATION Electric Hotplates To switch on a hotplate, turn the relevant control knob to the required heat setting. The control knob is numbered 0 – 6 0 – OFF 1 – Minimum 6 – Maximum. The hob has two types of hotplates: Normal Hotplates We recommend the plates are switched to maximum (6) for a short while to boost the plate,...

  • Page 7: Hints And Tips

    Hints and Tips Saucepans for use on solid plates should have several characteristics: They should be fairly heavy duty Good use They should fit the heat area exactly, or be slightly larger for efficient use, NEVER smaller. They should have a flat base to ensure good contact with the plate.

  • Page 8: Using The Electric Oven

    Using the electric oven Before the first use ensure that the room well ventilated: V.M.C. (Mechanic ventilation) opened window. Before the First Use of the Cooker Remove all packaging both inside and outside of the cooker, before using it. Before first use, the oven should be heated without food.

  • Page 9: Using The Electric Grill

    Electric grill When grilling, the accessible parts of the appliance are hot. Take care that children do not play near it. While the grill is operating leave the oven door half open and pull the protective screen “A” into place. During use the appliance becomes hot.
  • Page 10 Use guide 2 for thick pieces to be roasted (beef bacon, large fish, poultry). When the first side is brown, turn the meat without pricking it in order that the juices are not lost. Grill the second side. Salt when ending the cooking. Cooking time has to determined by the thickness of the piece to be grilled not by its weight.
  • Page 11 Oven Cooking Turn off the oven 5 minutes before the end of cooking time, and use residual heat to complete the cooking. The thickness, the material and the colour of the pan will influence the cooking results. When cooking, certain dishes increase in volume, ensure the pan is large enough.
  • Page 12 MAINTENANCE AND CLEANING Before any maintenance or cleaning can be carried out, you must DISCONNECT the cooker from the electricity supply. Cleaning materials Before using any cleaning materials on your oven, check that they are suitable and that their use is recommended by the manufacturer. Cleaners that contain bleach should NOT be used as they may dull the surface finishes.
  • Page 13 Oven Cavity The enameled oven cavity is best cleaned whilst the oven is still warm. Wipe the oven over with a soft cloth soaked in warm soapy water after each use. From time to time it will be necessary to do a more thorough cleaning, using a proprietary oven cleaner.
  • Page 14 SOMETHING NOT WORKING If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Service Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.
  • Page 15 Please note that it will be necessary to provide proof of purchase for any in- guarantee service calls. Moffat has an agreement with Electrolux who will undertake all servicing requirements for your appliance. CUSTOMER CARE For general enquiries concerning your Moffat appliance and or for further information on our products,...

  • Page 16: Guarantee Conditions

    Standard Guarantee Conditions We Moffat undertake that if, within 12 months of the date of the purchase, this Moffat appliance or any part thereof is proved to be defective by any reason only of faulty workmanship or materials, we will, at our...

  • Page 17: Instructions For The Installer

    INSTRUCTIONS FOR THE INSTALLER TECHNICAL FEATURES Free standing Class X Front right Hot plate 145mm (normal) 1000W Back right Hot plate 180mm (normal) 1500W Front left Hot plate 145mm (normal) 1000W Back left 2000W Hot plate 180mm (rapid) Total rating 5500W Oven Electric...

  • Page 18: Important Safety Requirements

    IMPORTANT SAFETY REQUIREMENTS Important This cooker must be installed in accordance with the IEE Wiring Regulations (Current Edition). Detailed recommendations contained following British Standards Codes Of Practice: B.S. 6172/ B.S. 5440, Par.2 and B.S. 6891 Current Editions. LOCATION The cooker has been registered as a “Class X”appliance according to Fire Rick Regulations.

  • Page 19: Electrical Connections

    ELECTRICAL CONNECTIONS Important Any electrical work required to install this hob should be carried out by a qualified electrician competent person, accordance with the current regulations. THIS COOKER MUST BE EARTHED The manufacturer declines any liability should these safety measures observed.
