Summary of Contents for Moffat GSC5062S

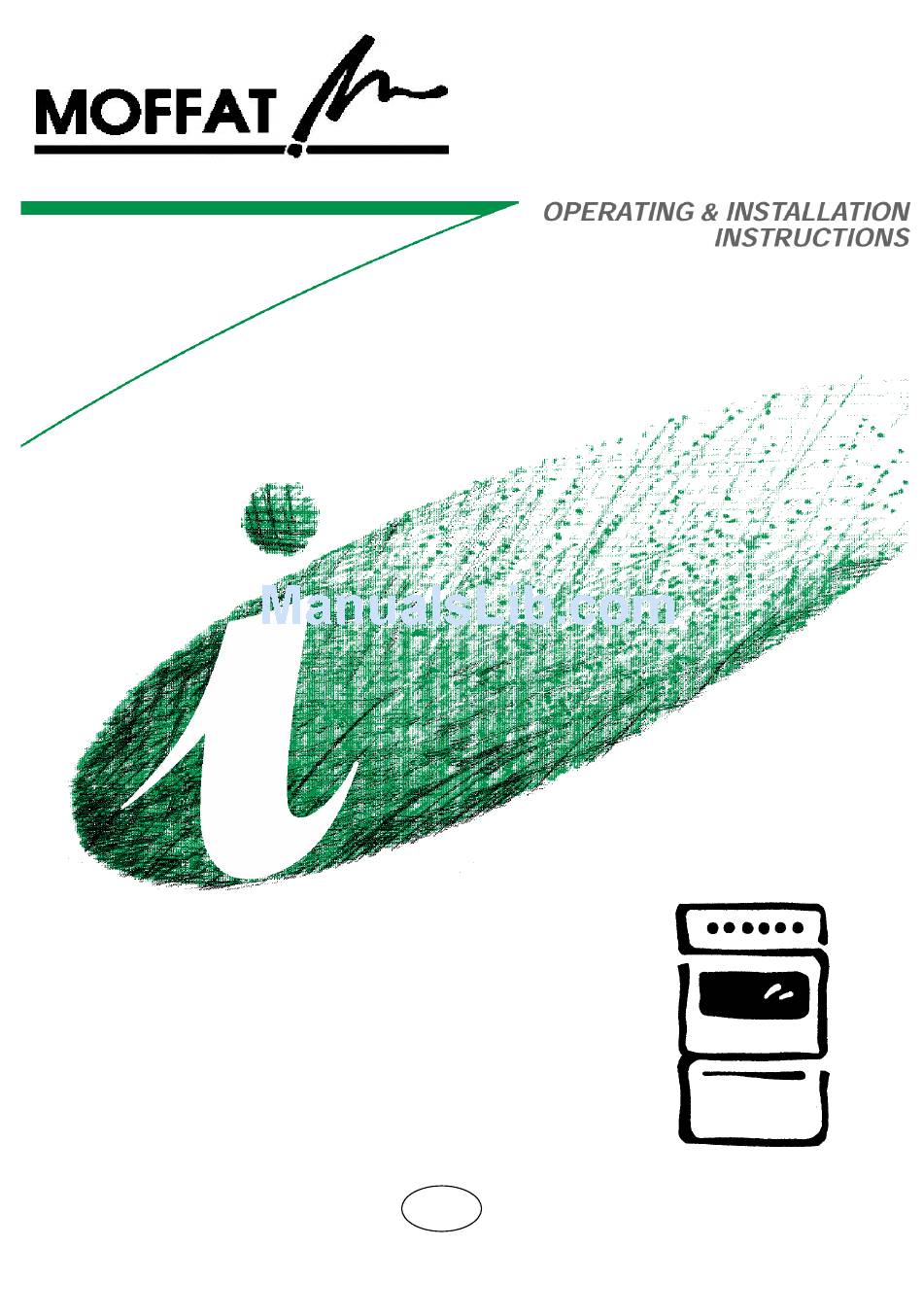

- Page 1 GAS COOKER GSC 5062...
-
Page 3: Table Of Contents
CONTENTS Instructions for the user Instructions for the installer Important Safety Information Safety Advice Description of the appliance Electric connection Technical Features Technical Data Using the appliance Installation Using the oven Positioning Hints & Tips Ventilation Using the Grill Location Using the Hob Gas connections Maintenance and Cleaning... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 08705 950950. • Ensure the control knobs are in the ‘OFF’ Installation position when not in use. •... -
Page 5: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE 2000W 1000W semi-rapid auxiliary Cooker lid Control panel Oven door handle Oven door with semi-rapid rapid glass 2000W 2600W 1. Front left burner (semi-rapid) 2. Back left burner (semi-rapid) 3. Back right burner (auxiliary) 4. Front right burner (rapid) Adjustable small feet Control panel... -
Page 6: Technical Features
TECHNICAL FEATURES Free standing Class 1 Cooker lid Enamelled Pan support Enamelled Front right Rapid 2,60kW Back right Auxiliary 1,00kW Front left Semi rapid 2,00kW Back left Semi rapid 2,00kW Oven Oven Oven power 3,20kW Grill Grill power 2,50kW Oven grid Chromed Accessories Roasting tray... -
Page 7: Using The Appliance
USING THE APPLIANCE Before the First Use of the Cooker Remove all packaging both inside and outside of the cooker, before using it. Before first use, the oven should be heated without food. During this time, an unpleasant odour may be emitted. This is quite normal. grill oven 1. - Page 8 Ignition Attention: when turning on the oven and grill burner the oven door has to be opened. • Open the oven door and lift the small lid on the bottom of the cavity, push and turn the control knob to the left to position 9, keeping the control knob pressed.
-
Page 9: Hints And Tips
Hints and Tips Condensation and steam Oven Cooking When food is heated it produces steam in the • Turn off the oven 5 minutes before the end of same way as a boiling kettle. The oven vents cooking time, and use residual heat to allow some of this steam to escape. -
Page 10: Using The Grill
Using the Grill When using the grill it has to be supervised, the oven door opened and the grill deflector “A” in its place. Heat comes from the top of the oven. It is suitable for grilling meat (beef bacon, pork bacon …) that remains tender, for toast or to brown food already cooked. -
Page 11: Using The Hob
Heat comes from the top of the oven. It is suitable for grilling meat (beef bacon, pork bacon …) that remains tender, for toast or to brown already cooked dishes. Grilling meat When using the grill it has to be supervised, the oven door opened and the grill deflector “A”... -
Page 12: Accessories Delivered With The Appliance
Power Cut • Push the corresponding knob in completely and turn it left to the symbol “large flame” symbol and ignite with a match. • Release the knob and watch that the burner has ignited. Upon ignition, adjust the flame as required. -
Page 13: Maintenance And Cleaning
MAINTENANCE AND CLEANING The oven should be kept clean at all times. A build-up of fats or other foodstuffs could result fire, especially in the grill pan. Before cleaning, ensure all control knobs are in the OFF position, and the appliance has cooled completely. - Page 14 DO NOT clean the oven door while the glass panels are warm. If this precaution is not observed the glass panel may shatter. If the door glass panel becomes chipped or has deep scratches, the glass will be weakened and must be replaced to prevent the possibility of the panel shattering.
-
Page 15: Something Not Working
SOMETHING NOT WORKING If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Service Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 16: Service And Spare Parts
Please note that it will be necessary to provide proof of purchase for any in- guarantee service calls. CUSTOMER CARE For general enquiries concerning your Moffat appliance and or for further information on our products, contact our Customer Care Department by letter or telephone as follows: Customer Care Department... -
Page 17: Guarantee Conditions
Standard Guarantee Conditions We Moffat undertake that if, within 12 months of the date of the purchase, this Moffat appliance or any part thereof is proved to be defective by any reason only of faulty workmanship or materials, we will, at... -
Page 18: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER SAFETY ADVICE Installation of flues and ventilation for gas • Before installation ensure that the local appliances of rated input not exceeding distribution conditions (gas type 60 kW (1 and 3 family gases) – Part pressure) pre-setting Specification installation... -
Page 19: Technical Data
TECHNICAL DATA Table no.1 (Cat : II 2H3+ Cons Normal Economic Nozzle Pressure Burner Gas Type power power pass diameter (mbar) (kW) (kW) (mm) (mm) Natural Gas 1.12 20 mbar 0.248 Butane 0,86 RAPID 2.60 0.72 0.42 188,8 28-30mbar 37mbar Propane 0,86 Natural Gas... -
Page 20: Ventilation
Ventilation The room containing the cooker should have an air supply in accordance with B.S. 5440: Part 2: Current Editions. The following requirements for ventilation must be met. The cooker should not be installed in a bed sitting room with a volume of less than 20m , if it is installed in a room of volume less 5m an air... -
Page 21: Gas Connections
GAS CONNECTIONS Your cooker is delivered adjusted for the kind of gas stated on the rating plate BACK OF THE COOKER If the appliance is supplied with natural gas and the pressure for natural gas is 20mbar. The following methods of connection to the gas supply must be used: power cord Right Hand Connection (from front) -
Page 22: Conversion Of Gas
Connection shall be by means of an appliance Right angled flexible connector for use with a self-sealing bayonet socket Distribuitor incorporating plug-in device, complying with: pipe spring loaded Flexible hoses, end fittings and sockets for Adaptor valve backplate gas burning appliances – BS 669; Female Copper pipe elbow... - Page 23 Adjustment of minimum level for the hob burners The burner is correctly adjusted when the flame is stable silent and goes out without any noise. When changing the type of gas check that the minimum level is correct. The air admission is correct when the flame is about 4 mm in length.
- Page 24 Flame adjustment Table no.2 Air adjusting (mm) Oven burners Gas type The burner is correctly adjusted when the flame Oven Grill is stable, silent and goes out without any noise. 25,5 • When the flames are too short, the nozzle is whistling or the flames have the tendency to detach from the burner, it means that there is too much air in the valve.
