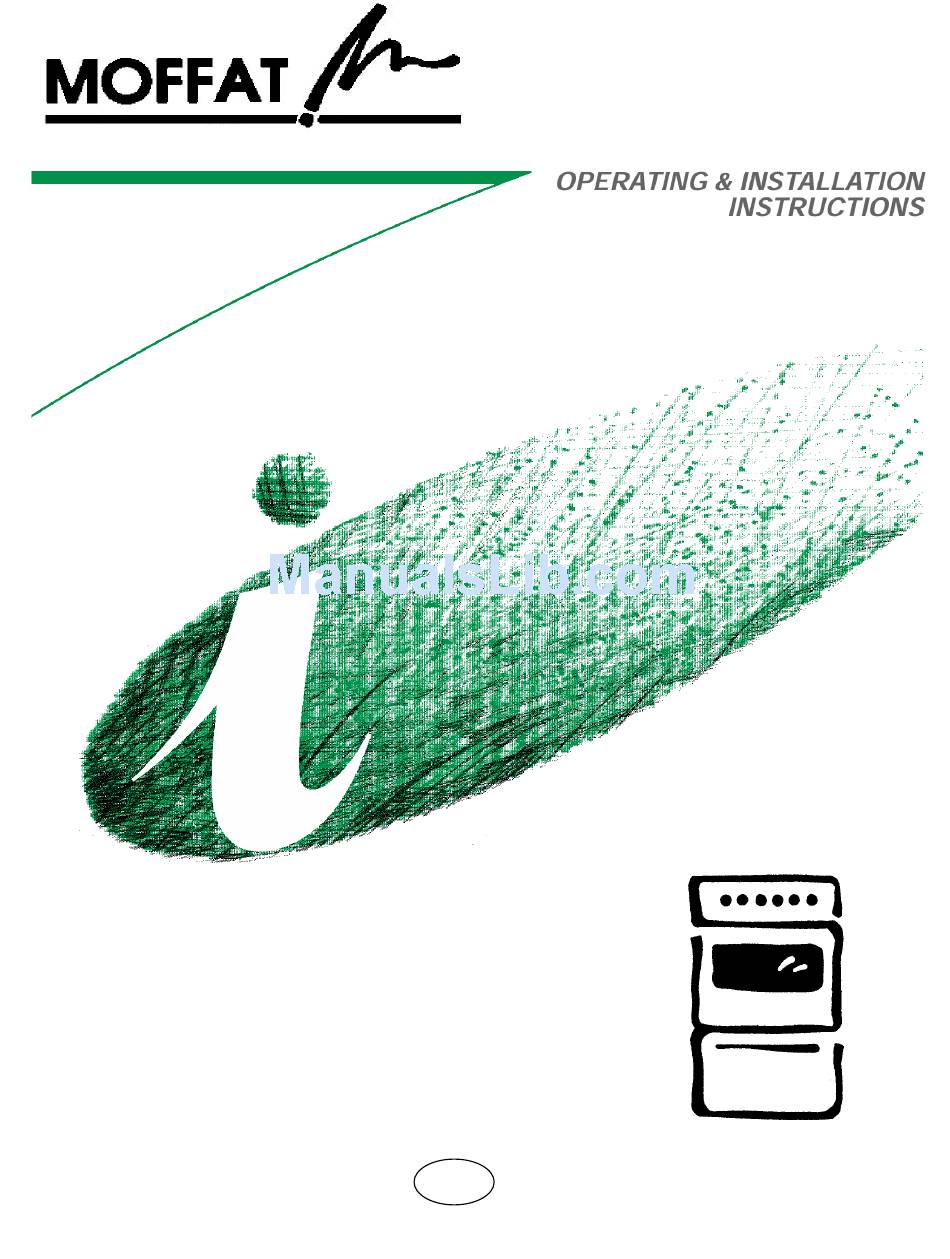

- Page 1 GAS COOKER GSC 5061...
-
Page 3: Table Of Contents
Instructions for the user Important Safety Information Description of the appliance Technical Features Using the appliance Using the oven Hints & Tips Using the Grill Using the Hob Maintenance and Cleaning Something Not Working Service & Spare Parts Customer Care Guarantee conditions How to read the instruction book The symbols below will guide you when reading the... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 08705 950950. Installation • This cooker must be installed by qualified personnel, according to the manufacturer’s instructions and to the relevant British Standards. -
Page 5: Description Of The Appliance
2000W Adjustable small feet 1. Front left burner (semi-rapid) 2. Back left burner (semi-rapid) 3. Back right burner (auxiliary) 4. Front right burner (rapid) Model : GSC 5061 W small normal normal BACK BACK RIGHT LEFT BURNER BURNER... -
Page 6: Technical Features
Free standing Pan support Front right Back right Front left Back left Oven Oven Oven power Grill Grill power Oven grid Accessories Roasting tray Roasting grid Protective screen Dimensions Height to the hob Width Depth This appliance complies with the following EEC Directives : 89/336 (Electromagnetical... -
Page 7: Before The First Use Of The Cooker
Before the First Use of the Cooker Remove all packaging both inside and outside of the cooker, before using it. Before first use, the oven should be heated without food. During this time, an unpleasant odour may be emitted. This is quite normal. 1. -
Page 8: Cooking In The Oven
Ignition Attention: when turning on the oven and grill burner the oven door has to be opened. • Open the oven door and lift the small lid on the bottom of the cavity, push and turn the control knob to the left to position 9, keeping the control knob pressed. -
Page 9: Hints And Tips
Condensation and steam When food is heated it produces steam in the same way as a boiling kettle. The oven vents allow some of this steam to escape. However, always stand back from the oven when opening the oven door to allow any build up of steam or heat to release. -
Page 10: Using The Grill
Using the Grill When using the grill it has to be supervised, oven door protective screen “A” in its place. Heat comes from the top of the oven. It is suitable for grilling meat (beef bacon, pork bacon …) that remains tender, for toast or to brown already cooked. -
Page 11: Using The Hob
Heat comes from the top of the oven. It is suitable for grilling meat (beef bacon, pork bacon …) that remains tender, for toast or to brown already cooked dishes. Grilling meat When using the grill it has to be supervised, the oven door opened the protective screen “A”... -
Page 12: Accessories Delivered With The Appliance
Lack of power • Push the corresponding knob in completely and turn it left to the symbol “large flame” simbol and ignite with a match. • Release the knob and watch that the burner has ignited. Upon ignition, adjust the flame as required. -
Page 13: Maintenance And Cleaning
MAINTENANCE AND CLEANING The oven should be kept clean at all times. A build-up of fats or other foodstuffs could result especially in the grill pan. Before cleaning, ensure all control knobs are in the OFF position, and the appliance has cooled completely. Before any maintenance or cleaning can be carried out, you must DISCONNECT the cooker from the electricity supply. - Page 14 DO NOT clean the oven door while the glass panels are warm. If this precaution is not observed the glass panel may shatter. If the door glass panel becomes chipped or has deep scratches, the glass will be weakened and must be replaced to prevent the possibility of the panel shattering.
-
Page 15: Something Not Working
SOMETHING NOT WORKING If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Service Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 16: Service And Spare Parts
Please note that it will be necessary to provide proof of purchase for any in- guarantee service calls. Moffat has an agreement with Electrolux who will undertake all servicing requirements for your appliance. For general enquiries concerning your Moffat appliance and or for further information on our products,... -
Page 17: Guarantee Conditions
Standard Guarantee Conditions We Moffat undertake that if, within 12 months of the date of the purchase, this Moffat appliance or any part thereof is proved to be defective by any reason only of faulty workmanship or materials, we will, at... -
Page 18: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER SAFETY ADVICE • Before installation ensure that the local distribution conditions (gas pressure) pre-setting appliance are consistent. • This appliance must be installed only in a room with good ventilation. • This appliance must not connected to a flu. It has to be installed and connected in accordance with the rules in force. -
Page 19: Technical Data
Normal Economic Burner power power (kW) (kW) RAPID 2.60 0.72 SEMI- 2.00 0.43 RAPID AUXILIARY 1.00 0.35 OVEN 3.20 1.00 GRILL 2.50 Positioning Remove all the packaging and install the cooker in a dry, ventilated room not near curtains, paper, alcohol, petrol etc. (See figure). This appliance is approved to class “1”... -
Page 20: Ventilation
Ventilation The room containing the cooker should have an air supply in accordance with B.S. 5440: Part 2: Current Editions. The following requirements for ventilation must be met. The cooker should not be installed in a bed sitting room with a volume of less than 20m is installed in a room of volume less 5m vent of effective area of 110cm is required;... -
Page 21: Gas Connections
Your cooker is delivered adjusted for the kind of gas stated on the rating plate If the appliance is supplied with natural gas and the pressure for natural gas is 20mbar. The following methods of connection to the gas supply must be used: Right Hand Connection (from front) Ensure that the rubber hose is not in contact with any part of the hatched area shown in the... - Page 22 The appliance flexible connector should not be subjected to undue forces either in normal use or whilst connected or disconnected; The socket which the plug of the appliance flexible connector fits should be permanently attached to a firmly fixed gas installation pipe and positioned such that the appliance flexible connector...
-
Page 23: Electrical Connection
Electrical connection Important In any connection way the appliance has to be grounded, in accordance with the national rules in force. We decline any responsibility in case of accidents due to no grounding or wrong grounding. Fuse capacity: 5 A Note: Check on the rating plate the value for the total connection power for establishing the fuse... -
Page 24: Conversion Of Gas
Your cooker is designed to work with natural gas, and is convertible for use with propane or butane. The LPG conversion kit is available from your Service Force Centre and must be fitted by a Corgi Registered engineer. For changing the gas type it is necessary to: •... - Page 25 Replace the nozzles of the oven burners Oven burner To replace the gas oven nozzle, follow this procedure: • Check the table no.1 for diameter of nozzle; • Remove the oven removable base panel; • Remove the screw on the oven burner rod at the rear of the oven;...
- Page 26 Adjustment of minimum level Oven burner • Remove the top pan support as well as the burner caps and the burner crowns. • Unscrew and remove the 2 top plate fixing screws and remove the top plate. • Light the burner knob on position 9 and leave the oven door closed for about 10 min.
