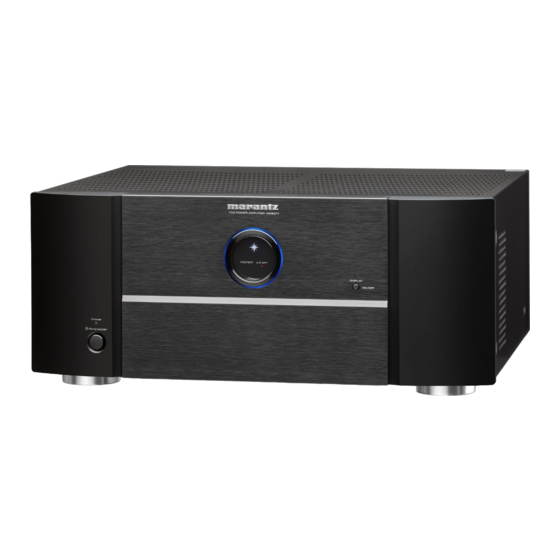

7 Channel Power Amplifier

MM8077
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM8077 and is the answer not in the manual?

Questions and answers

Related Manuals for Marantz MM8077

Summary of Contents for Marantz MM8077

  • Page 1: Channel Power Amplifier

    ESPAÑOL FRANÇAIS ENGLISH 7 Channel Power Amplifier MM8077 Owner’s Manual...

  • Page 3: Safety Precautions

    REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Install in accordance with the manufacturer’s instructions. approved by marantz may void your authority, granted by the FCC, to use Do not install near any heat sources such as radiators, heat registers, The lightning flash with arrowhead symbol, within an equilateral the product.

  • Page 4: Cautions On Installation

    ENGLISH ENGLISH FRANÇAIS ESPAÑOL n CAUTIONS ON INSTALLATION NOTES ON USE / OBSERVATIONS RELATIVES A L’UTILISATION / NOTAS SOBRE EL USO PRÉCAUTIONS D’INSTALLATION WARNINGS AVERTISSEMENTS ADVERTENCIAS EMPLAZAMIENTO DE LA INSTALACIÓN • Avoid high temperatures. • Eviter des températures élevées. • Evite altas temperaturas. Allow for sufficient heat dispersion when Tenir compte d’une dispersion de chaleur Permite la suficiente dispersión del calor cuando...

  • Page 5: Table Of Contents

    ENGLISH Getting started Thank you for purchasing this marantz product. To ensure proper Accessories operation, please read this user guide carefully before using the product. Check that the following parts are supplied with the product. After reading them, be sure to keep them for future reference.

  • Page 6: Features

    Using a mobile phone near this unit may result in noise. If that is equipped with marantz original 50,000 μF / 71 V × 2 block occurs, move the mobile phone away from this unit when it is in use.

  • Page 7: Part Names

    ENGLISH Part names Front panel Rear panel For buttons not explained here, see the page indicated in parentheses ( ). See the page indicated in parentheses ( ). Power operation button DISPLAY button ············································ (9) RCA input connectors (UNBALANCED) ····· (6) FLASHER IN jack ···········································...

  • Page 8: Connections

    ENGLISH Connections n XLR connector PIN arrangement NOTE • Do not plug in the power cord until all connections have been completed. The PIN arrangement in this device uses the European method. • When making connections, also refer to the operating instructions of the other components being In the USA method, w is COLD, and e is HOT.

  • Page 9: Example Connection Variation

    STATUS SPKR A/B HDMI OUT SELECT ON/OFF ON/OFF SLEEP BAND SBL SBR MM8077 MM8077 or MM7055 11.1ch surround playback FHL FHR FWL FWR SBL SBR 9.1ch surround playback MM8077 MM8077 or MM7055 ZONE2 playback FHL FHR ZONE3 playback FWL FWR...

  • Page 10: Connecting Mm8077 With An Av Pre-Tuner (Av8801)

    ENGLISH Connecting MM8077 with an AV pre-tuner (AV8801) The illustrations below show connection examples for performing 7.1-channel surround playback using the MM8077 and AV pre-tuner (AV8801). • For settings and operating procedures of the AV8801, see the AV8801 owner’s manual. • When connecting the AV8801, be sure to also consult the AV8801 owner’s manual.

  • Page 11: Connecting The Power Cord

    Remote control connection Wait until all connections have been completed before connecting the power cord. When connecting a marantz AV8801 AV pre-tuner, you can switch the power of this unit to ON/STANDBY together with the AV8801 power supply. For details, see the AV8801 owner’s manual.

  • Page 12: Connection To An External Control Device

    DC control output connector device with the power ON/STANDBY of this (DC CONTROL OUT) When connecting a marantz AV8801 or AV7701 unit. Used when connecting a device that has a DC AV pre-tuner, you can switch the power of this...

  • Page 13: Operations

    ENGLISH Operations Turning the power on Switching the illumination lamp ON/STANDBY DISPLAY ON/OFF When the power is in standby, press ON/STANDBY • The protection indicator flashes for approximately 7 seconds, and If the unit is being used with the factory settings, the illumination lamp the power switches on.

  • Page 14: Explanation Of Terms

    0.1 second intervals and check the speaker cable connections. If the same situation occurs when the protection indicator flash at approximately 0.5 power is switched on again, contact the marantz Service Center. second intervals.

  • Page 15: Specifications

    ENGLISH Specifications Index 150 W/ch, 8 Ω Rated power output v Numerics (from 20 Hz to 20 kHz/THD = 0.08 %, two channels driven): 180 W/ch, 6 Ω 7.1ch surround playback ······································ 5 Troubleshooting ················································· 10 Maximum effective output power (from 1 kHz, 6 Ω, 10% two channels driven): 210 W/ch, 6 Ω...
  • Page 17 Dimensions / Dimensions / Dimensioni Unit : in. (mm) / Unité : po (mm) / Unidad: pulg. (mm) 17 21/64 (440.0) 2 13/64 (56.0) 1 31/32 1 31/32 (50.0) (50.0) 13 25/64 (340.0) Weight / Poids / Peso : 39 lbs 11 oz (18.0 kg)
  • Page 18 D&M Holdings Inc. Printed in China 5411 10983 00AM...
