Marantz MM8003 User Manual

Marantz 8 channel power amplifier user guide
Hide thumbs Also See for MM8003:
Table of Contents

Advertisement

Quick Links

FRANÇAIS
ENGLISH

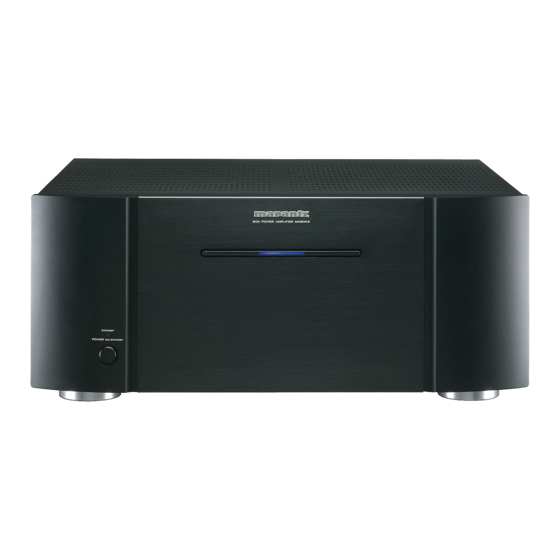

8 Channel Power Amplifier
MM8003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM8003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz MM8003

Summary of Contents for Marantz MM8003

  • Page 1 FRANÇAIS ENGLISH 8 Channel Power Amplifier MM8003...

  • Page 2: Important Safety Instructions

    11. Only use attachments/accessories specifi ed interference that may cause undesired operation. by the manufacturer. U.S. Responsible Party: Marantz America, Inc. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

  • Page 3: Table Of Contents

    This remarkable component has been engineered to provide you with many years of home theater enjoyment. Please take a few minutes to read this manual thoroughly before you connect and operate the MM8003. As there are a number of connection and confi guration options, you are encouraged to discuss your own particular home theater setup with your Marantz A/V specialist dealer.

  • Page 4: Features

    The MM8003 features in all 8 channels the current generated by the amplifi er. feedback type of power amplifi er, which uses the These features together make for lavish specifi...

  • Page 5: Names And Function

    NAMES AND FUNCTION For a more detailed description of the functions of each part, refer to the pages given in ( ). FRONT PANEL 8CH POWER AMPLIFIER MM8003 8CH POWER AMPLIFIER MM8003 STANDBY STANDBY POWER ON/STANDBY POWER ON/STANDBY POWER ON/STANDBY button (page 8)

  • Page 6: Basic Connections

    Female PUSH (This cable is required to connect the AV8003 or other Marantz component to this amplifi er.) q This amplifi er uses XLR connectors, which are widely used in professional audio applications, for the BALANCED connectors. Their features are described below.

  • Page 7: Av8003 Connections

    CHANNEL 7 CHANNEL 7 6-8 OHMS 6-8 OHMS ( ( OPTION OPTION) ) ( ( C C ) ) MODEL NO. MM8003 MODEL NO. MM8003 AV PRE TUNER AV8003 INPUT 1( ( TV INPUT 1 TV) ) INPUT 2( ( DVD...

  • Page 8: Speaker Connections

    AC IN AC IN tighten it up. SPEAKER SYSTEMS SPEAKER SYSTEMS 6-8 OHMS 6-8 OHMS ( ( L L ) ) ( ( L L ) ) MODEL NO. MM8003 MODEL NO. MM8003 Front Front right left speaker speaker Notes: •...

  • Page 9: Power Cable Connection

    TIPS ON SPEAKER PLACEMENT How the speakers should be placed depends on the room size and other factors. An example of how the speakers are normally placed and some placement tips are given here. Surround R Surround Back R Front R Front Center Surround L...

  • Page 10: Operation

    Disconnect the power cable plug from the power outlet when you leave home for a prolonged period. Make sure you can disconnect the plug from the power outlet at any time in order to prevent possible accidents. POWER ON/STANDBY Standby indicator switch 8CH POWER AMPLIFIER MM8003 8CH POWER AMPLIFIER MM8003 STANDBY STANDBY POWER ON/STANDBY...

  • Page 11: Advanced Connections

    DC CONTROL REMOTE CONTROL REMOTE CONTROL 120V 60Hz 120V 60Hz HOT(+) UNSWITCHED 1.25A 150W UNSWITCHED 1.25A 150W AC IN AC IN MODEL NO. MM8003 MODEL NO. MM8003 Front right speaker Front left speaker UNBALANCED ANCED BALANCED BALANCED PRE OUT PRE OUT...

  • Page 12: Multi Zone Speaker Connections

    AC IN AC IN SPEAKER SYSTEMS SPEAKER SYSTEMS SPEAKER SYSTEMS SPEAKER SYSTEMS 6-8 OHMS 6-8 OHMS 6-8 OHMS 6-8 OHMS MODEL NO. MM8003 MODEL NO. MM8003 Monitor Front left Speaker (L) Speaker (R) speaker VIDEO IN Zone A UNBALANCED ANCED...

  • Page 13: Multi Zone Connections

    AC IN VIDEO VIDEO SPEAKER SYSTEMS SPEAKER SYSTEMS 6-8 OHMS 6-8 OHMS DIGITAL IN DIGITAL IN MODEL NO. MM8003 MODEL NO. MM8003 Zone A Main zone INPUT 1( ( TV TV) ) INPUT 2( ( DVD DVD) ) INPUT 1 INPUT 2 Ω...

  • Page 14: Remote Control Connections

    15 V is input. Remote control connector This is used when confi guring a system with another Marantz product and using it to control this amplifi er. Connect the REMOTE CONTROL OUT connector of the other Marantz product to the REMOTE CONTROL IN connector of the amplifi...

  • Page 15: Troubleshooting

    If the failure persists even after checking the below points, contact your dealer, your nearest Marantz Consumer Marketing offi ce or customer center, or a Marantz service center.

  • Page 16: Others

    In the event of diffi culty, refer to your dealer or write directly to the nearest location to you that is listed on the Marantz Authorized Service Station list. If writing, please include the model and serial number of the equipment together with a full description of what you think is abnormal about the equipment’s behaviour.
  • Page 17 You can find your nearest authorized distributor or dealer on our website. is a registered trademark. Printed in China 04/2008 541110074027M mzh-d...
