Battery Packs

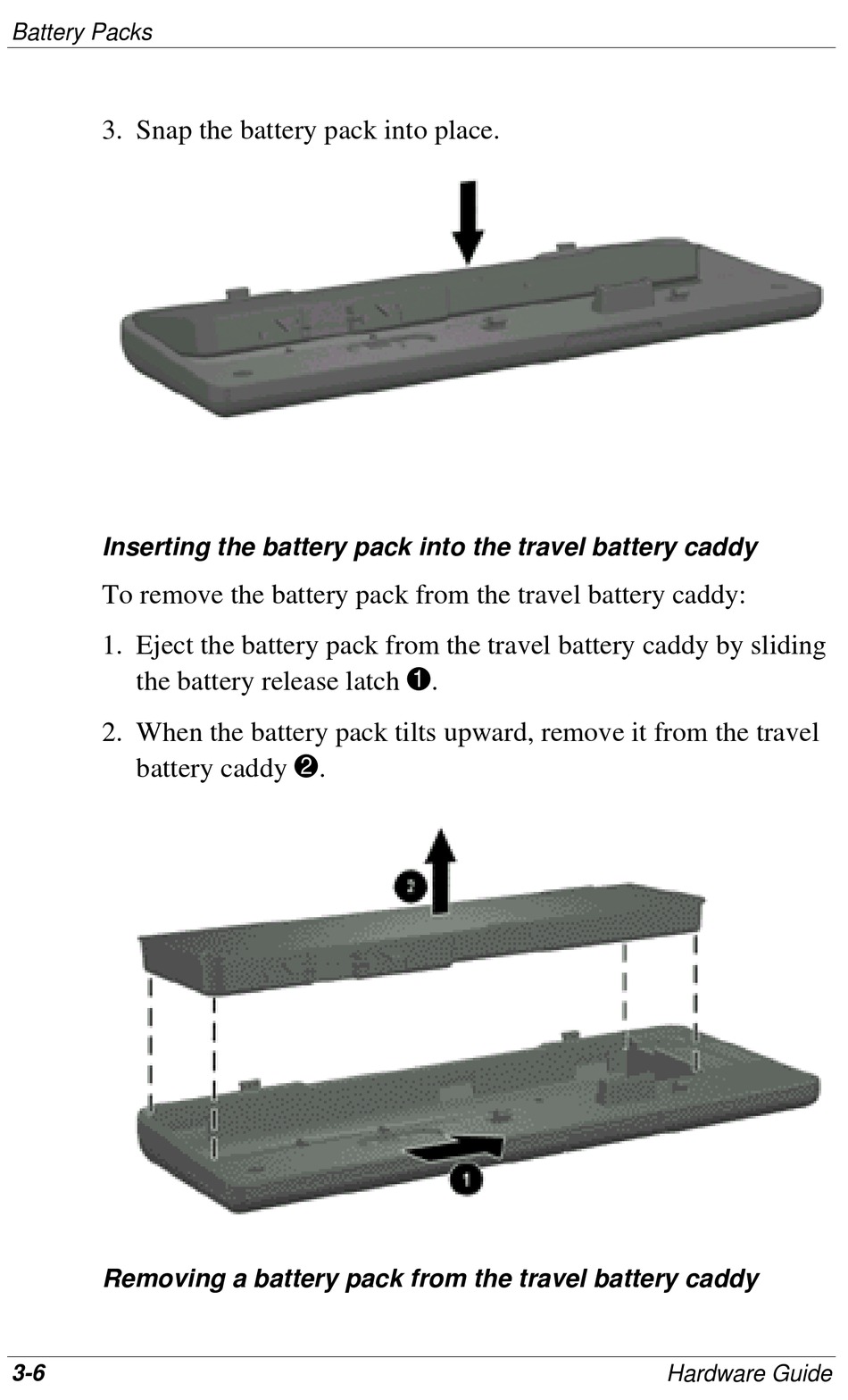

3. Snap the battery pack into place.
Inserting the battery pack into the travel battery caddy
To remove the battery pack from the travel battery caddy:
1. Eject the battery pack from the travel battery caddy by sliding
the battery release latch
2. When the battery pack tilts upward, remove it from the travel
battery caddy
Removing a battery pack from the travel battery caddy
3-6
1
.
2
.
Hardware Guide
