Intel Desktop Board D945GCCR Product Guide
Back Panel Connectors
NOTE
The line out connector, located on the back panel, is designed to power either
headphones or amplified speakers only. Poor audio quality may occur if passive (non-
amplified) speakers are connected to this output.

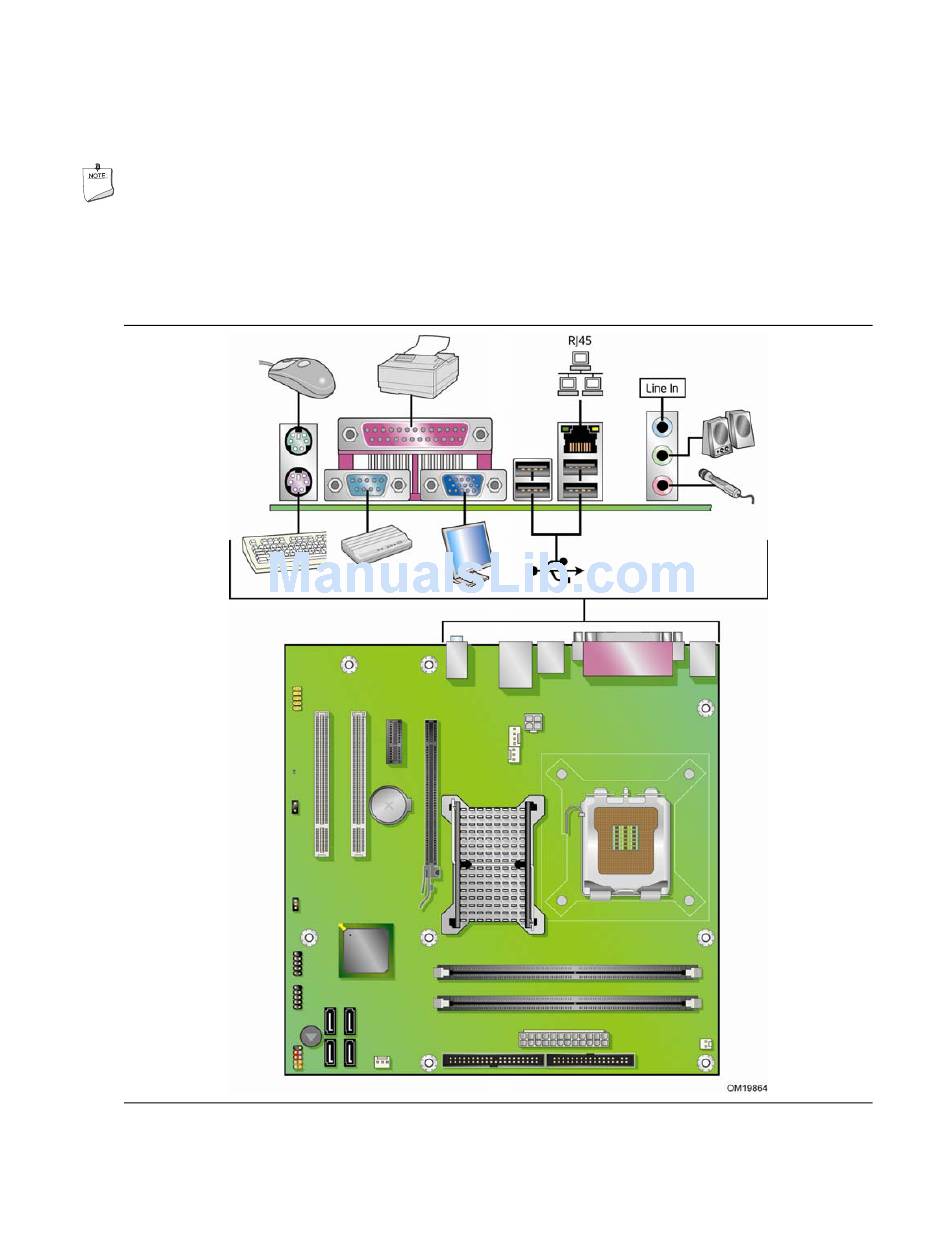

Figure 26 shows the back panel connectors.
54
Figure 26. Back Panel Connectors
