Connecting to the Flexible Audio System
After installing the RealTek audio driver, the multi-channel audio feature can be
enabled. Figure 21 shows the back panel audio connectors. The default connector
assignments are shown in the table. The connectors are retaskable using the audio
driver interface.
Installing and Replacing Desktop Board Components
Item
Description
A
Line in/retasking jack
B
Line out/retasking jack
C
Mic in/retasking jack

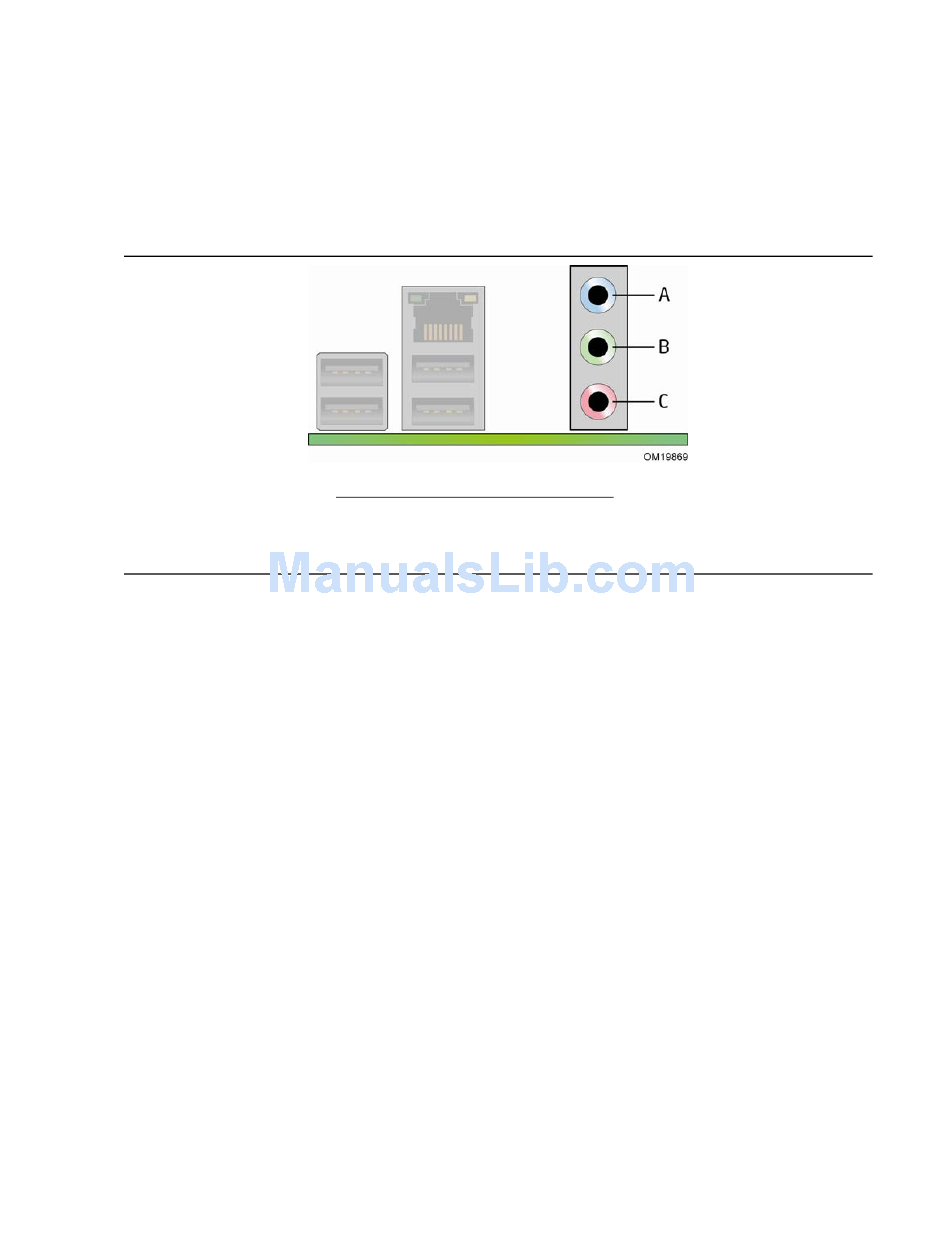

Figure 21. Back Panel Audio Connectors
47
