Control Elements and Connections

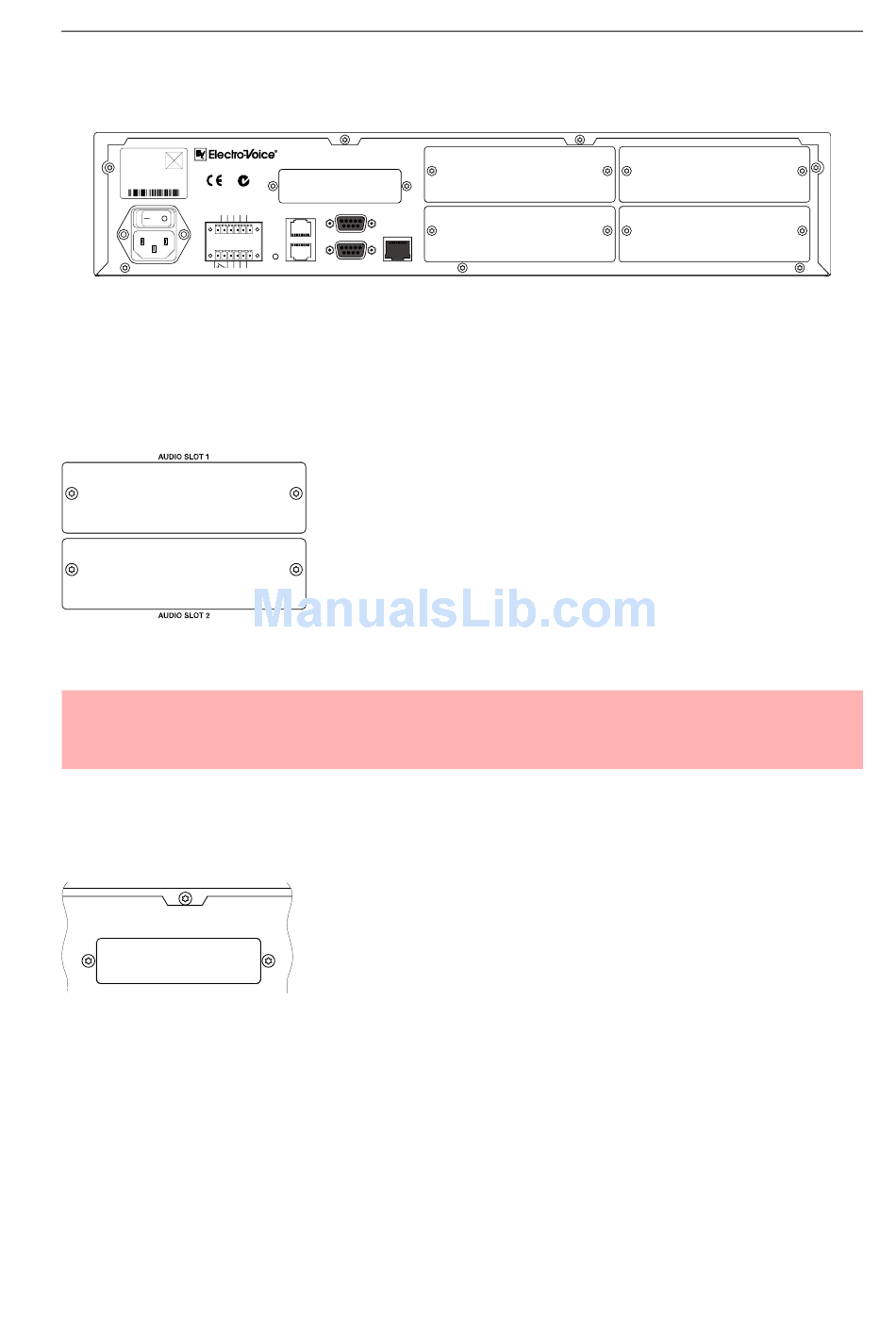

2.2 Rear Panel

N8000
MODEL:
MADE IN GERMANY
C US
100-240 V~ 50-60 Hz/ 90 W
SERIAL: 170323 03150 10001
INPUTS
RELAY
OUTPUTS
There are all connections for analog and digital audio signals, control interfaces and the power
supply at the rear panel of the N8000.

AUDIO SLOTs

ATTENTION:
The N8000 has to be switched off if you want to change or install a module. You will find
detailed instructions in the data sheet of the corresponding module.

Network Module Slot

NetMax system controllers can be connected to create a large, distributed audio system. The
NetMax N8000 System Controller
12
Owner's manual
BURNSVILLE, MN, U.S.A.
N378
CONTROL PORT REMOTE RS-232
GND 1 2 3 4 10V REF
0-10V
PORT 1
STATUS
PORT 2
2 3 4 5V/200mA CAN BUS
The AUDIO SLOTs 1 - 4 are module slots for the installation of
NetMax audio modules. There are both analog and digital
input and output modules available. Also, a module for
microphone input sensitivity is optionally available. Each slot
can accept any module so you can equip those inputs and
outputs which you need for your specific application. The
N8000 detects the type of the module automatically and offers
the corresponding configuration possibilities.
AUDIO SLOT 3
ETHERNET
AUDIO SLOT 4
This slot is provided for the installation of a network module,
e.g. CM-1 CobraNet™ module. There are all 64 audio
channels - 32 inputs and 32 outputs - internally available at
this slot. The CM-1 allows up to 32 digital audio input signals
and 32 digital audio output signals to be transmitted via a
CobraNet™ network simultaneously. Thus, several N8000
AUDIO SLOT 1
AUDIO SLOT 2
