Key Features:
Up to three front units in a wallstation - easy
daisy chaining of any combination PWS-4/6
modules using included connection wire
Easy labeling of buttons - label field protected
by transparent cover
Configuration via IRIS-Net - Buttons and LEDs
can be used for various functions.
Check the PWS manual and IRIS-Net
documentation for more details
General Description:
The Programmable Wall Stations (PWS) are modular stan-
dard mount keypads for Electro-Voice NetMax systems. Typi-
cal applications are volume control, source selection, preset
selection and room combining.
The PWS-4/PWS-6 front units install in standard electrical
gang box. A PWS-C CAN coupler is required to use PWS-4/
PWS-6 modules.
Contents:
Quantity
Description
1
Technical Information, PWS-4/PWS-6
1
PWS-4/PWS-6 Front Unit
1
Connection Wire
1
Protection Cover
2
Screws, M3 x 12
2
Spacers
PWS-4/PWS-6
Programmable
Wall Station
Technical Specifications:
Supply Voltage
(via PWS-C):
Supply Current
(via PWS-C):
Max. Power Consumption: 175 mW
Buttons: 4 with green
Operating Temperature
Range:
Dimensions (W x H x D):
Weight:
Front Units
PWS-4
PWS-6
5 V DC
35 mA
30 mA
150 mW
6 with green
Status LED
Status LED
2 Up/Down with
LED Chain
(4 green LEDs)
-5 °C ... 40 °C
48 x 105 x 34 mm
80 g

Advertisement

loading
Need help?

Need help?

Do you have a question about the PWS-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electro-Voice PWS-4

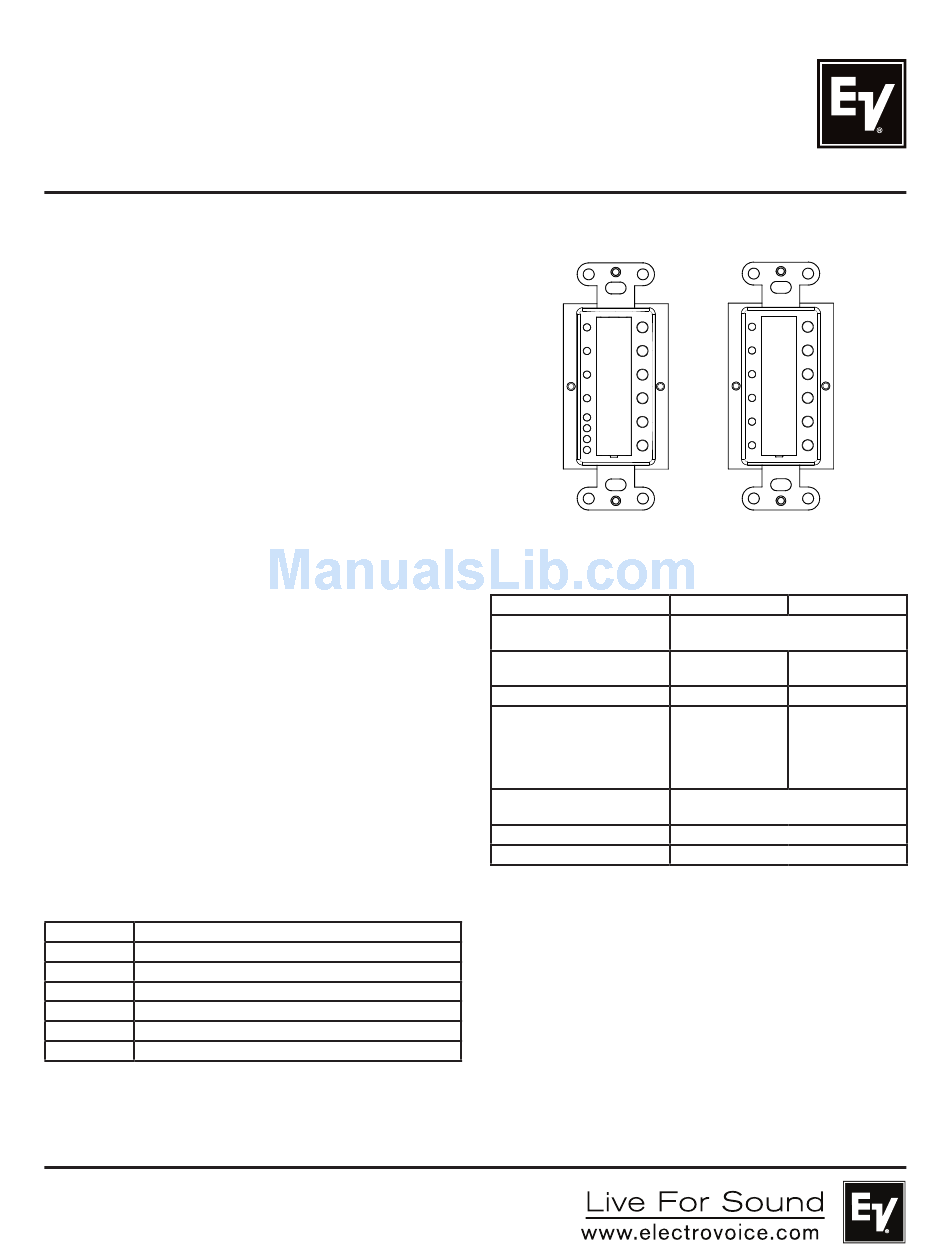

  • Page 1 Electro-Voice NetMax systems. Typi- cal applications are volume control, source selection, preset selection and room combining. The PWS-4/PWS-6 front units install in standard electrical gang box. A PWS-C CAN coupler is required to use PWS-4/ PWS-6 modules. Contents: Quantity...
