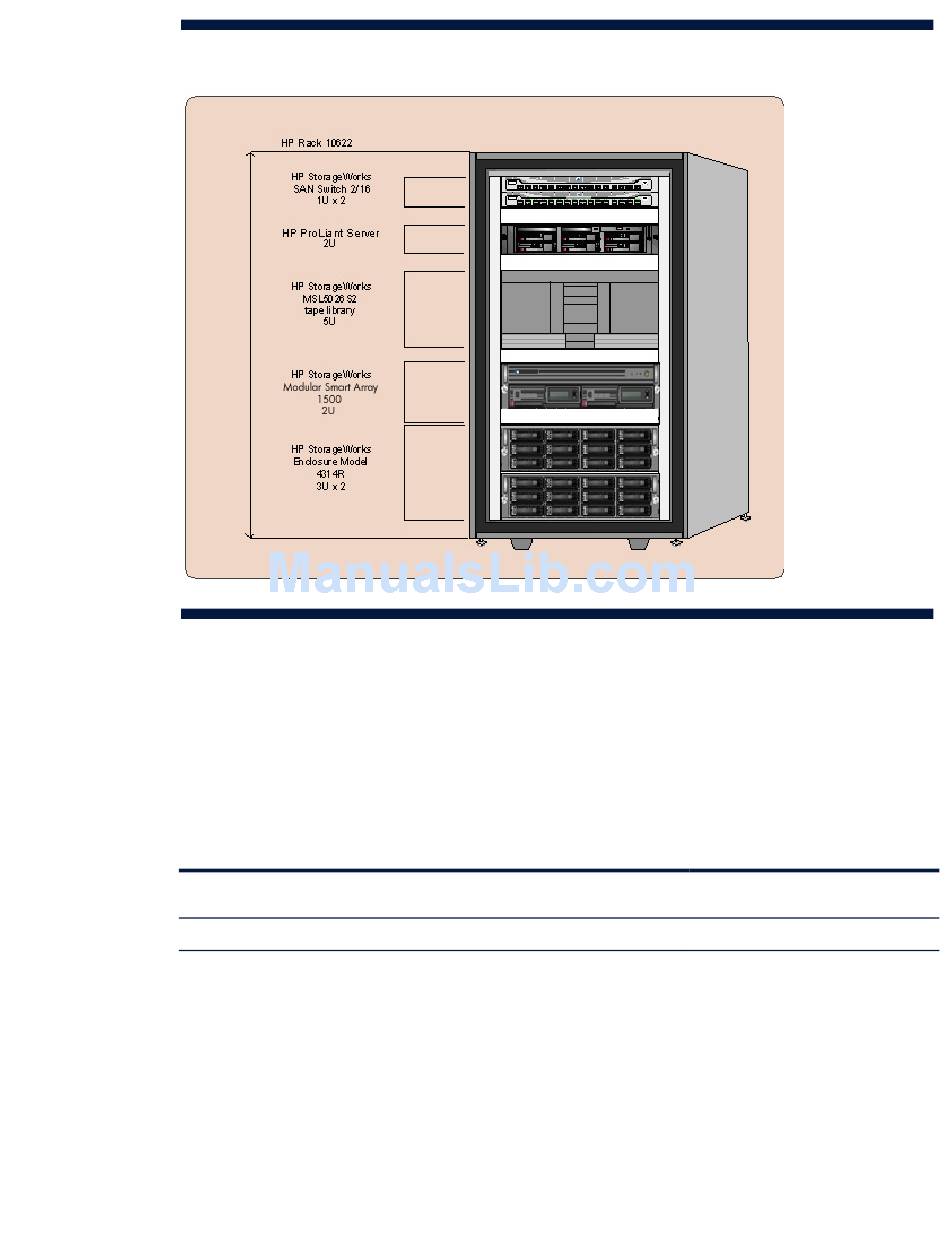

Figure 3. Example mezzanine backup-restore solution rack

Customers with an existing SAN and a supported ESL or MSL tape library may only need to add the

MSA1500 and the two MSA20 enclosures. If a backup management server is not already in place,

one must be added to support the solution. This server must meet the configuration requirements of the

data protection application being used.

Figure 3 shows the solution racked in HP Rack 10000 Series 22U rack. The 10000 Series also

includes 36U, 42U, and 47U racks. The e1200 NSR is embedded in the tape library.

Supported hosts

Table 1. Supported hosts and Fibre Channel host bus adapters (HBAs)

Link speed

1 or 2 Gb/s

Any Microsoft® Windows® 2000

server

FCA-2101 (245299-B21)

Any Windows 2000 advanced server

FCA-2101 (245299-B21)
