A Type
B Type
Figure B.1a
NOTE: 1. Please use a DisplayPort cable with a DisplayPort certified logo.
2. The DisplayPort connector does not supply power to the connected component.
3. When removing the DisplayPort cable, hold down the top button to release the lock.
7. Connect the power cord to the power outlet (Figure C.1).
NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.
8. Turn on the monitor with the front power key and the computer (Figure C.1).
9. No-Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings.
For further adjustments, use the following OSD controls:
• Auto Adjust (Analog input only)
Refer to the Controls section of this User's Manual for a full description of these OSD controls.
NOTE: If you have any problems, please refer to the Troubleshooting section of this User's Manual.

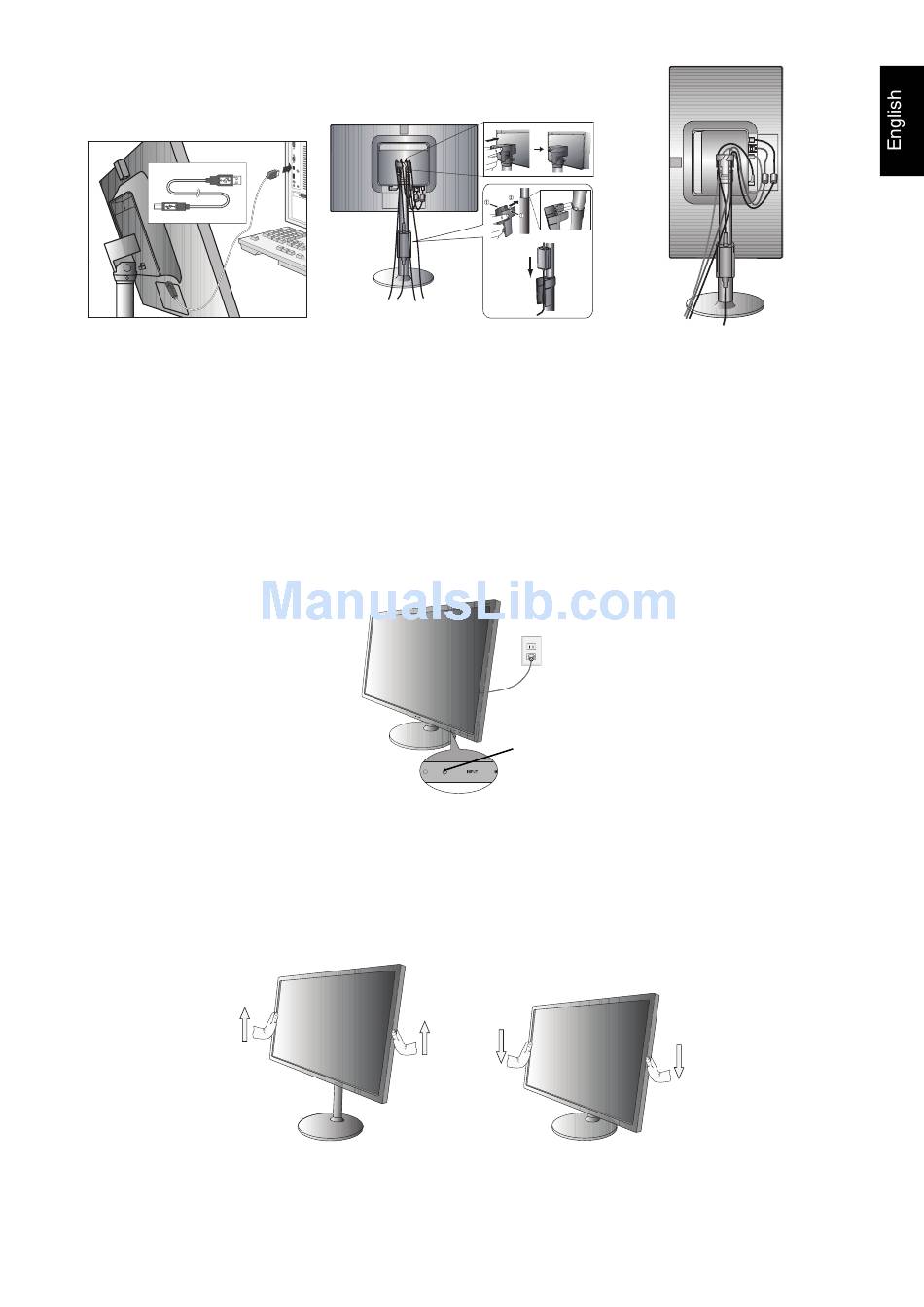

Raise and Lower Monitor Screen

The monitor may be raised or lowered. To raise or lower screen, place hands on each side of the monitor and lift or lower to
the desired height (Figure RL.1).
NOTE: Handle with care when raising or lowering the monitor screen.
Do not grasp the rear handle when raising or lowering the monitor. It may cause pitching your finger between the
stand and the monitor.
A Type
Figure B.2
Figure C.1
Figure RL.1
Power Key
English-7
Figure B.3
