Summary of Contents for NEC EX201W-BK

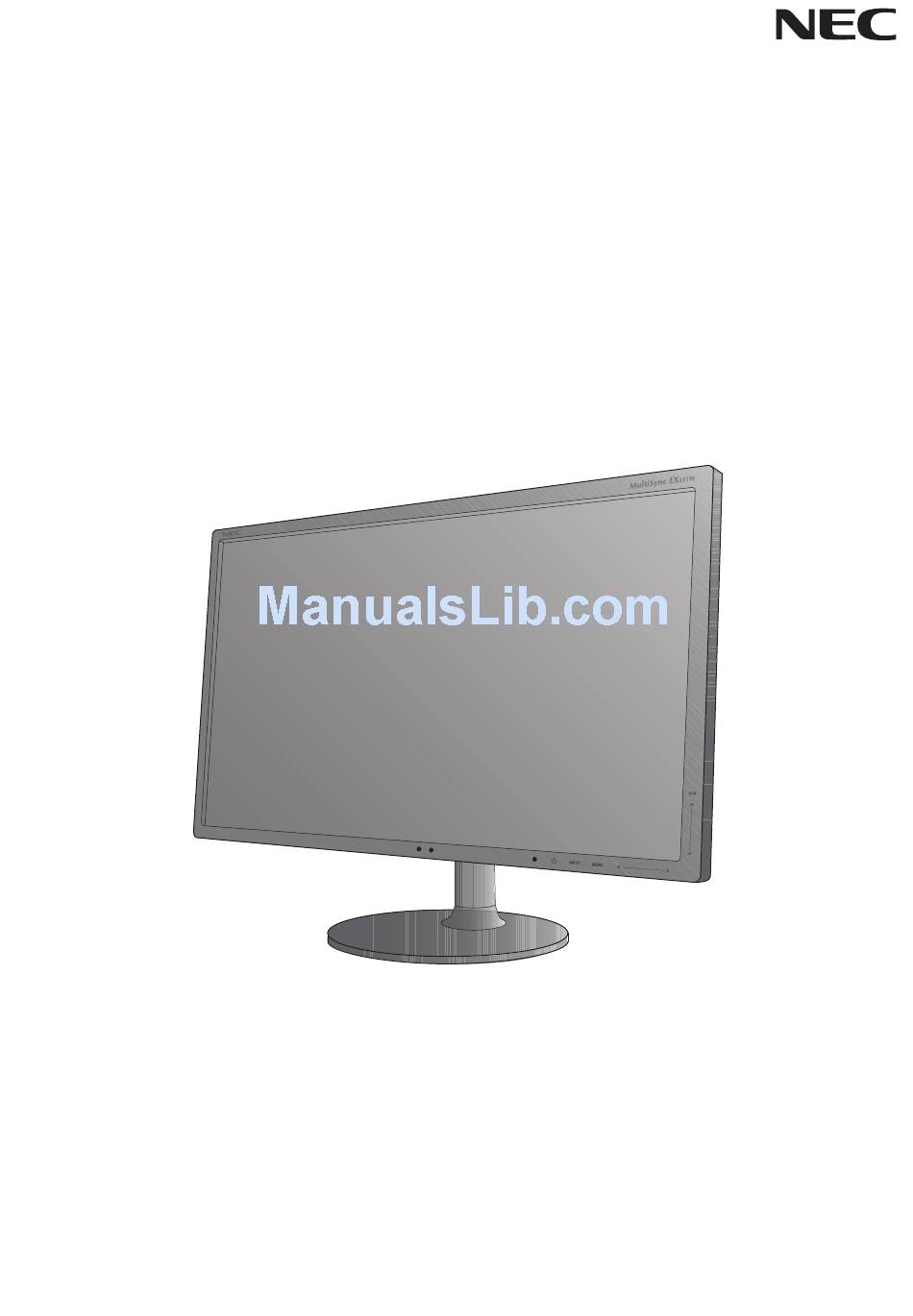

- Page 1 MultiSync EX201W MultiSync EX231W MultiSync EX231Wp User’s Manual...
-
Page 2: Table Of Contents
Index Warning, Caution ... English-1 Registration Information ... English-1 Recommended use ... English-3 Contents ... English-5 Quick Start ... English-6 Controls ...English-10 Specifications - EX201W ...English-16 Specifications - EX231W ...English-17 Specifications - EX231Wp ... English-18 Features ...English-19 Troubleshooting ...English-20 Using the Auto Brightness function ... English-21 TCO Displays 5 ...English-22 Manufacturer’s Recycling and Energy Information ... -
Page 3: Warning, Caution
Council Directive 2009/125/EC: EC No.1275/2008 – EN 62301:2005 WARNING CAUTION European U.K. Continental EU (except U.K.) U.K. Declaration of the Manufacturer and marked with NEC Display Solutions, Ltd. English-1 Chinese Japanese China Japan 100* 4-13-23, Shibaura, Minato-Ku Tokyo 108-0023, Japan... -
Page 4: Canadian Department Of Communications Compliance Statement
NaViSet is a trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland. MultiSync is a registered trademark of NEC Display Solutions, Ltd. in the countries of U.K., Italy, Austria, Netherlands, Switzerland, Sweden, Spain, Denmark, Germany, Norway and Finland. -
Page 5: Recommended Use
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. - Page 6 CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE • For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
-
Page 7: Contents
Contents Your new NEC MultiSync LCD monitor box* should contain the following: • MultiSync LCD Monitor • Power Cord • AC Adapter • Stand • Base Stand • AC Adapter Holder • Cable Holder • Video Signal Cable (15-pin mini D-SUB male to DVI-A) •... -
Page 8: Quick Start
Quick Start To attach the Base to the LCD stand: 1. Place monitor face down on a non-abrasive surface (Figure 1). NOTE: Handle with care when placing monitor face down to avoid damaging the front control keys. 2. Put the upper hooks of the stand in the slot of the monitor then push stand into monitor in direction of the arrow as shown in Figure 1 and confirm that the stand is locked. -
Page 9: Raise And Lower Monitor Screen
A Type A Type B Type Figure B.1a NOTE: 1. Please use a DisplayPort cable with a DisplayPort certified logo. 2. The DisplayPort connector does not supply power to the connected component. 3. When removing the DisplayPort cable, hold down the top button to release the lock. 7. -
Page 10: Screen Rotation
Tilt and Swivel Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1). NOTE: Handle with care when tilting the monitor screen. Screen Rotation Before rotating, the screen must be raised to the highest level to avoid running into the desk or pinching your fingers. To raise the screen, with one hand, grip the top of the display by the handle using the other hand to grip the bottom. -
Page 11: Flexible Arm Installation
Flexible Arm Installation This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm: 1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand. 2. Using 4 screws attach the arm to the monitor (Figure F.1). NOTE: 1. -
Page 12: Controls
Controls OSD (On-Screen Display) control keys on the front of the monitor function as follows: You can access the OSD menu by touching your finger on any of the control keys. To change signal input, touch the INPUT (SELECT) Key. To change ECO MODE, touch the ECO (RESET) Key. - Page 13 Simple MENU BRIGHTNESS Adjusts the overall image and background screen brightness. If ECO MODE is set to 1 or 2, a bar for CARBON FOOTPRINT will appear. ECO MODE can be set by FULL MENU. AUTO ADJUST (Analog input only) Automatically adjusts the Image Position, Horizontal Size, Fine and Contrast settings.
-
Page 14: Eco Mode
ECO MODE Decreases the power consumption by reducing the brightness level. OFF: Sets brightness variable from 0% to 100%. (ECO MODE) 1: Sets brightness variable range from 0% to 80%. This setting can adjust brightness to a range in which power is reduced to meet Energy Star measurement conditions. -
Page 15: Auto Adjust
DV MODE Dynamic Visual Mode allows you to select from the following settings: STANDARD: Standard setting. TEXT: Setting that makes letters and lines crisp; best suited for basic word processing and spreadsheets. MOVIE: Setting that boosts dark tones; best suited for movies. GAMING: Setting that boosts whole tones;... -
Page 16: Menu Tools
Tools DVI SELECTION: This function selects the DVI input mode. When the DVI selection has been changed, you must restart your computer. DIGITAL: DVI digital input is available. ANALOG: DVI analog input is available. VIDEO DETECT: Selects the method of video detection when more than one computer is connected. FIRST: The video input has to be switched to “FIRST”... -
Page 17: Eco Information
ECO Information CARBON SAVINGS: Displays the estimated carbon savings information in kg. COST: Displays the electricity cost savings in balance. INTEGRAL POWER: Displays multiple values of the power consumption. CARBON CONVERT SETTING: Adjusts the carbon footprint factor in the carbon saving calculation. This initial setting is based on the OECD (2008 Edition). -
Page 18: Specifications - Ex201W
Sync on Green (Video 0.7 Vp-p and Sync Negative 0.3 Vp-p) DisplayPort Complies with Standard V1.1a, applicable to HDCP Depends on display card used. Automatically Automatically Automatically Some systems may not support all modes listed. NEC DISPLAY SOLUTIONS cites recommended 2.1 A) -
Page 19: Specifications - Ex231W
1400 x 1050* @ 60 Hz to 75 Hz 1680 x 1050* @ 60 Hz NEC DISPLAY SOLUTIONS cites recommended 1920 x 1080 @ 60 Hz... resolution for optimal display performance. 509.2 mm/20.0 inches 286.4 mm/11.3 inches 286.4 mm/11.3 inches 509.2 mm/20.0 inches... -
Page 20: Specifications - Ex231Wp
Sync on Green (Video 0.7 Vp-p and Sync Negative 0.3 Vp-p) DisplayPort Complies with Standard V1.1a, applicable to HDCP Depends on display card used. Automatically Automatically Automatically Some systems may not support all modes listed. NEC DISPLAY SOLUTIONS cites recommended 2.1 A) -
Page 21: Features
Carbon conversion factor - conversion factor is based on OECD publication of global CO2 emissions 2008 Edition).This monitor has a manufacturing carbon footprint of approximately TBD kg. Note: The manufacturing and operating carbon footprints are calculated by a unique algorithm developed exclusively by NEC for its monitors. -
Page 22: Troubleshooting
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. -
Page 23: Using The Auto Brightness Function
Using the Auto Brightness function The brightness of the LCD screen can be set to increase or decrease depending on the amount of ambient light within the room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim accordingly. -
Page 24: Tco Displays 5
TCO Displays 5 This display is designed for both you and the planet! TCO Certified is a third party verified program, where every product model is tested by an accredited impartial test laboratory. TCO Certified represents one of the toughest certifications for displays worldwide. -
Page 25: Manufacturer's Recycling And Energy Information
Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally- friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).
