14 F-CONTROL AUDIO FCA202 User Manual

3. Operating Elements and Connections

3.1 Front panel
(1)
(2)

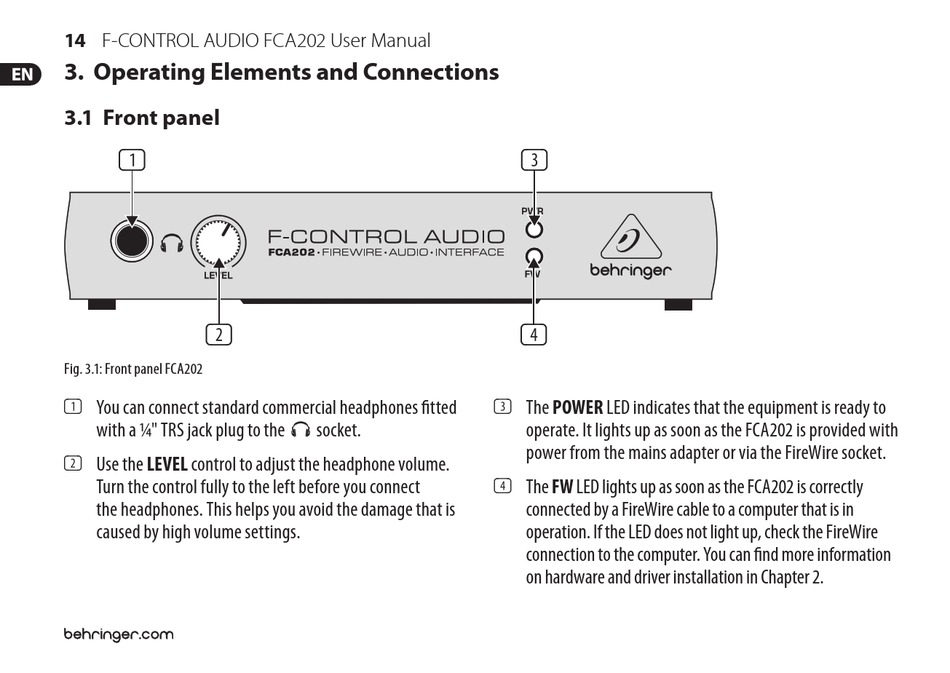

Fig. 3.1: Front panel FCA202
(1) You can connect standard commercial headphones fitted
with a ¼" TRS jack plug to the
(2) Use the LEVEL control to adjust the headphone volume.
Turn the control fully to the left before you connect
the headphones. This helps you avoid the damage that is
caused by high volume settings.
(3) The POWER LED indicates that the equipment is ready to
socket.
(4) The FW LED lights up as soon as the FCA202 is correctly
(3)
(4)
operate. It lights up as soon as the FCA202 is provided with
power from the mains adapter or via the FireWire socket.
connected by a FireWire cable to a computer that is in
operation. If the LED does not light up, check the FireWire
connection to the computer. You can find more information
on hardware and driver installation in Chapter 2.
