24 F-CONTROL AUDIO FCA202 User Manual
tip
hot (+ve)
ring
cold (-ve)
sleeve
ground/shield
tip
ring
sleeve
strain relief clamp
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
ring
cold (-ve)
tip
hot (+ve)

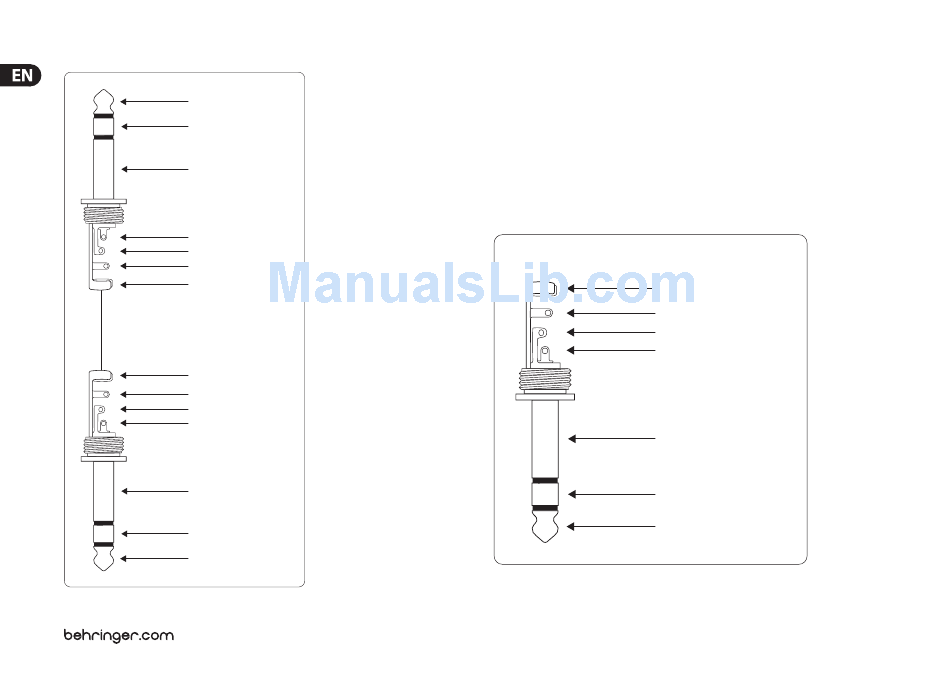

Fig. 5.2: Balanced jack cable with ¼" TRS jack plugs
5.2 Headphones socket
The FCA202 is provided with a socket for headphones. You can
connect any standard commercial headphone with a ¼" TRS
jack plug to this. For Mini TRS jack plugs, you will need a
suitable adapter. You can see the required pin allocation from
the following diagram.
¼" TRS headphones connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
ring
right signal
tip
left signal
Fig. 5.3: Stereo jack plug for a set of headphones
