Installing the graphics card (continued)
Step
Action

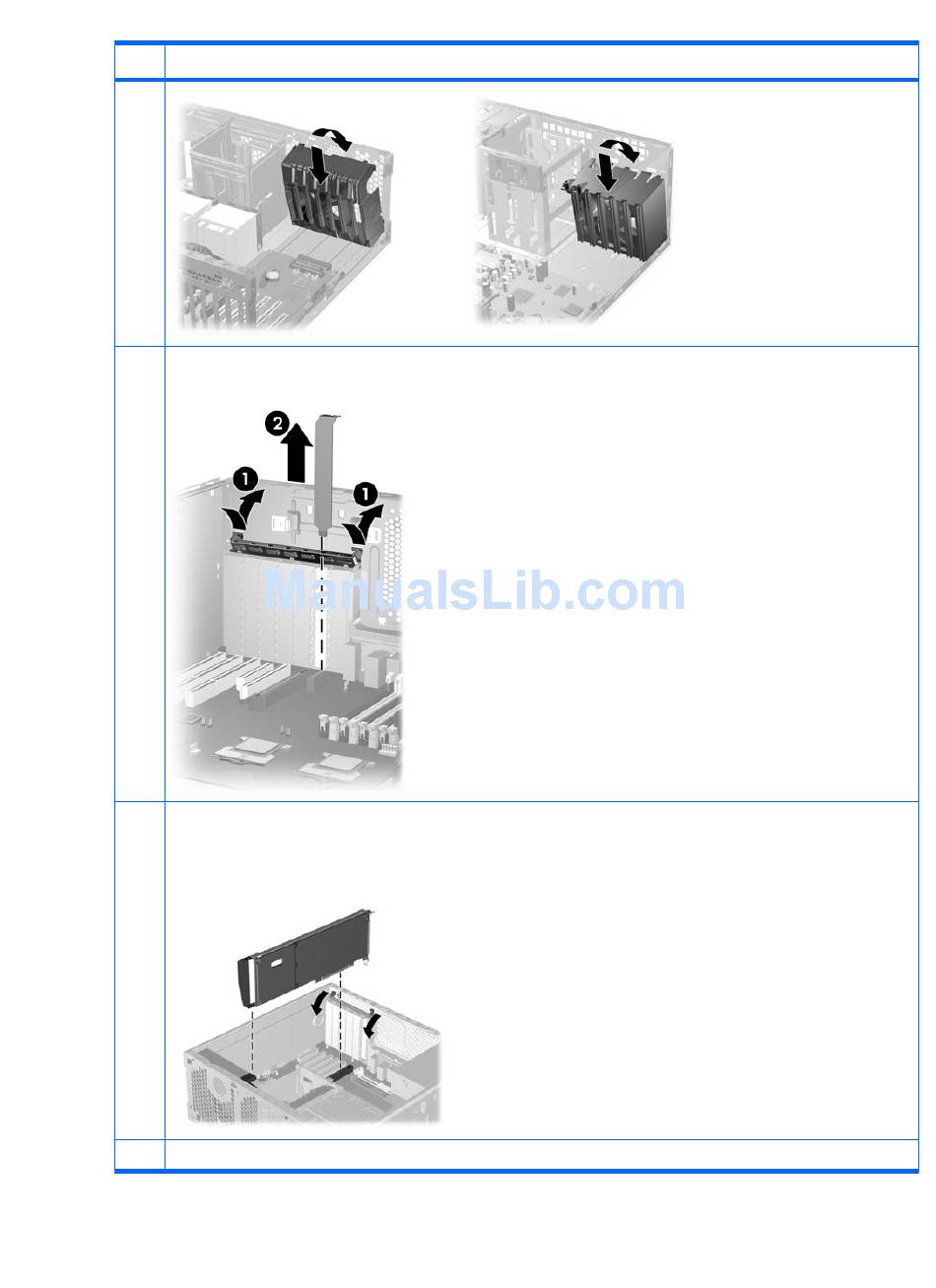

5
Release the PCI retainer levers by first pressing down on them and then out (1), and remove the applicable PCI slot
covers (2).
6
If your PCI Express graphics card fits in a card guide, lower the card into the chassis and align the card in the groove
of the card guide as shown next.
NOTE:
the card guide, lowering it into the slot.
7
Install the PCI Express graphics card (1). Verify that the keyed components of the card align with the socket.
ENWW
For convenience, rotate the graphics card bulkhead under the rear chassis lip, and then rotate the card into
Step 2—Installing the graphics card
