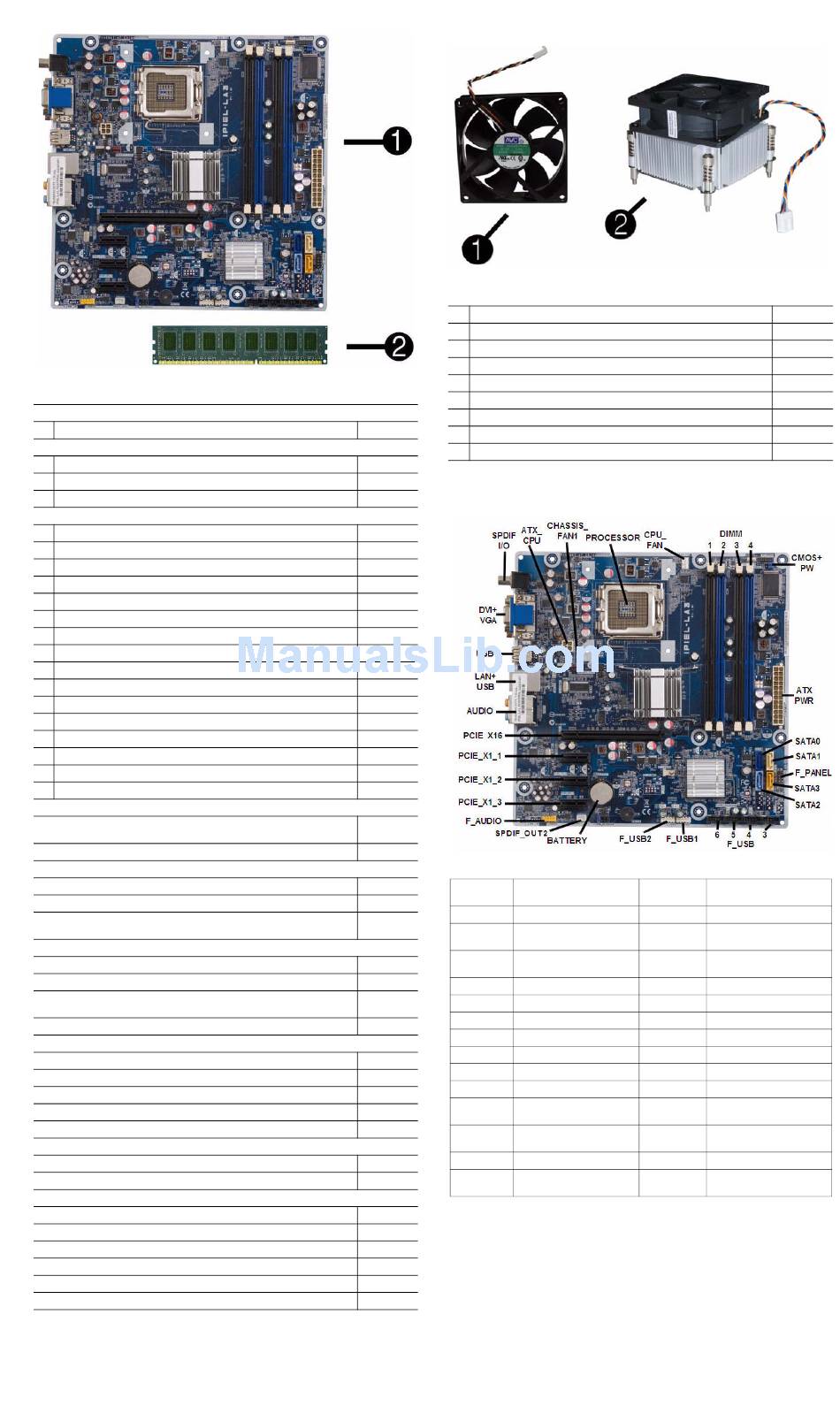

Standard and Optional Boards

System boards with thermal grease, alcohol pad, and CPU socket cover
1
System board, GL8 (includes bumper)
Memory modules (PC3-10600, CL9)
2
1 GB
*
2 GB
*
4 GB
Other boards
*
Agere International 56K LSI v92 modem, includes bracket
*
ATI Radeon HD4350 (RV710D2) PCIe x16 graphics card, 512 MB
*
ATI Radeon HD4550 (RV710) PCIe x16 graphics card, 512 MB
*
ATI Radeon HD4650 (RV730) PCIe x16 graphics card, 1 GB
*
ATI Radeon HD5450 PCIe graphics card, 1 GB
*
ATI Radeon HD5450 PCIe graphics card, 512 MB, low profile
*
ATI Radeon HD5570 PCIe graphics card, 1 GB
*
ATI Radeon HD5570 (RV830) PCIe graphics card, 2 GB
*
GeForce GT320 1-GB PCIe graphics card
*
GeForce GT315 512-MB PCIe graphics card, low profile
*
GeForce GT315 1-GB PCIe graphics card
*
GeForce GT230 1.5-GB PCIe graphics card
*
GeForce GT220 1.0-GB PCIe graphics card
*
GeForce GT210 512-MB PCIe graphics card
*
802.11b/g/n WLAN PCIe adapter
*
Intel Gigabit NIC, includes bracket
Intel Celeron Processors with alcohol pad and thermal grease:
E3400, 1-MB cache, 2.60 GHz
E3300, 1-MB cache, 2.50 GHz
Intel Core2 Quad Processors with alcohol pad and thermal grease:
Q9500, 12-MB cache, 2.83 GHz
Q8400, 4-MB cache, 2.66 GHz
Q8300, 4-MB cache, 2.50 GHz
Intel Core2 Duo Processors with alcohol pad and thermal grease:
E8500, 6-MB cache, 3.16 GHz
E7600, 3-MB cache, 3.06 GHz
E7500, 3-MB cache, 2.93 GHz
E7400, 3-MB cache, 2.80 GHz
Intel Pentium Processors with alcohol pad and thermal grease:
E6700, 2-MB cache, 3.20 GHz
E6600, 2-MB cache, 3.06 GHz
E6500, 2-MB cache, 2.93 GHz
E5500, 2-MB cache, 2.80 GHz
E5400, 2-MB cache, 2.70 GHz
Intel Quad-Core processors (8-MB L3 cache)
i7-860, 2.80-GHz processor
i5-750, 2.66-GHz processor
Intel Dual-Core processors (4-MB L3 cache)
i5-670, 3.46-GHz processor
i5-660, 3.33-GHz processor
i5-650, 3.20-GHz processor
i3-550, 3.20-GHz processor
i3-540, 3.06-GHz processor
i3-530, 2.93-GHz processor
*Not shown
HP Pro 3120 Illustrated Parts & Service Map, MT chassis

Miscellaneous Parts

1
Chassis fan
2
Heat sink, Intel class F (includes replacement thermal material)
*
Media card reader
*
Mouse, optical, Jack Black
*
Mouse, laser, Jack Black
*
Mouse, optical, Portia
*
Mouse, wireless (includes dongle)
615594-001
*
Rubber feet
*
Antenna, dual band dipole, 802.11 a/b/g/n
576109-001
*Not shown
576110-001
585157-001

System Board

490689-001
586750-001
584217-001
578174-001
601155-001
614506-001
614507-001
615792-001
615793-001
614508-001
619934-001
586381-001
614509-001
593213-001
616609-001
490367-001
602071-001
602072-001
585886-001
System Board Connectors and Jumpers (component location may vary)
602073-001
SPDIF I/O
Digital line-in/line-out audio
connector
573955-001
ATX_CPU
CPU power connector
586746-001
516901-001
CHASSIS_
System fan connector
FAN1
PROCESSOR
Processor slot
466170-001
573954-001
CPU_FAN
CPU/heat sink fan connector
586745-001
DIMM1
Memory socket 1
531988-001
DIMM2
Memory socket 2
581070-001
DIMM3
Memory socket 3
DIMM4
Memory socket 4
617840-001
CMOS+PW
CMOS jumper
602070-001
ATXPWR
Main power connector
586748-001
SATA0
1st SATA optical drive
613035-001
586743-001
SATA1
1st SATA hard drive
F_PANEL
Power switch connector
586377-001
SATA3
2nd SATA hard drive
586376-001
604616-001
604615-001
604614-001
617830-001
604613-001
600133-001
621938-001
438741-001
616605-001
480032-001
537749-001
570580-001
596410-001
596412-001
370708-001
583345-001
SATA2
2nd SATA optical drive
F_USB3-6
USB connectors
FRNT_USB1
Media card reader connector
FRNT_USB2
Front I/O panel USB connec-
tor
BATTERY
RTC battery socket
SPDIF_OUT2 SPDIF internal connector
F_AUDIO
Front panel audio connector
PCIE_X1_3
PCI Express x1 slot 3
PCIE_X1_2
PCI Express x1 slot 2
PCIE_X1_1
PCI Express x1 slot 1
PCIEX16
PCIe X16 connector
AUDIO
Double stack audio connec-
tor
LAN+USB
Stacked RJ-45/USB connec-
tors
USB
USB connector
DVI+VGA
Stacked DVI/VGA connec-
tor
