Lift The Load Plate; Remove The Protective Socket Cover - Intel BOXDG41MJ Product Manual

Intel Desktop Board DG41MJ Product Guide

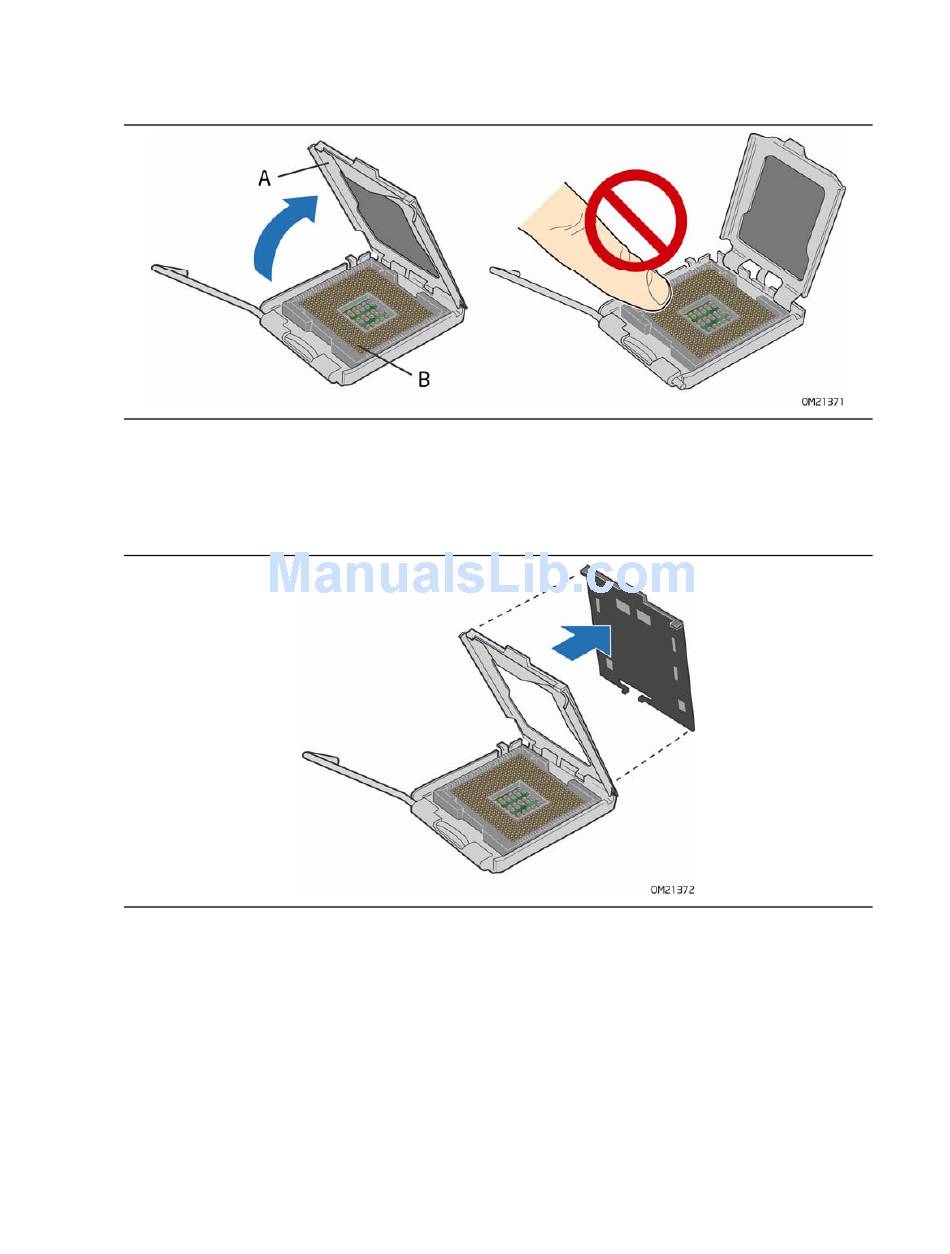

3. Lift the load plate (Figure 7, A). Do not touch the socket contacts (Figure 7, B).
4. Remove the plastic protective socket cover from the load plate (Figure 8). Do not
discard the protective socket cover. Always replace the socket cover if the
processor is removed from the socket.
28
Figure 7. Lift the Load Plate
Figure 8. Remove the Protective Socket Cover
