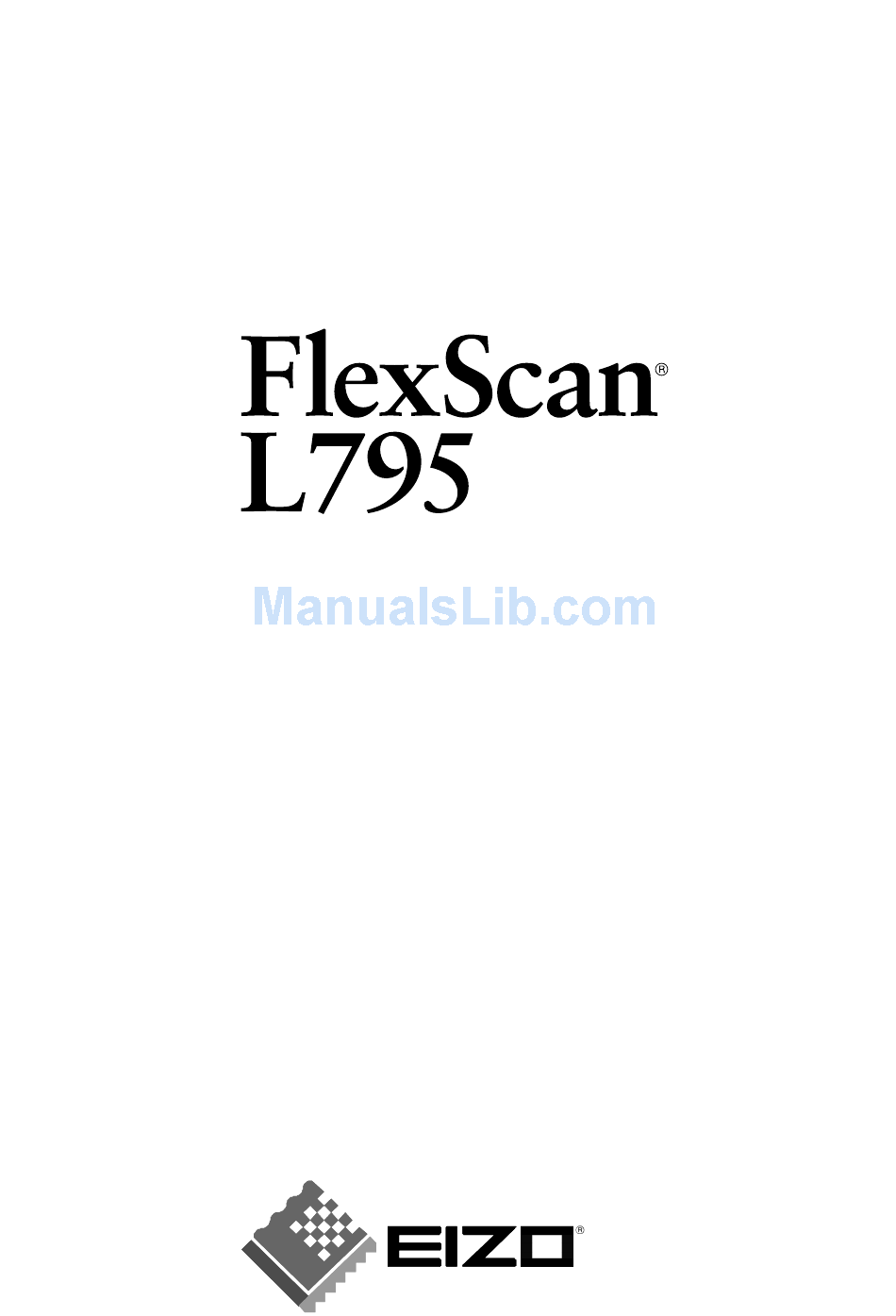

  • Page 1 User’s Manual Color LCD Monitor...

  • Page 2: Safety Symbols

    Indicates a prohibited action. Indicates to ground for safety. Copyright© 2003 EIZO NANAO CORPORATION All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS ... 4 1. INTRODUCTION ... 9 1-1. Features ...9 1-2. Package Contents...9 1-3. Controls & Connectors ...10 2. CABLE CONNECTION ... 12 2-1. Before Connecting ...12 2-2. Connecting the Signal Cable ...13 2-3. Connecting Two PCs to the Monitor ...15 3.

  • Page 4: Precautions

    English PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. •...
  • Page 5 WARNING Keep small objects or liquids away from the unit. Small objects accidentally falling through the ventilation slots into the cabinet or spillage into the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid falls/spills into the cabinet, unplug the unit immediately. Have the unit checked by a qualified service engineer before using it again.
  • Page 6 English WARNING The equipment must be connected to a grounded main outlet. Not doing so may result in fire or electric shock. Use the correct voltage. The unit is designed for use with a specific voltage only. Connection to another voltage than specified in this User’s Manual may cause fire, electric shock, or equipment damage.
  • Page 7 CAUTION Handle with care when carrying the unit. Disconnect the power cord and cables when moving the unit. Moving the unit with the cord attached is dangerous. It may result in injury. When handling the unit, grip the bottom of the unit firmly with both hands ensuring the panel faces outward before lifting.

  • Page 8: Lcd Panel

    English LCD Panel In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, use of a monitor in lower brightness is recommended. The screen may have defective pixels. These pixels may appear as slightly light or dark area on the screen.

  • Page 9: Introduction

    • Please retain the packing materials for future transference. • The EIZO USB cable is used when using the software, “ActiveRotation” application (for Windows) in the EIZO LCD Utility Disk. (Refer to the readme.txt in the EIZO LCD Utility Disk for the details.) Digital: 59 - 61 Hz (VGA text: 70 Hz) •...

  • Page 10: Controls & Connectors

    English 1-3. Controls & Connectors Front Control Panel SIGNAL 1 - 2 (1) ScreenManager (2) Main Power Button (3) Input Signal Selection Button (4) PinP (Picture in Picture) Button (5) Auto Adjustment Button (6) Enter Button (7) Control Buttons (Left, Down, Up, Right) (8) Power Button (9) Power Indicator Blue...
  • Page 11 2855 Campus Drive, San Mateo, CA 94403 USA Tel.: 800-650-4242, x3348, Intl: 650-572-2700, x3348 Fax: 650-572-9675 http://www.kensington.com USB upstream port is used when using the “ActiveRotation” application (for Windows) in the EIZO LCD Utility Disk (refer to the Readme file). (10) (12) (11) (13) (14)(15)(16)

  • Page 12: Cable Connection

    English 2. CABLE CONNECTION 2-1. Before Connecting Before connecting your monitor to the PC, change the display screen settings (resolution p. 51) and frequency) in accordance with the charts below. NOTE • When your computer and display support VESA DDC, the suitable resolution and the refresh rate are set by just plugging your display into the computer without any manual settings.

  • Page 13: Connecting The Signal Cable

    2-2. Connecting the Signal Cable NOTE • Be sure that the Power buttons of both the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC. After connecting, secure the connection with the screw-in fasteners.

  • Page 14: The Monitor

    English Plug the power cord into the power connector on the rear of the monitor. Lead the power cord and signal cable into the cable holder at rear of the monitor. NOTE • The cables are recommended to lead with slight sag for the smooth motion of the stand and the Portrait/Landscape display.

  • Page 15: Connecting Two Pcs To The Monitor

    Turn on the monitor's main power and then switch on the PC's power. The monitor’s power indicator will light up (blue). If an image does not appear, refer to the “TROUBLESHOOTING” (p. 42) for advice. Whenever finished, turn off the PC and the monitor. When using the monitor in portrait style, refer to the “6.
  • Page 16 English Selecting the Active Input The Input signal selection button on the control panel can be used to select either Signal 1 or Signal 2 as the active input at any time. Every time the button is pressed, the input changes.

  • Page 17: Screenmanager

    3. ScreenManager 3-1. How to use the ScreenManager Entering the ScreenManager Press the Enter button once to display the main menu of the ScreenManager. [Main Menu] Making Adjustments and Settings (1) Select the desired sub menu icon using the Control buttons and press the Enter button.

  • Page 18: Screenmanager Adjustments And Settings

    Custom Brightness/ Mode Contrast Temperature Saturation Gain Reset sRGB Brightness Standard Clip DVI DMPM VESA DPMS EIZO MPMS Screen Size Border Intensity Input Priority Off Timer Beep Menu Menu Size Settings Menu Position Menu Off Timer Translucent Orientation Power Indicator...

  • Page 19: Useful Functions

    Useful Functions Adjustment Lock Use the “Adjustment Lock” function to prevent any accidental changes. Locked function Unlocked function [To lock] (1) Switch off the monitor’s power by the power button on the control panel. (2) Press on the Auto adjustment button while switching on the monitor’s power. [To unlock] (1) Switch off the monitor’s power by the power button on the control panel.

  • Page 20: Eizo Logo Appearing Function

    (2) Select “Disable”. EIZO Logo Appearing Function When switching on the power button on the control panel, the EIZO logo is displayed for a while. If you desire to display or undisplay this logo, use this function. (Default is logo appearing.) [To undisplay] (1) Switch off the monitor’s power by the Power button on the control panel.

  • Page 21: Adjustment

    Install the “Screen adjustment program” Having read the “Readme.txt” file, install and run the “Screen adjustment program” in the enclosed EIZO LCD utility disk. Step by step adjustment is provided by the wizard guide. (If using the Windows, the program can be directly run from the menu screen of the EIZO LCD utility disk.)
  • Page 22 English NOTE • If the user’s operating system has no utility disk (e.g. OS/2), we recommend setting the desktop pattern to that as shown in the diagram. Adjust by using <Screen> menu in the ScreenManager. (1) Vertical bars appear on the screen →...
  • Page 23 (3) The screen position is not incorrect. → Use the <Position> adjustment. The correct displayed position of the monitor is decided because the number and the position of the pixels are fixed. The <Position> adjustment moves the image to the correct position. Select <Position>...
  • Page 24 English Adjust the output signal range (Dynamic Range) of the signal. → Use the <Range Adjustment> (p. 51). This controls the level of output signal range to display the whole color gradation (256 colors). [Procedure 1] Select the <Range Adjustment>. The message “Your setting will be lost if you press AUTO button.”...

  • Page 25: Displaying A Low Resolutions

    4-2. Displaying a Low Resolutions The lower resolutions are enlarged to full screen automatically. Using the <Screen Size> function in the <Others> menu enables to change the screen size. Change the screen size when displaying a low resolution. → Select the <Screen Size>. Select the <Screen Size>...
  • Page 26 English Smooth the blurred texts of the enlarged screen. → Switch the <Smoothing> setting. Select the suitable level from 1 – 5 (Soft – Sharp). Select <Smoothing> in the <Screen> menu and adjust by using the right and left buttons. NOTE •...

  • Page 27: Color Adjustment

    4-3. Color Adjustment The <ColorManagement> menu in the ScreenManager enables to change the color of the screen. By using the <Color Mode>, the adjustment mode can be selected from <Custom mode> (to adjust the color settings according to your preference) and <sRGB> mode.
  • Page 28 English To set the color temperature (p. 51) → Set the <Temperature>. The <Temperature> can be set from 4,000 K to 10,000 K, in 500 K increments (including 9,300 K). Default setting is off (normal white). NOTE • The values shown in the Kelvin are available only as a reference tool. •...

  • Page 29: Power-Save Setup

    Analog Input This monitor complies with the <VESA DPMS> (p. 51) standard and adopts a power saving method, <EIZO MPMS> (p. 50), which works with a blank screen (totally black screen) like “Blank Screen” ScreenSaver software. To use the PC’s power saving system (VESA DPMS ).

  • Page 30: Digital Input

    English To set the power save with ScreenSaver (EIZO MPMS) software [Procedure] (1) Set the PC’s appropriate ScreenSaver settings or blank the screen (totally black screen). (2) Select “EIZO MPMS” in the <PowerManager> menu. [Power saving system] Operation Blank the screen...

  • Page 31: Activeshot Function

    5. ActiveShot Function When two PCs are connected to the monitor, ActiveShot (Picture in Picture) function allows you to display both screen images on the Main window and Sub window at the same time. About connecting two PCs to a monitor, see p. 15. [Example] Signal1 5-1.

  • Page 32: Sub Window Settings

    English 5-2. Sub Window Settings Display Mode <Standard> and <Clip> modes are available for displaying the Sub window (refer to following figures) for displaying the Sub window. The mode is set on the <Picture in Picture> menu of ScreenManager. [Example] <Standard>...
  • Page 33 To set the Contrast → Select <Window Contrast>. This controls the brightness for the each color (red, blue and green) at the same time. Select <Window Contrast> and adjust by using the right and left buttons. <Clip> Mode Displaying a certain part of the screen image in the Sub window. Select <Clip>...

  • Page 34: Settings Using The Control Buttons

    English To adjust the position → Select <Window Position>. This adjusts the position of the Sub window. Select <Window Position> and adjust the position by using the up, down, right and left buttons. To set the Contrast → Select <Window Contrast>. This controls the brightness for the each colo7r (red, blue and green) at the same time.

  • Page 35: Activerotation Function

    Refer to Web site of EIZO NANAO CORPORATION. Using the “ActiveRotation” Application (for Windows) The application allows you to change the display orientation of the monitor to portrait easily. Refer to the readme.txt in the EIZO LCD Utility Disk for the details. English Portrait...
  • Page 36 English Using the ScreenManager (1) Select “Portrait (HW)” in the <Orientation> menu of the ScreenManager. (2) Turn the monitor 90 degrees. (3) Restart the PC. (If the Start button of the Windows is hidden, press the [Windows] key or [Ctrl], [Alt] and [Delete] keys at the same time.) (4) The display orientation will be changed to portrait.

  • Page 37: Recommended Functions

    7. Recommended Functions Use the following functions according to need. Function Adjust the screen image when displaying low resolutions. Adjust the screen (the clock, phase, position and resolution) automatically. Set the monitor’s off timer to on or off. Lock the adjusted settings. Change the display orientation of the monitor to portrait.

  • Page 38: Making Use Of Usb (Universal Serial Bus)

    • PC equipped with USB ports or another USB hub connected to the USB compliant PC • Windows 98/2000 // Mac OS 8.5.1 or later • EIZO USB Cable (Enclosed) NOTE • The USB hub function may not work properly depending on the PC or peripherals.
  • Page 39 After setting up, the monitor’s USB hub is available for connecting USB compliant peripherals to the downstream ports of the monitor. Connecting Examples Keyboard Monitor Mouse Downstream Downstream ports: Connect the cables from USB compliant peripherals such as a mouse, keyboard, etc. Keyboard Printer 8.

  • Page 40: Attaching An Arm

    English 9. ATTACHING AN ARM The LCD monitor can be used with an arm or stand by removing the tilt stand and attaching the arm stand to the LCD monitor. Using our optional arm or stand is recommended. (Ask your local dealer for information.) NOTE •...
  • Page 41 English Attach an arm stand to the LCD monitor securely. Arm-stand 4 Mounting Screws: M4 x 15 (mm) BZn/Fe 9. ATTACHING AN ARM...

  • Page 42: Troubleshooting

    English 10. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. • No picture problems → See No.1 ~ No.2 • Imaging problems → See No.3 ~ No.13 • Other problems → See No.14 ~ No.19 Problems 1.
  • Page 43 Problems 3. Display position is incorrect. 4. Screen image is smaller or larger than the actual screen images. 5. Vertical bars of distortion appear. 6. Horizontal bars of distortion appear. 7. Letters and lines appear blurred. 8. Distortion appears like the figure below.
  • Page 44 English Problems 11. The screen has defective pixels (e.g. slightly light or dark). 12. Fingerprints remain on the screen. 13. The noise appears on the screen. 14. The <Smoothing> cannot be selected. 15. The Enter button does not operate. 16. The Auto adjustment button does not operate.
  • Page 45 Problems 17. Frequency does not change after installing “Monitor information file” in the attached utility disk on Windows 98/2000/XP. 18. The ActiveShot function cannot be operated. 19. The ActiveRotation function cannot be operated. Points to check with possible solutions Use the graphics board’s utility software to change the input signal frequency.

  • Page 46: Cleaning

    English 11. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel.

  • Page 47: Specifications

    12. SPECIFICATIONS LCD Panel Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock (Max.) Display Colors Display Area Power Supply Power Consumption Input Connector Analog Input Signal (Sync) Analog Input Signal (Video) Input Signal (Digital) Signal registration Plug & Play Dimensions Dimensions (without stand) Weight...
  • Page 48 English Default settings Contrast Brightness Smoothing ColorManagement PowerManager Screen Size Input Priority Menu Off Timer Menu Settings Beep Orientation Power Indicator Language Beeper settings Short beep Long beep 4 short beeps 2 short beeps every 15 sec. Dimensions 12. SPECIFICATIONS Analog input 100% 100%...

  • Page 49: Pin Assignment

    Pin Assignment D-Sub mini 15 pin connector Signal Red video Green video Blue video Ground No pin 10 Ground Shorted 15 DVI-I Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Pin No.

  • Page 50: Glossary

    (EIZO Monitor PowerManager Signaling) EIZO MPMS, “EIZO Monitor PowerManager Signaling” also enables power saving on the monitor side. EIZO MPMS recognizes video signals from the PC when the PC is in a power saving mode, and reduces energy consumption of the monitor.
  • Page 51 The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO L795 display panel consists of 1280 horizontal pixels and 1024 vertical pixels. At a resolution of 1280 x 1024, all pixels are displayed as a full screen.

  • Page 52: Appendix/Anhang/Annexe

    APPENDIX/ANHANG/ANNEXE Preset Timing Chart for Analog input Timing-Übersichten für Analog Eingang Synchronisation des Signaux pour Analog numerique Based on the signal diagram shown below 25 factory presets have been registered in the monitor's microprocessor. Der integrierte Mikroprozessor des Monitors unterstützt 25 werkseitige Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme).
  • Page 53 [Applicable to gray cabinet version only.] Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.
  • Page 54 [Applicable to black cabinet version only] Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.
  • Page 55 Environmental Requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.

  • Page 56: Fcc Declaration Of Conformity

    Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord - Shielded Signal Cable (enclosed) This Class B digital apparatus complies with Canadian ICES-003.
  • Page 57 Vous trouvez tous les renseignements pour le sujet de recyclage sur la page WEB de I’UNION DE BRAN CHE SWICO. http://www.eizo.com/cotact/index.html Recycling Information for customers in USA: All recycling information is placed in the EIZO Nanao Technologies, Inc’s website. http://www.eizo.com/contact/index.html Återvinnings information för kunder i Sverige: All information om återvinning finns på Eizo Nordics hemsida:...
