All the functions below are remote control white area/side key possible operations.
As for the Pro-Adjust buttons (black colored area), refer to the RS232C section, from P.27, the OSD
becomes different from Normal adjustment mode.

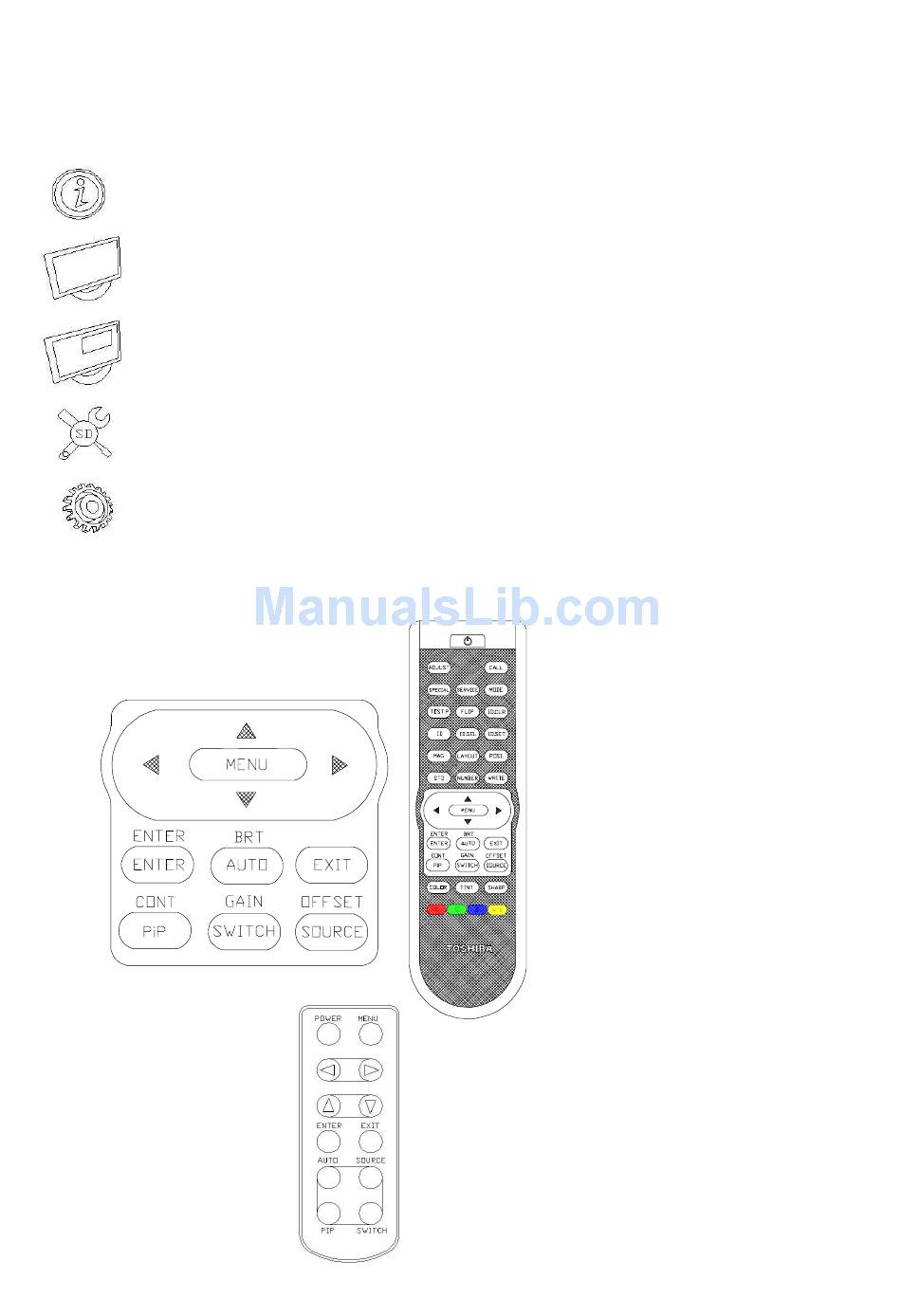

Main Menu: Contains 5 different page icons to make adjustments
Press the [MENU] then OSD picture appears, this icon indicates "information" page.
No adjustment function, just to see the signal received.
This icon indicates "Main input" related place. Input selection or main picture adjustment
is possible. As for the adjustment, Brightness, Contrast, Hue, Saturation, Flesh-Tone and
Black Level can be adjusted.
There are a total of 5 menus, Information Menu, Display Menu, PIP Control Menu,
OSD control Menu and Others Menu. Each these menus has branch adjustments for
picture quality. The 3
The 4
th
control.
The bottom most icon is for factory reset or some other items. In this page, a language
selection in which English, Japanese and Chinese can be set, and some more items be
found. These items are explained in the reference chart on the next page.
Wireless remote control,
operation keys with
enlarged (above picture)
silver colored background,
Normal adjustments area is
shown.
These buttons have partially
similar operation with old
wireless remote control,
shown at right.
from top, this icon has PIP selection, adjustments and controls.
rd
icon indicates OSD adjust mode, On-Screen-Display Menu, size and position
For the adjustments explained
from this page up to upper part
of page 26, only enlarged, silver
colored area, these keys are used.
Actually, [MENU], [UP],
[DOWN], [LEFT], [RIGHT],
[ENTER] and [EXIT] are used.
This is normal adjustment area.
These keys in black colored area,
they are Pro-Adjust area and
different OSD will appear which
is the same to RS-232C control
operation.
During the adjustment operation
in this normal area, do not use
colored area keys, this Pro-adjust
operation method is different from
normal mode, thus, once [MENU]
has pressed, then black area keys
are disabled.
