User's Manual

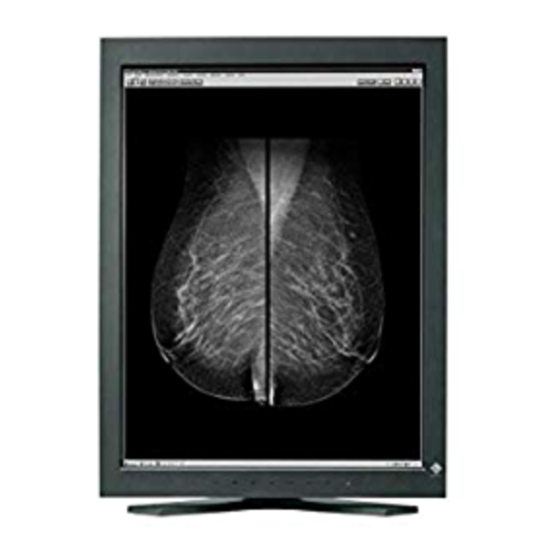

Monochrome LCD Monitor
It shall be assured that the final system is in compliance to
IEC60601-1-1 requirements.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IEC60601-1-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eizo IEC60601-1-1

Summary of Contents for Eizo IEC60601-1-1

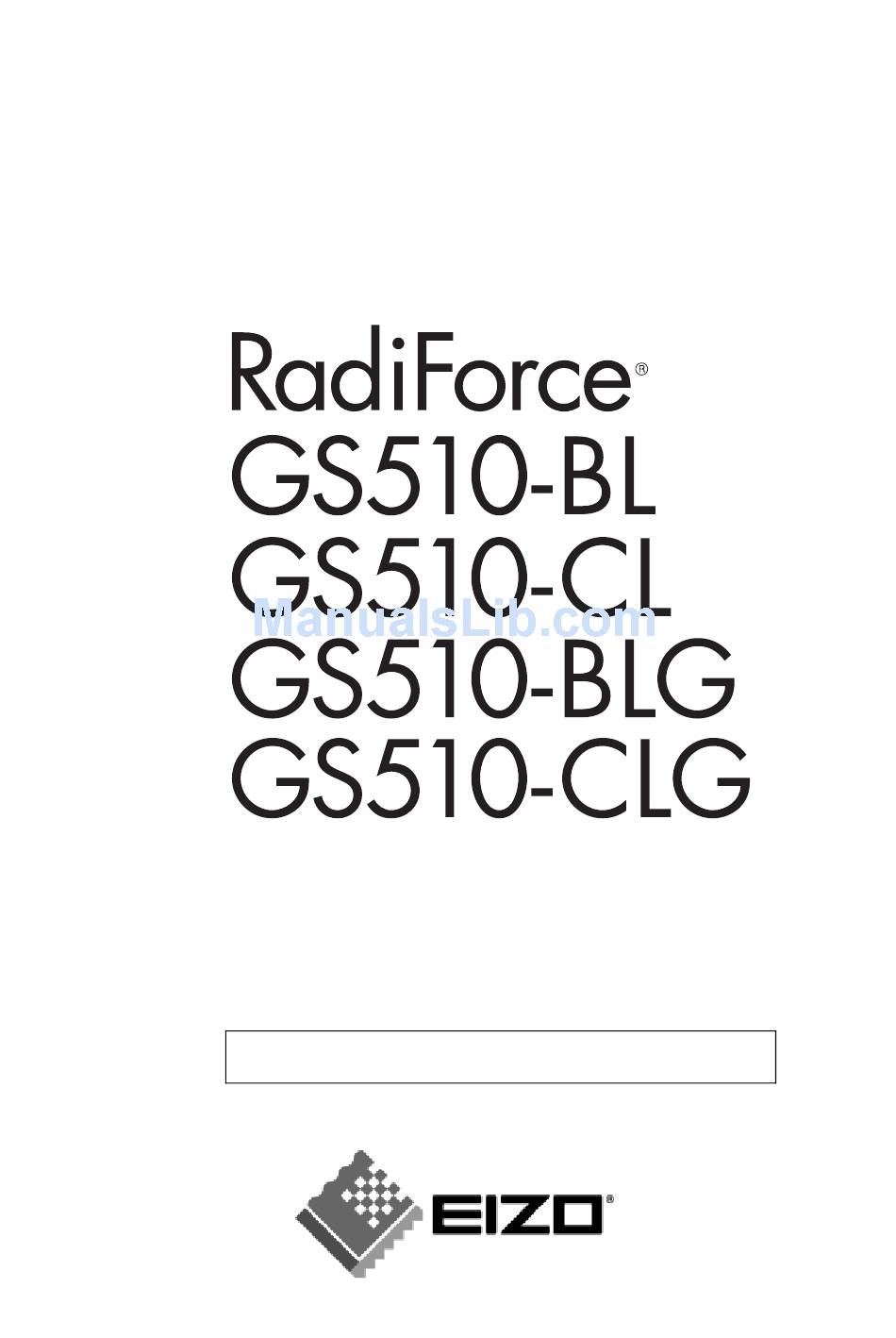

  • Page 1 User’s Manual Monochrome LCD Monitor It shall be assured that the final system is in compliance to IEC60601-1-1 requirements.

  • Page 2: Safety Symbols

    Copyright© 2006 EIZO NANAO CORPORATION All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS ... 4 1. INTRODUCTION ... 9 1-1. Features ...9 1-2. Package Contents...9 1-3. Controls & Connectors ...10 2. CABLE CONNECTIONS... 12 3. MENUS & FUNCTIONS ... 15 3-1. ScreenManager ...15 3-2. Other Useful Functions ...17 3-3. Power-save Setup ...19 4.

  • Page 4: Precautions

    English PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. •...
  • Page 5 WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
  • Page 6 English WARNING To disconnect the power cord, grasp the plug firmly and pull. Tugging on the cord may damage and result in fire or electric shock. The equipment must be connected to a grounded main outlet. Not doing so may result in fire or electric shock. Use the correct voltage.
  • Page 7 WARNING Do not touch a damaged LCD panel directly with bare hands. The liquid crystal which leaks from the panel is poisonous if it enters the eyes or mouth. If any part of the skin or body comes in direct contact with the panel, please wash thoroughly.

  • Page 8: Lcd Panel

    English LCD Panel The screen may have defective pixels. These pixels may appear as slightly light or dark area on the screen. This is due to the characteristics of the panel itself, and not the product. The backlight of the LCD panel has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer.

  • Page 9: Introduction

    • USB (Universal Serial Bus) hub support (p.20) • Utility software “ScreenManager Pro for Medical”, which enables control of the monitor from a Windows PC with a mouse or keyboard (refer to the EIZO LCD Utility Disk). • Monitor stand adjustable for different heights •...

  • Page 10: Controls & Connectors

    English 1-3. Controls & Connectors Front (1) ENTER Enter Switch Directing Switches (Left, Down, Up, Right) Power Switch Power Indicator Green Orange Flashing orange (2 times for each) Flashing orange slowly These switches can be changed to Up, Left, Right and Down in case of selecting “Landscape” in <Orientation>...
  • Page 11 Side / Rear USB upstream port (x 1) USB downstream ports (x 2) DVI-D input connector Power connector Security lock slot (10) Monitor stand with adjustable height (detachable) (11) Main Power Switch Allows for connection of a security cable. This lock supports Kensington’s MicroSaver security system.

  • Page 12: Cable Connections

    English 2. CABLE CONNECTIONS NOTE • Be sure that the power switches of both the PC and the monitor are OFF. • Refer also to the PC user's manual when connecting the monitor. Rotate the monitor ninety degrees counter-clockwise into the portrait position.
  • Page 13 Connect the power cord to the power connector on the rear of the monitor. Thread the power cord and signal cable through the cable holder on the rear of the monitor stand. NOTE • When threading the cables through the cable holder, lead them to the cable entrance side and pinch the projection to open the cable entrance.
  • Page 14 English Turn on the PC’s power. If an image does not appear, refer to “6. TROUBLESHOOTING” (p.23) for additional advice. When finished, turn off the PC and the monitor. NOTE • Adjust the brightness of the screen depending on the brightness of your environment.

  • Page 15: Menus & Functions

    3. MENUS & FUNCTIONS 3-1. ScreenManager Screen adjustments and settings can be performed with the monitor controls. ScreenManager main menu How to use the ScreenManager [Entering the ScreenManager] (1) Touch the enter switch. [Making adjustments and settings] (1) Select the desired submenu icon with the directing switches and touch the enter switch.
  • Page 16 English ScreenManager Menus and Settings The following table briefly explains each of the menus and settings in the ScreenManager. Main menu Screen Brightness Unlock LUT Setting Default / Normal PowerManager DVI DMPM Others Off Timer Menu Settings Orientation Power Indicator Reset Information Information...

  • Page 17: Other Useful Functions

    3-2. Other Useful Functions Adjustment Lock Use this function to prevent any accidental changes to the monitor settings. The following table shows which functions the adjustment lock affects. Locked functions [How to lock] (1) Turn off the monitor power by touching the power switch. (2) Touch the power switch while touching the enter switch.

  • Page 18: Power Indicator

    English Power Indicator Use the function to keep the power indicator without light while the monitor is operational. (The power indicator is set by default to light when the power is turned on.) [Procedure] (1) Select <Power Indicator> in the ScreenManager <Others> menu. (2) Select “Disable”.

  • Page 19: Power-Save Setup

    3-3. Power-save Setup Use the <PowerManager> menu in the ScreenManager to configure the power-save setup. This monitor complies with the “DVI DMPM” (p.30). NOTE • Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting the monitor from the power supply is recommended to save energy completely.

  • Page 20: Making Use Of Usb (Universal Serial Bus)

    • PC equipped with USB ports or another USB hub connected to the USB compliant PC • Windows 98/2000/Me/XP // Mac OS 8.5.1 or later • EIZO USB Cable (MD-C93) NOTE • The USB hub function may not work properly depending on the PC, OS or peripherals.
  • Page 21 ScreenManager Pro for Medical (for Windows) For further details about the “ScreenManager Pro for Medical (for Windows)”, refer to the EIZO LCD Utility Disk. Monitor Keyboard 4. MAKING USE OF USB (Universal Serial Bus)

  • Page 22: Attaching An Arm

    English 5. ATTACHING AN ARM The LCD monitor can be used with an arm by removing the tilt stand and attaching the arm or stand to the LCD monitor. NOTE • If you will use the arm or stand of other manufacturers, confirm the followings to the manufacturers before selecting.

  • Page 23: Troubleshooting

    6. TROUBLESHOOTING If a problem persists even after applying the remedies suggested below, contact an EIZO dealer. • No picture problems → See No.1 ~ No.2 • Imaging problems • Other problems • USB problems Problem 1. No picture • Indicator status: Off •...

  • Page 24: 24 6. Troubleshooting

    English Problem 6. Fingerprints remain on the screen. 7. The following message appears and the adjustment controls are not available when touching the switches on the control panel. 8. The ScreenManager main menu does not operate. The control panel does not operate. 10.
  • Page 25 Try connecting the peripheral to another USB downstream port. If the problem is solved by doing this, contact an EIZO dealer. (For details, refer to the manual of the PC.) Try executing the following method. - Restarting the PC...

  • Page 26: Cleaning

    English 7. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel.

  • Page 27: Specifications

    8. SPECIFICATIONS LCD Panel GS510-BL GS510-CL GS510-BLG GS510-CLG Viewing Angle Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock (Max.) Gray Scale Recommended Brightness Display Area Power Supply Power Consumption Input Connector Input Signal Plug & Play Dimensions With stand Without stand Weight...
  • Page 28 EIZO “RP-901” EIZO “LS-HM1-D”: Dual Height Adjustable Stand EIZO “LA-131-D” : LCD Monitor Flexible Arm EIZO “LA-030-W” : Wall Mount Arm for LCD Monitor EIZO “LA-011-W” : Wall Mount Arm for LCD Monitor 8bit and 10bit monochrome signals supported •...

  • Page 29: Pin Assignment

    Pin Assignment DVI-D Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Pin No. Signal TMDS Data2- TMDS Data2+ TMDS Data2/4 Shield DDC Clock (SCL) DDC Data (SDA) Analog Vertical Sync USB Port...

  • Page 30: Glossary

    The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO GS510-BL/CL/BLG/CLG display panel consists of 2048 horizontal pixels and 2560 vertical pixels. At a resolution of 2048 x 2560, all pixels are displayed as a full screen.

  • Page 31: Fcc Declaration Of Conformity

    Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord - Shielded Signal Cable (enclosed) This Class B digital apparatus complies with Canadian ICES-003.
  • Page 32 Vous trouverez toutes les informations sur le recyclage dans les sites Web suivants: Återvinningsinformation för kunder i EU: All information om återvinning finns på följande webbsidor: http://www.swico.ch http://www.eizo.de http://www.eizo.se Recycling Information for customers in USA: All recycling information is placed in the Eizo Nanao Technologies, Inc.'s website. http://www.eizo.com...

This manual is also suitable for:

Radiforce gs510-blRadiforce gs510-clRadiforce gs510-blgRadiforce gs510-clg
