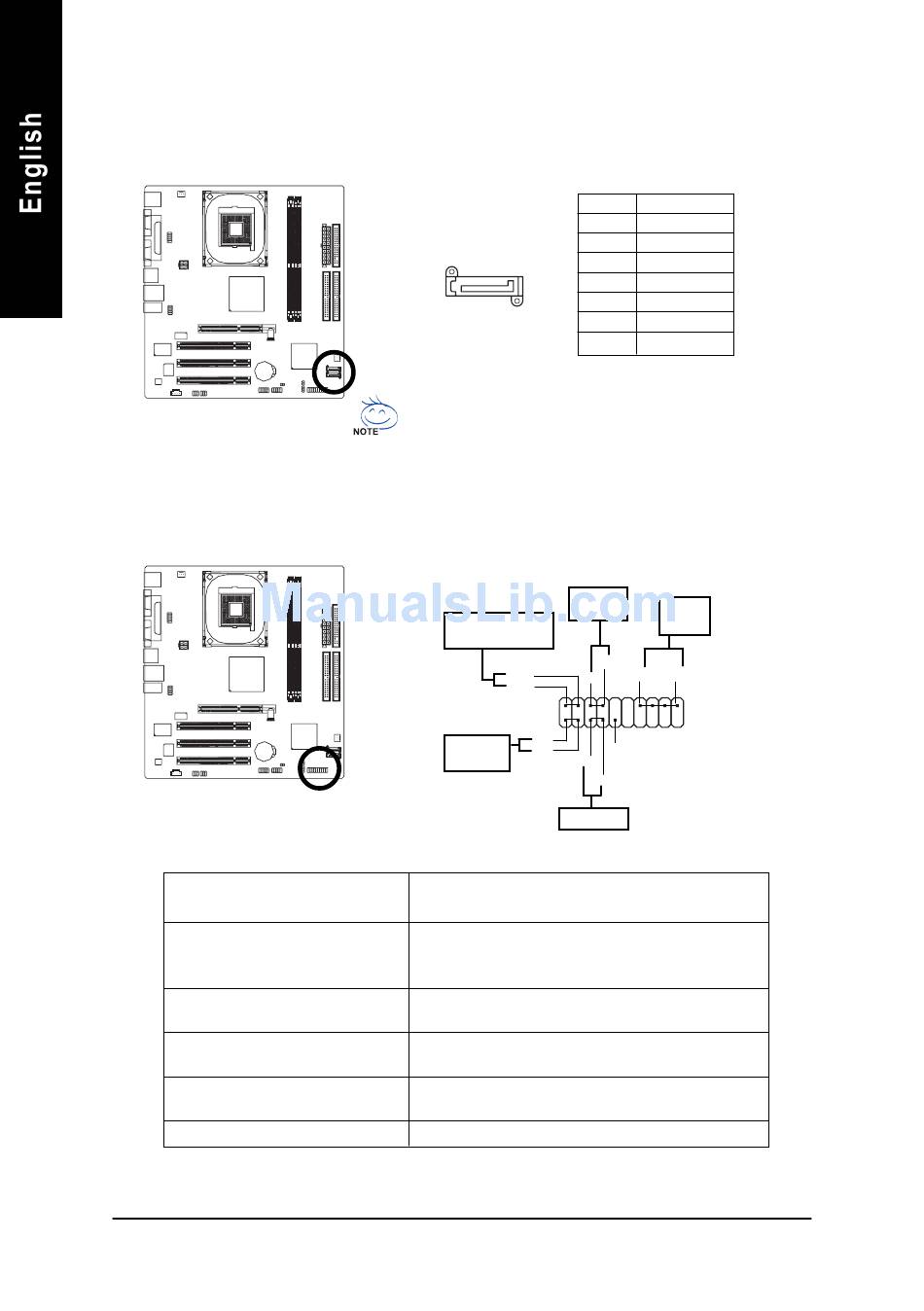

7) SATA0/SATA1 (Serial ATA Connector, Controlled by SiS964)
Serial ATA can provide 150MB/s transfer rate. Please refer to the BIOS setting for the Serial ATA
and install the proper driver in order to work properly.
8) F_PANEL (2x10 pins connector)
Please connect the power LED, PC peaker, reset switch and power switch etc. of your chassis front
panel to the F_PANEL connector according to the pin assignment above.
HD (IDE Hard Disk Active LED)
SPK (Speaker Connector)
RST (Reset Switch)
PW (Soft Power Connector)
MSG (Message LED/Power/
Sleep LED)
NC
8S661FXMP-RZ Motherboard
1
7
S_ATA
(Control by SiS964)
For more detailed Serial ATA RAID setup information, please
visit our website at http:\\www.gigabyte.com.tw.
Soft Power
Connector
Message LED/Power/
Sleep LED
MSG-
MSG+
2
1
HD+
IDE Hard Disk
HD-
Active LED RST-
Reset Switch
Pin 1: LED anode(+)
Pin 2: LED cathode(-)
Pin 1: VCC(+)
Pin 2- Pin 3: NC
Pin 4: Data(-)
Open: Normal Operation
Close: Reset Hardware System
Open: Normal Operation
Close: Power On/Off
Pin 1: LED anode(+)
Pin 2: LED cathode(-)
NC
- 16 -
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Speaker
Connector
PW-
SPK-
SPK+
PW+
20
19
NC
RST+
