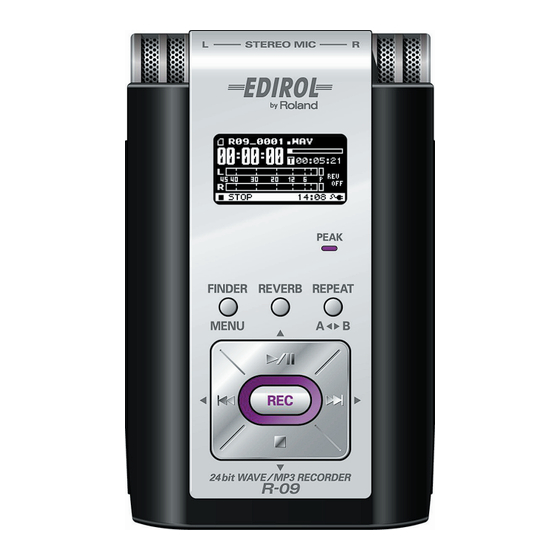

Roland R-09 Insert

Inserting Batteries
Forcing the cover open can cause damage.

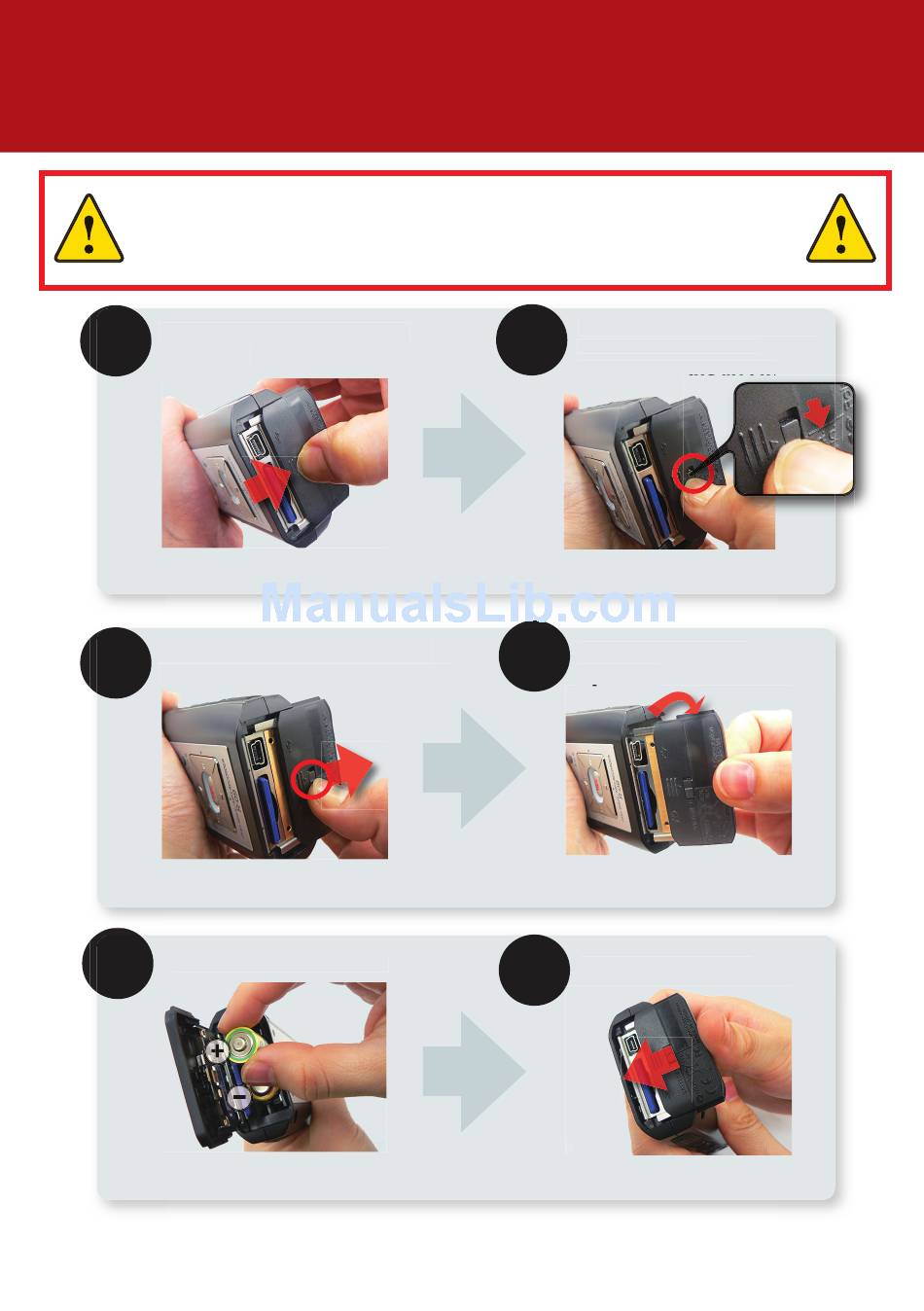

Please follow the procedure below to open the cover.
1
Slide the bottom cover
halfway.
* The cover locks in this position.
3
With the cover unlocked,
slide the cover some more.
* The cover slides only to the position in
the photograph.
5
Insert the batteries.
* Be sure the positive and negative
terminals are oriented correctly.
☞
See p. 15 of the Owner's Manual for more details on inserting batteries.
2
Unlock the cover by sliding
the lock down in the
direction of the arrow.
* Release fi ngers from lock and it springs
back to the locked position.
4
Lift the cover to
open it.
6
Close the cover.
