Page 1: Preparations For Recording

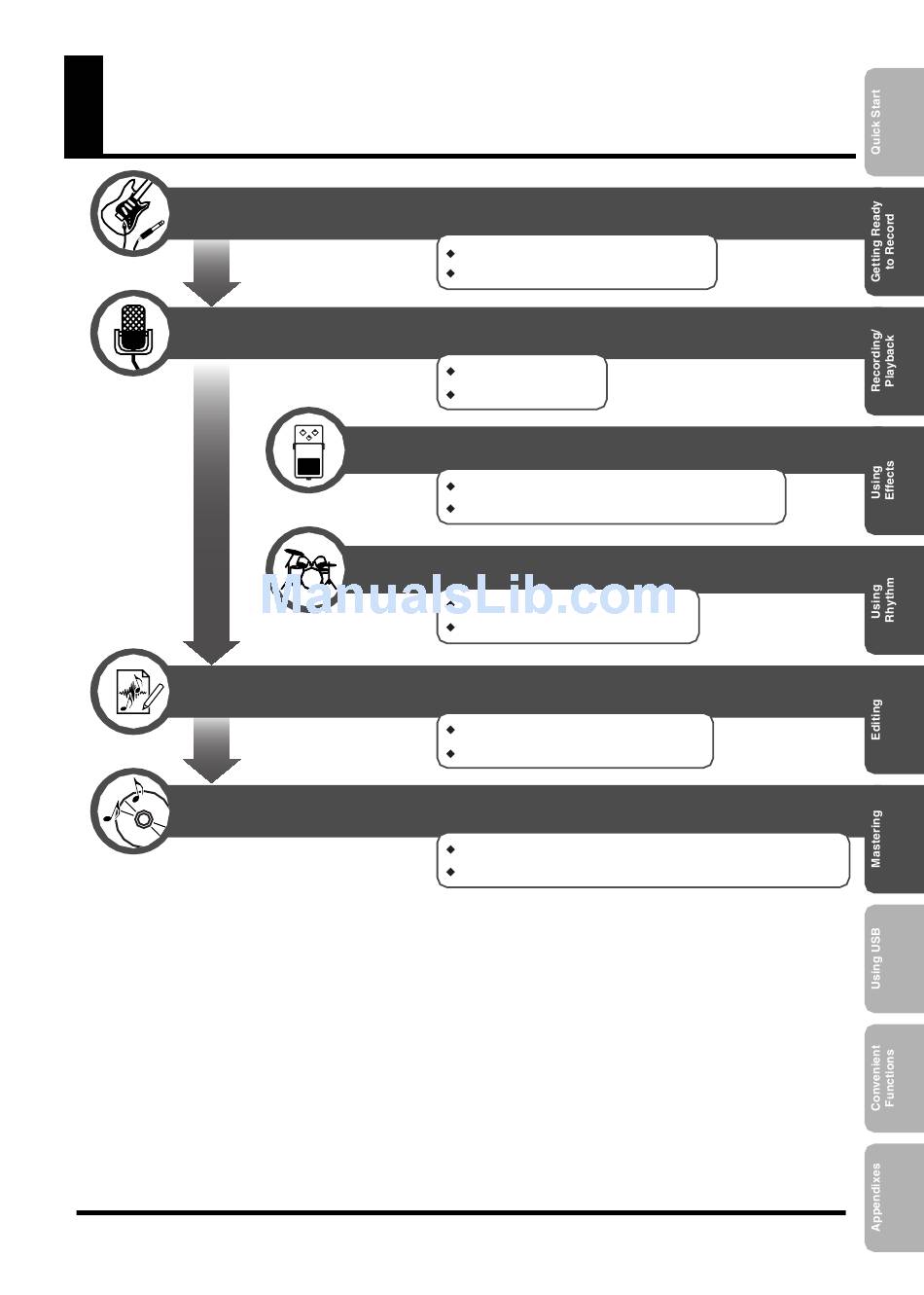

Recording Flow on the BR-800 Preparations for Recording Record/Playback Edit Your Song Master Your Song Make Connections (p. 32) Turn the Power On/Off (p. 34) Record (p. 36) Playback (p. 41) Record with Effects Applied Turning the Insert Effect On/Off (p. 55) Easily Edit the Insert Effect (p.
Page 2: Using The Unit Safely
Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page. • Never install the unit in any of the following locations.
Page 3 Excessive loads can cause the insulation on the cord to heat up and eventually melt through. • Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.
Page 4: Important Notes
SD card or a computer. • Unfortunately, it may be impossible to restore the contents of data that was stored in the unit’s memory or an SD card once it has been lost. Roland Corporation assumes no liability concerning such loss of data.
Page 5: Operating Buttons
• If you operate them with a pen or any object other than your finger • If beads of water have formed on the BR-800 • If an object is resting on the BR-800 • If two or more buttons are being touched...
Page 6: Table Of Contents
Contents Recording Flow on the BR-800 ... 3 USING THE UNIT SAFELY... 4 IMPORTANT NOTES... 6 Main Features... 11 Panel Descriptions... 12 Top Panel... 12 Front Panel ... 16 Rear Panel ... 17 Side Panel ... 18 Installing Batteries ... 19 Quick Start ...
Page 7 Computer ... 116 Recording the Mastered Song to an External Device... 116 Using USB ... 117 Before Using USB ... 118 About the “BR-800 DVD-ROM” ... 118 Installing the USB Driver ... 118 Data Structure on the SD Card... 118 Contents...
Page 8 Using the BR-800 as an Audio Interface ... 119 Recording Audio from the BR-800 on Your Computer ... 119 Using the BR-800 to Hear Songs Played Back by Your Computer... 119 Using the BR-800 to Record Songs Played Back by Your Computer... 119 Using the BR-800 as a Control Surface...
Page 9: Main Features
Main Features The BR-800 is a digital recorder that allows even the beginner to create songs easily. From recording to mastering, this convenient device makes it easy for you to start enjoying the benefits of digital recording. Four-Track Simultaneous Recording/Eight-Track...
Page 10: Panel Descriptions
Panel Descriptions Top Panel fig.TopPanel.eps MIC L/R (internal stereo microphones L/R) You can use these microphones to record in stereo. “Selecting the Input Source” (p. 37) * Speakers are not built in. In order to hear the sound, you’ll need to use headphones or connect amplified speakers to LINE OUT jacks.
Page 11 Track [1]–[7/8] faders These faders adjust the playback volume of each track. [RHYTHM] fader This fader adjusts the volume of the rhythm. “Playing Patterns” (p. 91) “Playing an Arrangement” (p. 93) [MASTER] fader This fader adjusts the overall volume. Track 1–7/8 [PLAY] buttons These buttons select the tracks that will play.
Page 12 This button allows you to adjust each track’s tone quality or edit the track (p. 105). [MENU] button This button accesses various functions, such as settings for the entire BR-800. [EXIT] button This button returns you to the previous screen, or cancels an operation.
Page 13: About The Play Screen
This indicates the volume. Item INPUT TRACK About the Play Screen On the BR-800, the main screen that appears (for example) immediately after the power is turned on (see below) is called the “Play screen.” D_Play.eps The explanations in this manual include illustrations that depict what should typically be shown by the display.
Page 14: Front Panel
Panel Descriptions Front Panel fig.FrontPanel.eps PHONES jack (stereo phone type) Connect separately sold stereo headphones here. Connecting headphones will allow you to hear the same sound as the LINE OUT jacks outputs. Use the [MASTER] fader to adjust the headphone volume. If the OUTPUT MODE (p.
Page 15: Rear Panel
BR-800’s analog output (p. 116). FOOT SW/EXP PEDAL (Foot switch/Expression pedal) jack A separately sold foot switch (BOSS FS-5U, Roland DP-2) or expression pedal (Roland EV-5, BOSS FV-500L/FV-500H) can be connected here. If a foot switch is connected, you can use your foot to start/stop song playback or to punch-in/out.
Page 16: Side Panel
“SD Cards that Can Be Used with the BR-800” (p. 142) USB connector This connector lets you connect the BR-800 to your computer via a USB cable. When connected to a computer, you’ll be able to do the following things.
Page 17: Installing Batteries
Installing Batteries Make sure that the [POWER] switch is “OFF.” Turn the BR-800 upside down. Detach the battery cover. fig.Batt01.eps Insert six AA batteries into the battery compartment, taking care to observe the correct polarity (+/- orientation). fig.Batt02.eps Attach the battery cover.
Page 18 MEMO...
Page 19: Quick Start
Quick Start...
Page 20: Listening To The Demo Songs
Listening to the Demo Songs The SD card included with the BR-800 contains demo songs. Here’s how to play back the demo songs. 1. Make Connections With the power switched off on both the BR-800 and your monitor speakers, make connections as shown below.
Page 21: Turn On The Power
2. Turn on the Power * You must use the following procedure to turn on the power. Using an incorrect order may cause malfunction or speaker damage. Lower the BR-800’s [MASTER] fader. fig.Quick_DemoSong2-1.eps Turn on the [POWER] switch. fig.Quick_DemoSong2-2.eps Turn on the power of your monitor speakers.
Page 22: Listen To The Demo Songs
Listening to the Demo Songs 3. Listen to the Demo Songs Press the [MENU] button. The MENU screen will appear. D_Menu_Input.eps Use the CURSOR [ [ENTER] button. The SONG screen will appear. D_Song_New.eps Use the CURSOR [ [ENTER] button. The SONG SELECT screen will appear. Use the CURSOR [ [ENTER] button.
Page 23 Set the faders to the positions shown below. fig.Quick_DemoSong3-5-e.eps Press the [PLAY] button. Song playback will start. Slowly raise the [MASTER] fader to adjust the volume. fig.Quick_DemoSong3-6.eps Move the track faders to adjust each track’s volume as desired. Press the [STOP] button to stop playback. fig.Quick_DemoSong3-5.eps •...
Page 24: Recording With The Ez Recording Function
Recording with the EZ Recording Function EZ Recording is a function that makes it easy to start recording. Simply select a recording source and the desired musical style, and the most suitable effect and rhythm settings will be made automatically. As an example, here how to record your guitar.
Page 25: Recording
Press the [ENTER] button. The EZ REC-3 screen will appear. The effect and rhythm for the selected SOURCE and CATEGORY are shown. D_EZ_Rec_Result_Guitar.eps Press the [ENTER] button. This completes the recording settings. 2. Recording Set the faders to the positions shown below. fig.Quick_DemoSong3-5-e.eps Turn the [REC LEVEL] knob to adjust the recording level.
Page 26 Slowly increase the [MASTER] fader to adjust the volume to the appropriate level for monitoring. fig.Quick_EZ2-3.eps Press the [REC] button. The [REC] button will blink red; the BR-800 is now in recording-standby mode. fig.Quick_EZ2-4-e.eps Blinking Press the [PLAY] button. The [PLAY] button will light green, the [REC] button will light red, and recording will begin.
Page 27: Playing Back
3. Playing Back Press the [ZERO] button to return to the beginning of the song. The current time location will change to 00:00:00-00:0. fig.Quick_EZ3-1.eps Press the [PLAY] button. Song playback will start. Use the [MASTER] fader to adjust the playback volume. fig.Quick_EZ3-2.eps This completes recording using the EZ Recording function.
Page 28: Ez Recording Parameter List
Recording with the EZ Recording Function EZ Recording Parameter List SOURCE Choose the setting that’s appropriate for the input source you’re recording. Parameter Explanation Choose this when recording an electric E.GUITAR guitar connected to the GUITAR/ BASS jack. Choose this when recording an acous- AC.GUITAR tic guitar connected to the GUITAR/ (GTR IN)
Page 29: Getting Ready To Record
Getting Ready to Record...
Page 30: Making Connections
■ Front Panel Stereo headphone ■ Rear Panel Monitor speakers etc. Foot switch (FS-5U etc.) ■ Side Panel Computer Electric guitar Electric bass Portable audio player etc. Expression pedal (Roland EV-5 etc.) AC adaptor Microphone Keyboard etc.
Page 31: Using The Cord Hook
• When using the FS-5U foot switch (sold separately), set the polarity switch as shown below. fig.00-130.eps Polarity Switch • Use only the specified expression pedal (Roland EV-5, BOSS FV-500L/FV-500H; sold separately). By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.
Page 32: Turning The Power On/Off
Check the following before you turn on the power. ❒ Have connections with your external equipment been made correctly? ❒ Are the volume controls of the BR-800 and the connected equipment set to the minimum position? ❒ Is the SD card inserted? (p. 142) Lower the BR-800’s [MASTER] fader.
Page 33: Recording/Playback
Recording/ Playback...
Page 34: Recording
Recording Creating a New Song (SONG NEW) The BR-800 manages your recordings in units called “songs.” To record a new song, carry out the procedure below. Press the [MENU] button. Use the CURSOR [ ] buttons to move the cursor to “SONG,” and press the [ENTER] button.
Page 35: Selecting The Input Source
Adjust the sensitivity so that the Internal stereo PEAK indicator lights briefly at microphones the loudest sounds. GUITAR/BASS Adjust the volume on the external jack device that’s connected. The input LINE IN jack sensitivity cannot be adjusted on the BR-800. USB connector Recording...
Page 36: Adjusting The Recording Level
* If you use a connection cable that contains a built-in resistor, the volume on the connected device may be insufficient. In this case, please use a connection cable that does not contain a built-in resistor (such as one from the Roland PCS series). Selecting the Track(s) for Recording Press one of the track 1–7/8 [REC] buttons to select the...
Page 37: Selecting V-Tracks
Selecting V-Tracks Each of the BR-800’s tracks contains eight “V-tracks,” and you can choose one of these V-tracks for recording or playback. By using V-tracks, you can record and compare multiple takes of a guitar solo or vocal, and then use the take you think is best.
Page 38: Adjusting The Stereo Feel Of The Input Sound (Pan)
(or right) and pan your own current performance to the right (or left). Recording Press the [REC] button. The [REC] button will blink red, and the BR-800 will enter recording-standby mode. fig.Rec03-e.eps Blinking Press the [PLAY] button.
Page 39: Loop Recording
Loop Recording Loop recording is a function that copies the recorded data when you stop recording, making it occupy approximately 200 measures. By using Loop recording you can easily create looped phrases that repeat the same phrase a number of times. fig.looprec-e.eps Start recording Stop recording...
Page 40: Recording Additional Performances (Overdubbing)
Track that will not be played Use the track faders to adjust the volume of the tracks that will be playing. Press the [REC] button. [REC] will blink red, and the BR-800 will enter recording-standby mode. Press the [PLAY] button. Recording will begin.
Page 41: Playing Back Repeatedly (Repeat)
Playing Back Repeatedly (Repeat) Specifying the Repeat Region By using the “repeat” function you can repeatedly play back a specified region. The repeat region will repeatedly play back as follows. fig.01-570 Repeat Repeat Start Repeat End Press the [REPEAT] button at the point where you want to start repeating (point A).
Page 42: Setting The Repeat Region To An Exact Interval
Playing Back Repeatedly (Repeat) Setting the Repeat Region to an Exact Interval Normally, the repeat start/end points will be set to the moments at which you press the [REPEAT] button, meaning that the repeat region might not be set precisely as you intended.
Page 43: Re-Recording Only Over A Mistake (Punch-In/Out)
Punch-Out [ PLAY ] [ REC ] [ REC ] On the BR-800, you can use either “manual punch-in/out” or “auto punch-in/out.” Manual Punch-In/Out This method lets you use the [REC] button or a foot switch to perform punch-in/out operations.
Page 44: Auto Punch-In/Out
(e.g., BOSS FS-5U or Roland DP-2) so that operations can be performed using your foot. Connect your foot switch to the FOOT SW/EXP PEDAL jack, and change the function of the FOOT SW/EXP PEDAL jack as follows.
Page 45 Use the CURSOR [ ] buttons to move the cursor to “DISP,” and turn the dial to choose the units in which you’ll specify the locations. Setting Explanation TIME Specify the locations in units of time. Specify the locations in units of mea- MEASURE sures.
Page 46: Cancelling An Operation (Undo/Redo)
Cancelling an Operation (UNDO/REDO) There may be times when you would like to cancel the result of an operation; for example, when recording, you might not have been able to record as you intended, or you might have made a mistake when making editing settings. In such cases, you can use “Undo.”...
Page 47: Viewing Information About The Song
Viewing Information about the Song Viewing the Remaining Recording Time Here’s how you can make the recording-standby or recording screen show the remaining recording time. Press the [MENU] button. Use the CURSOR [ ] buttons to move the cursor to “SYSTEM,” and press the [ENTER] button. Use the CURSOR [ ] buttons to move the cursor to “REMAIN INFO,”...
Page 48: Simple Recording (Song Sketch)
Simple Recording (SONG SKETCH) By putting the BR-800 in Song Sketch mode, you can use it as a stereo WAV file recorder/player. This provides an easy way to record your song ideas and phrases. Switching to Song Sketch Mode Press the [SONG SKETCH] button to enter Song Sketch mode.
Page 49: Playback
Press the [REC] button. Recording will begin. The [PLAY] button will light green, and the [REC] button will light red. fig.Rec04-e.eps When you’re finished recording, press the [STOP] button. The recorded data is saved in the SKETCH folder (p. 118). The recorded data can be imported into a track.
Page 50: Naming A Wav File
Simple Recording (SONG SKETCH) Naming a WAV File You are free to assign a name to a WAV file. Press the [SONG SKETCH] button. The SONG SKETCH screen will appear. Use the CURSOR [ ] buttons to move the cursor to the file name, and use the dial to select the file that you want to rename.
Page 51: Using Effects
Using Effects...
Page 52: Using Insert Effects
By calling up “effect patches,” you can switch the effects used by the insert effect and the parameters of each effect. The BR-800 provides a variety of effect patches suitable for use with vocals and a variety of instruments. These effect patches are organized by their type into six “banks.”...
Page 53: Turning The Insert Effect On/Off
Turning the Insert Effect On/ Press the [EFFECTS] button. The [EFFECTS] button will light, and the insert effect will turn on. fig.effect_on_off.eps Press the [EFFECTS] button once again to turn the insert effect off. The [EFFECTS] button will go out. Easily Creating an Insert Effect (EZ TONE) EZ Tone makes it easy to create your sound without having...
Page 54: Editing The Insert Effect Settings
Using Insert Effects If you want to save the current effect settings, proceed as described in “Saving the Insert Effect Settings (Write)” (p. 57). The effect settings you edit are temporary. If you exit the effect edit screen without saving the edited effect patch, an “*”...
Page 55: Saving The Insert Effect Settings (Write)
Use the CURSOR [ ] buttons to move the cursor to each effect, and use the dial to specify the on/off status of each effect. The icons show the status of each effect as follows. Indication Explanation Effect on (selected) Effect on Effect off (selected) Effect off...
Page 56: Changing The Location Of The Insert Effect (Location)
Using Insert Effects Changing the Location of the Insert Effect (LOCATION) The BR-800 lets you change the location of the insert effect, allowing you to use it for a variety of different purposes. In the EFFECT screen, press the CURSOR [ button to move the cursor to “LOCATION,”...
Page 57: Algorithm List
Algorithm List The algorithms (the available effects and their connection order) that can be used as an insert effect are shown below. The algorithms that can be selected will differ for each bank. To select the algorithm that you wish to use, first select the effect bank that includes that algorithm, and select a patch that uses the desired algorithm.
Page 58: Bass Multi
Using Insert Effects 3. GUITAR TO BASS Simulates the sound of a bass guitar. Obtain the sound of a bass guitar while playing an electric guitar. * You should avoid playing chords when using the GUITAR TO BASS. fig.GuitarToBass.eps -[G->B]-[COMP/LM]-[WAH]-[DIST] [AMP]-[EQ]-[NS]-[MOD]= Guitar to Bass Compressor/Limiter...
Page 59: Stereo Multi
BANK : MICROPHONE 6. VOCAL MULTI This is a multi-effect for vocals. It provides effects that are optimized for vocals. fig.VocalMulti.eps -[PCR]-[DYN]-[SFX]-[EQ]-[NS] [DB/HR]=[DLY]= Pitch Correct Dynamics Tone/SFX Equalizer Noise Suppressor Double/Harmony Delay 7. MIC MULTI This is a multi-effect for microphone. It provides the basic effects needed for a microphone.
Page 60 Using Insert Effects BANK : SIMUL 9. VO + GT.AMP This algorithm is for use when simultaneously recording a vocal and electric guitar. For the guitar, you can produce an amp sound using a preamp and speaker simulator. (GUITAR) fig.VOGTAMPGuitar.eps -[COMP/LM]-[AMP]-[EQ]-[NS]-[MOD]-[DLY]- Compressor/Limiter Equalizer...
Page 61 10. VO + AC.SIM This algorithm is for use when simultaneously recording a vocal and electric guitar. For the guitar, you can make the electric guitar sound like an acoustic guitar. (GUITAR) fig.VOACSIMGuitar.eps -[ASIM]-[COMP/LM]-[EQ]-[NS]-[CHO]-[DLY]- Acoustic Simulator Compressor/Limiter Equalizer Noise Suppressor Chorus Delay (MIC)
Page 62: 4-Input Multi
BOSS. Those companies are not affiliated with BOSS and have not licensed or authorized BOSS’s BR-800. Their marks are used solely to identify the equipment whose sound is simulated by BOSS’s BR-800.
Page 63 Parameter/ Explanation Range ATTACK Adjusts the strength of the picking at- tack when the strings are played. High- 0–100 er values result in s sharper attack, creating a more clearly defined sound. TONE *1 -50–+50 Adjusts the tone. THRESHOLD *2 Adjust this as appropriate for the input signal from your guitar.
Page 64 Using Insert Effects Parameter/ Explanation Range RELEASE *3 Adjusts the time from when the signal 0–100 level drops below the threshold until when limiting is removed. LO THRES *4 In the Low Frequency Range, when the 0–100 input signal level exceeds this thresh- old level, limiting will be applied.
Page 65 Parameter/ Explanation Range FREQUENCY *3 Adjusts the center frequency of the Wah 0–100 effect. PEAK *3 Adjusts the way in which the wah effect applies to the area around the center frequency. Higher values will produce a stronger tone which emphasizes the wah effect more. 0–100 With a value of 50 a standard wah sound will be produced.
Page 66 This is a clean sound that is smooth and BOSS CLEAN warm. JC-120 This is the sound of the Roland JC-120. JAZZ COMBO This is a sound suited to jazz. This is a sound with flat response. FULL RANGE Good for acoustic guitar.
Page 67 Parameter/ Explanation Range This models the sound input to left in- put on a Matchless D/C-30. MATCH A simulation of the latest tube amp DRIVE widely used in styles from blues and rock. This models the sound of a Matchless FAT MATCH with a modified high gain.
Page 68 Using Insert Effects Parameter/ Explanation Range This is the built-in speaker of the amp ORIGINAL you selected with PREAMP TYPE. This is a compact open-back speaker 1x8” cabinet with one 8-inch speaker. This is a compact open-back speaker 1x10” cabinet with one 10-inch speaker. This is a compact open-back speaker 1x12”...
Page 69 Parameter/ Explanation Range BRIGHT *3 Turns the bright setting on/off. Bright is not used. Bright is switched on to create a lighter and crisper tone. DEEP *4 This switch changes the character of the OFF, ON lower range. ULTRA LO *5 This controls the character of the lower -, 0, + range.
Page 70: Noise Suppressor
Using Insert Effects EQUALIZER This adjusts the tone as a equalizer. A parametric type is adopted for the high-middle and low-middle range. Parameter/ Explanation Range ON/OFF OFF, ON Turns the EQUALIZER effect on/off. LOW CUT (Low Cut Filter) This sets the frequency at which the low cut FLAT, filter begins to take effect.
Page 71 MODULATION Use TYPE to select the effect that you want to use. Parameter/ Explanation Range ON/OFF OFF, ON Turns the MODULATION effect on/off. MOD TYPE (Modulation Type) This selects the type of modulation. * The available types will depend on the algorithm. For details on the types that can be used with each algorithm, refer to “Algorithm List”...
Page 72 Using Insert Effects BASS SIM (Bass Simulator) Simulation of the characteristics of particular bass components such as pickups and different bass bodies allows you to switch among a number of different bass types all while using a single bass. Parameter/ Explanation Range TYPE...
Page 73 SITAR SIM (Sitar Simulator) This simulates the sound of the sitar. Parameter/ Explanation Range TONE This adjusts the tone. -50–+50 The high end is boosted as the value in- creases. SENS (Sensitivity) Adjusts the sensitivity of the sitar. When it is set to a lower value, no effect of the sitar is obtained with weaker picking, 0–100 while stronger picking produces the effect.
Page 74 Using Insert Effects PHASER By adding varied-phase portions to the direct sound, the phaser effect gives a whooshing, swirling character to the sound. Parameter/ Explanation Range TYPE Selects the number of stages that the phaser effect will use. This is a four-phase effect. A light phaser 4 STAGE effect is obtained.
Page 75 ROTARY This produces an effect like the sound of a rotary speaker. Parameter/ Explanation Range SPEED SEL (Speed Select) This parameter changes the simulated SLOW, FAST speaker’s rotating speed (SLOW or FAST). RATE-SLOW This parameter adjusts the SPEED SEL of 0–100 rotation when set to “SLOW.”...
Page 76 Using Insert Effects CHORUS In this effect, a slightly detuned sound is added to the original sound to add depth and breadth. Parameter/ Explanation Range MODE Selection for the chorus mode. This chorus effect outputs the same sound MONO from both L channel and R channel. This is a stereo chorus effect that adds dif- STEREO1 ferent chorus sounds to L channel and R...
Page 77 DELAY This effect adds delayed sound to the direct sound, giving more body to the sound or creating special effects. Parameter/ Explanation Range ON/OFF OFF, ON Turns the DELAY effect on/off. TYPE This selects which type of delay. STANDARD This is a simple delay. This delay is specifically for stereo output.
Page 78: Acoustic Processor
Using Insert Effects Parameter/ Explanation Range TYPE Select the type of GUITAR TO BASS processor. The sound of a Fender Jazz Bass. The sound of a Fender Precision Bass. REAR VOL (Rear Volume) *1 Sets the volume of the rear pickup. With a 0–100 setting of 0, there will be no sound.
Page 79 TONE/SFX Adjusts the tonal character or applies special effects. Parameter/ Explanation Range ON/OFF OFF, ON Turns the TONE/SFX effect on/off. TYPE DISTORTION Produces a distorted voice. RADIO Produces a radio voice. STROBE Finely slices the voice. CHORUS Adds richness to the voice. FLANGER Adds a “swooshing”...
Page 80 Using Insert Effects LOW CUT This filter cuts out vocal pop and other unwanted low-band noise. Parameter/ Explanation Range ON/OFF OFF, ON Turns the LOW CUT effect on/off. DEPTH This parameter sets the frequency below 20 –2000 Hz which vocal pop and other undesirable lower-range noises will be filtered out.
Page 81: Adding A Sense Of Spaciousness
Adding a Sense of Spaciousness By making use of the BR-800’s onboard “Loop Effects,” you can add a sense of spaciousness and depth to your sounds. You can adjust the effect depth by adjusting the send level from each input or track to the loop effect.
Page 82: Editing The Loop Effect
Adding a Sense of Spaciousness Editing the Loop Effect Press the [TRACK] button. Use the CURSOR [ ] buttons to move the cursor to “REVERB” or “CHO/DLY,” and press the [ENTER] button. The send level screen will appear. D_Reverb.eps Press the [ENTER] button. The loop effect parameter edit screen will appear.
Page 83 Parameter/ Explanation Range E.LEVEL (Effect Level) 0–100 Adjusts the volume of the reverb sound. SPRG SENS (Spring Sensitivity) *1 Adjusts the sensitivity of the spring reverb 0–100 effect. When the value is set higher, the ef- fect is obtained even with a weak picking. *1 Setting available when TYPE is set to SPRING.
Page 84: Adjusting The Tone Of Each Track
Adjusting the Tone of Each Track The BR-800 provides a three-band equalizer that’s independent for each track. You can use this to adjust the tone quality of each track. Editing the Track EQ Press the [TRACK] button. Use the CURSOR [ ] buttons to move the cursor to “EQ,”...
Page 85: Using Rhythm
Using Rhythm...
Page 86: Overview Of The Rhythm Section
Overview of the Rhythm Section The BR-800 provides a dedicated rhythm generator that is separate from the audio tracks 1–7/8. You can use this rhythm as a guide during recording, or create an original rhythm backing by arranging various internal rhythms to match the structure of your song.
Page 87: About The Drum Sounds (Drum Kits)
If you want to create a song that has musical variation, you’ll want to place different patterns in an appropriate order such as intro ➝ chorus ➝ break ➝ ending. On the BR-800, data that places patterns in a specific order for performance is called an “arrangement.” fig.04-010.eps...
Page 88: Turning The Rhythm On/Off
[RHYTHM] button will go out; rhythm will be off. Switching between Pattern Mode and Arrangement Mode The BR-800 lets you use rhythm in either of two modes: Pattern mode and Arrangement mode. Pattern mode The selected pattern will play repeatedly from the beginning to the end of the song.
Page 89: Playing Patterns
Use the [RHYTHM] fader and the [MASTER] fader to adjust the volume appropriately. To stop playback, press the [STOP] button. • When the BR-800 is shipped from the factory, the song patterns (S001–S100) contain no data, so nothing will play even if you select them.
Page 90: Changing The Tempo
Playing Patterns Changing the Tempo Here’s how to change the pattern playback tempo when you’re in the play screen. Use the CURSOR [ ] buttons to move the cursor to the tempo indication. D_Play_Tempo.eps Turn the dial to adjust the tempo. The pattern playback tempo will change.
Page 91: Playing An Arrangement
Use the [RHYTHM] fader and the [MASTER] fader to adjust the volume appropriately. To stop playback, press the [STOP] button. When the BR-800 is shipped from the factory, the song arrangements (S01–S05) do not contain data, so nothing will play even if you select them.
Page 92: Changing The Tempo
Playing an Arrangement Changing the Tempo Here’s how to change the playback tempo of an arrangement when you’re in the play screen. Use the CURSOR [ ] buttons to move the cursor to the tempo indication. D_Play_Tempo.eps Use the dial to adjust the tempo. The arrangement’s playback tempo will change.
Page 93: Changing The Drum Sounds (Drum Kit)
A drum kit is a set containing various rhythm instrument sounds. The BR-800 contains nine “preset drum kits.” By using “BR-800 Rhythm Editor” you can create five of your own original drum kits. Drum kits are saved for each song on the SD card.
Page 94: Creating An Original Arrangement
Creating an Original Arrangement The BR-800 lets you place patterns in the desired order to make an arrangement, thus creating the structure of your entire song from intro to ending. Once you’ve created an arrangement, you can save it as a song arrangement.
Page 95 Use the CURSOR [ ] buttons to move the cursor to the parameter that you want to edit, and use the dial to edit the value. By pressing the [PLAY] button you can audition the pattern of the currently selected step (the current pattern).
Page 96: Inserting A Step
Creating an Original Arrangement Inserting a Step Here’s how to insert a new step at the current step. fig.04-550.eps Insert Verse Step 1 Step 2 Step 3 Intro Verse Fill Step 1 Step 2 Step 3 Step 4 Intro Verse Verse Fill Access the ARRANGE STEP screen as described in...
Page 97: Naming An Arrangement
Naming an Arrangement You can freely assign a name (arrangement name) of up to eight characters to a song arrangement. Press the [RHYTHM] button. Use the CURSOR [ ] buttons to move the cursor to “TYPE.” Turn the dial to select “ARRANGE.” Use the CURSOR [ ] buttons to move the cursor to “ARRNG.”...
Page 98: Copying An Arrangement
Creating an Original Arrangement Copying an Arrangement If you want to slightly modify a preset arrangement, or create a variation of an existing arrangement, you can do so by copying it as a song arrangement and then editing the copy. Press the [RHYTHM] button.
Page 99: Erasing An Arrangement
Erasing an Arrangement Here’s how to erase step 2 and all following steps of the song arrangement. Step 1 will remain without being erased, and will be set to “Metro” (metronome). Press the [RHYTHM] button. Use the CURSOR [ ] buttons to move the cursor to “TYPE.”...
Page 100: Delaying The Pattern/Arrangement Playback (Offset)
Delaying the Pattern/ Arrangement Playback (OFFSET) Here’s how you can specify a time offset by which the pattern or arrangement will be delayed relative to the playback of the audio tracks. Press the [RHYTHM] button. Use the CURSOR [ ] buttons to move the cursor to “OFFSET,”...
Page 101: Editing
Editing...
Page 102: Finding The Location At Which A Sound Begins Or Ends (Scrub/Preview)
The BR-800 provides a “scrub” function that is a convenient way to find such locations. Using the scrub function will repeatedly play an extremely short region (approximately 45 milliseconds) that starts or ends at the current location.
Page 103: Editing
Editing Track Editing You can copy or erase tracks, or import song sketch data. The results of your track editing operations are saved to the song when you return to the play screen. ■ Copying track data Here’s how to copy all data from the specified track to another track.
Page 104 Editing ■ Erasing track data Press the [TRACK] button. Use the CURSOR [ ] buttons to move the cursor to “TRACK EDIT,” and press the [ENTER] button. D_Track_Edit_Copy.eps Use the CURSOR [ ] buttons to move the cursor to “ERASE,” and press the [ENTER] button. Use the CURSOR [ ] buttons and the dial to select the track/V-track that you want to erase.
Page 105: Copying A Song (Song Copy)
Copying a Song (SONG COPY) Here’s how to copy the currently selected song. Press the [MENU] button. Use the CURSOR [ ] buttons to move the cursor to “SONG,” and press the [ENTER] button. Use the CURSOR [ ] buttons to move the cursor to “COPY,”...
Page 106: Naming A Song (Song Name)
Editing Naming a Song (SONG NAME) When you create a new song, it will automatically be given a name such as “SONG 0001.” When you’ve finished a song, you should give it an appropriate name so that your song data will be easier to manage. Press the [MENU] button.
Page 107: Saving A Song (Save Current State)
Saving a Song (SAVE CURRENT STATE) On the BR-800, the following content is saved as song data. • Recorded data • The state of the mixer (pan, track EQ, etc.) • Song patches for the insert effect • Song patches for the mastering effect •...
Page 108 MEMO...
Page 109: Mastering
Mastering...
Page 110: Using Mastering In Creating A Song
* The mastering effect provides 19 “preset patches” (P01– P16), 19 rewritable “user patches” (U01–U19), and 19 “song patches” (S01–S19) which are stored for each song. fig.03-020.eps_80 BR-800 Preset Patch You can turn on the mastering effect even when you’re not in Mastering mode.
Page 111 Press the [EXIT] button to return to the play screen. Press the [ZERO] button to return to time location 00:00:00-00:0. Press the [REC] button. The [REC] button will blink red, and the BR-800 will enter recording-standby mode. fig.Rec03-e.eps Blinking Press the [PLAY] button.
Page 112: Editing The Mastering Effect Settings
Using Mastering in Creating a Song When you’ve finished mastering, press the [STOP] button. The result will be saved on the mastering-destination track, and the PREVIEW screen will appear. D_Master_Preview.eps If you press the [PLAY] button, the result of mastering will play back.
Page 113: Saving The Mastering Effect Settings (Write)
Saving the Mastering Effect Settings (Write) Here’s how to assign a name to the patch you created, and save it as a new patch. From the mastering effect select screen, press the CURSOR [ ] button to move the cursor to “NAME/ WRITE,”...
Page 114: Making Use Of Songs After Mastering
Making Use of Songs After Mastering Making Use of Songs on Your Computer Songs you’ve created using the BR-800 can be converted to WAV/AIFF files using the “BOSS BR Series Wave Converter.” The following things become possible once you’ve converted your songs to WAV/AIFF format.
Page 115: Using Usb
Using USB...
Page 116: Before Using Usb
If you place a WAV file from your computer into this folder, you’ll be able to play it back on the BR-800. WAV files created on the BR-800 can also be copied from the SKETCH folder into your computer.
Page 117: Using The Br-800 As An Audio Interface
BR-800 to your computer (p. 118). Recording Audio from the BR-800 on Your Computer Using USB, the sound you input to the BR-800 or the sound from tracks being played back can be recorded by your personal computer software.
Page 118: Using The Br-800 As A Control Surface
* The unit can be used as an audio interface even while it is in Control Surface mode. * Put the BR-800 in control surface mode before you start up your DAW software. If you start up your DAW software before entering control surface mode, the state of the various indicators might not be displayed correctly.
Page 119: Exchanging Data With Your Computer
BR-800 audio data to WAV/AIFF files, or convert WAV/AIFF files from your computer to BR-800 audio data. “BOSS BR Series Wave Converter” is on the “BR-800 DVD- ROM.” For details on the location of “BOSS BR Series Wave Converter,” refer to “ReadmeEN.txt” on the “BR-800 DVD- ROM.”...
Page 120 * If the Idling screen does not appear, you won’t be able to proceed with the following steps. Please check the connection. Transfer the WAV file. To copy a WAV file from the BR-800 to your computer 1. Double-click the “BOSS_BR-800” icon (or the “removable disk (*:)” icon); the “ROLAND” folder will appear.
Page 121: Saving Data On Your Computer (Backup/Recover)
• Insert effect song patches • Mastering effect song patches • Patterns (song) • Arrangements (song) • Loop effect Use a USB cable to connect the BR-800 to your computer. Press the [MENU] button. The MENU screen will appear. Use the CURSOR [ ] buttons to move the cursor to “USB,”...
Page 122 BR-800. • When you recover the data, the data in the SD card will be overwritten. Stop the connection between the BR-800 and your computer. Windows users In My Computer, right-click the “BOSS_BR-800” icon (or the “removable disk (*:)”...
Page 123: Making Settings For Usb Functionality
Making Settings for USB Functionality This section explains how to make settings for the BR-800’s USB-related functionality. Make the settings that are appropriate for how you’re using the BR-800. Press the [MENU] button. The MENU screen will appear. Use the CURSOR [ ] buttons to move the cursor to “USB,”...
Page 124 Parameter/ Explanation Value OUT POSITION (Output position) This specifies which signal of the BR-800 will be output via USB. * In Control Surface mode, the signal as it is immediately after passing through the [REC LEVEL] knob will be output.
Page 125: Convenient Functions
Convenient Functions...
Page 126: Adjusting The Display Contrast
Adjusting the Display Contrast Depending on the location in which the BR-800 is placed or the conditions of use, you might find the display difficult to read. If so, proceed as follows to adjust the display’s contrast. Press the [MENU] button.
Page 127: Using A Foot Switch/Expression Pedal
Using a Foot Switch/Expression Pedal If you connect a foot switch (such as the separately available BOSS FS-5U or Roland DP-2) to the FOOT SW/EXP PEDAL jack on the rear panel, you’ll be able to control some functions using your foot.
Page 128: Tuning Your Instrument (Tuner)
To turn off the tuner, press the [EXIT] button. If you don’t want sound to be heard while you’re tuning, lower the [MASTER] fader. ■ Indications while tuning The BR-800’s built-in tuner shows the reference pitch, note name, and tuning guide. fig.06-080-e.eps Note name...
Page 129: Specifying The Tuner's Reference Pitch
You can adjust the tuner’s reference pitch in the range of 435–445 Hz. In the TUNER screen, you can use the dial to set the reference pitch. With the factory settings, this is set to 440 Hz. The reference pitch setting is saved within the BR-800.
Page 130: Mixing The Sound From An Audio Device (Line In Mix)
IN to be mixed with the output from LINE OUT. By using “Line In Mix” you can avoid having to use an external mixer. The sound of your external audio device will be mixed inside the BR-800 with the BR-800’s own output. fig.06-130.eps...
Page 131: Output Settings (Output)
“PHONES LEVEL,” and use the dial to adjust the headphone volume. D_Output_Phones.eps Press the [EXIT] button a number of times to return to the play screen. When you turn on the BR-800’s power, the “PHONES LEVEL” setting is reset to “100.”...
Page 132: Practicing Phrases (Phrase Trainer)
Practicing Phrases (PHRASE TRAINER) The BR-800 provides a Phrase Trainer function, which lets you slow down the playback speed (Time Stretch) or minimize a vocal or guitar solo that’s localized at the center of the sound field (Center Cancel), so you can conveniently practice your instrument by playing along with a recording.
Page 133: Minimizing Sounds In The Center (Center Cancel)
Minimizing Sounds in the Center (CENTER CANCEL) This function lets you minimize the sounds that are heard in the center (such as vocals or guitar solo). This is convenient when you’re practicing with a song as backing. * Center Cancel can be used only with tracks 5/6. Press the [MENU] button.
Page 134: Restoring The Factory Settings (Factory Reset)
Restoring the Factory Settings (FACTORY RESET) The “Factory Reset” operation returns the BR-800 to its factory-set state. You can also specify the range of settings that will be returned to their factory-set state. Press the [MENU] button. Use the CURSOR [ ] buttons to move the cursor to “FACTORY RESET,”...
Page 135: Initializing An Sd Card (Format)
• Before you use a commercially available SD card, you must format it on the BR-800. • Make sure that the BR-800’s power is turned off before you insert or remove an SD card. Inserting or removing an SD card while the power is on may destroy the data on the SD card or damage the SD card itself.
Page 136: Viewing The Sd Card Usage (Sd Card Information)
Viewing the SD Card Usage (SD CARD INFORMATION) Here’s how to view the usage status of the SD card. Press the [MENU] button. Use the CURSOR [ ] buttons to move the cursor to “SD CARD,” and press the [ENTER] button. Use the CURSOR [ ] buttons to move the cursor to “INFORMATION,”...
Page 137: Reducing The Battery Consumption (Power Save)
Reducing the Battery Consumption (POWER SAVE) This function dims the display backlight and buttons to conserve power if no switch or dial has been operated for a certain length of time. When the Power Save function is active, the following will be shown in the display.
Page 138: Using A Condenser Microphone (Phantom Power)
(PHANTOM POWER) If you’re using a condenser microphone that requires phantom power, turn on the phantom power as follows. The BR-800 can provide +48 V phantom power to a condenser microphone connected to the XLR connector of INPUT 4. • You must turn off phantom power unless you’ve connected a condenser microphone that requires phantom power.
Page 139: Appendixes
Appendixes...
Page 140: Sd Cards That Can Be Used
Format the card as described in “Initializing an SD Card (FORMAT)” (p. 137). ■ Removing the card cover When the BR-800 is shipped from the factory, the card cover is fastened to the unit using a screw to discourage theft of the SD card.
Page 141 ■ Inserting an SD card Insert the SD card so that its contacts are facing upward. fig.InsCard.eps SD Cards that Can Be Used with the BR-800 ■ Removing an SD card Gently press the SD card inward, and then release your finger.
Page 142: Arrangement / Pattern List
Arrangement / Pattern List Preset Arrangement List Each of the preset Arrangement (except Metro4/4) is set so that a three-measure BREAK, followed by V1 (verse) comes after the E (ending). Arrangement Initial Beat Name Tempo ROCK1 ROCK2 ROCK3 ROCK4 ROCK5 ROCK6 HdRck1 HdRck2...
Page 143: Preset Pattern List
Preset Pattern List Pattern Name Initial (Abbreviation shown Tempo in display) ROCK1 ROCK2 ROCK3 ROCK4 ROCK5 ROCK6 Hard Rock 1(HdRc1) Hard Rock 1(HdRc2) Hard Rock 1(HdRc3) Hard Rock 1(HdRc4) Hard Rock 1(HdRc5) HEAVY1 (HEVY1) HEAVY2 (HEVY2) HEAVY3 (HEVY3) HEAVY4 (HEVY4) HEAVY5 (HEVY5) POP1 POP2...
Page 144: Troubleshooting
Explanation Is the BR-800’s power switch set correctly? Make sure that the BR-800’s power switch is set to “USB” if you’re using USB bus power, or to “ON” if you’re using the AC adaptor or batteries. Is sufficient power being supplied to your computer or USB hub? The connection cannot be established if insufficient power is being supplied to the BR-800.
Page 145: Problems With The Sd Card
If there is noise or distortion following mastering, the track output levels are too high. distortion Could a microphone with high output impedance be connected directly to the BR-800? Since the INPUT 1–4 jacks are designed for a low input impedance, the recording level may be too low depending on the characteristics of the microphone.
Page 146: Problems With Usb
Have you made the correct settings in your DAW software? mode does not In order to use the BR-800 as a control surface with your DAW software, the control sur- work correctly face setting of your DAW software must be set to “Mackie control.” For details, refer to the owner’s manual of the DAW software you’re using.
Page 147: Error Message List
Error Message List An error message will appear in the display if you attempt to perform an invalid operation or if an operation could not be executed correctly. Take the appropriate action for the message that appears. Message Cause Already exists! There is a file of the same name.
Page 148 BR-800 can handle in one song has been exceeded. What is an event? An “event” is the smallest unit used by the BR-800 to manage the data recorded on an SD card. Event full! Approximately 30,000 events are allocated for each newly created song.
Page 149 Turn off the power, firmly reinsert the SD card, and then turn the power on again. Format the card on the BR-800. Use an SD card that is supported by the BR-800. Format the card on the BR-800. Check the format of the WAV file.
Page 150: Specifications
* 0 dBu = 0.775 Vrms * AF method (Adaptive Focus method) Adaptive Focus is a unique Roland/BOSS technology that allows the signal noise (S/N) ratios of AD and DA converters to be vastly improved. 64 (8 V-Tracks per each Track) -50 –...
Page 151: Index
Index Numerics 4-INPUT MULTI ... 64 8-TRACK COMP/LIM ... 64 A.GUITAR MULTI ... 60 AC adaptor ... 18 ACOUSTIC PROCESSOR ... 80 ACOUSTIC SIM ... 59 ACOUSTIC SIMULATOR ... 79 AMP ... 68 Arrangement Copying ... 100 Created ... 96 Erasing ...
Page 152 Index GTR SIM ... 73 Guitar Simulator ... 73 GUITAR TO BASS ... 60, 79 GUITAR/BASS ... 16 Headphone ... 16, 133 INFORMATION SD CARD ... 138 Information Song ... 49 Song Sketch ... 52 INPUT ... 17, 37, 58 INPUT SENS ...
Page 153 REDO ... 48 Reference pitch ... 131 REPEAT ... 13, 43–44 Repeat ... 43 RETRY ... 13, 40 REVERB ... 83–84 REW ... 13 RHYTHM ... 13–14, 58, 90 Rhythm Editor ... 88 RING MOD ... 73, 77 Ring Modulator ... 73, 77 ROTARY ...
Page 154 MEMO...
Page 155 fig.15_WEEE_Small.eps For EU Countries fig.16_ChineseRoHS.eps For China...
Page 156: Federal Communications Commission Radio Frequency Interference Statement
DECLARATION OF CONFORMITY Compliance Information Statement Model Name : BR-800 Digital Recorder Type of Equipment : Responsible Party : Roland Corporation U.S. 5100 S.Eastern Avenue, Los Angeles, CA 90040-2938 Address : Telephone : (323) 890-3700 NOTICE AVIS For C.A. US ( Proposition 65 )

Roland BR-800 Owner's Manual

Quick Start

Getting Ready to Record

Recording/Playback

Using Effects

Using Rhythm

Editing

Mastering

Using USB

Convenient Functions

Appendixes

Quick Links

Recording Flow on the BR-800

Preparations for Recording

Need help?

Questions and answers

Related Manuals for Roland BR-800

Summary of Contents for Roland BR-800

Table of Contents
