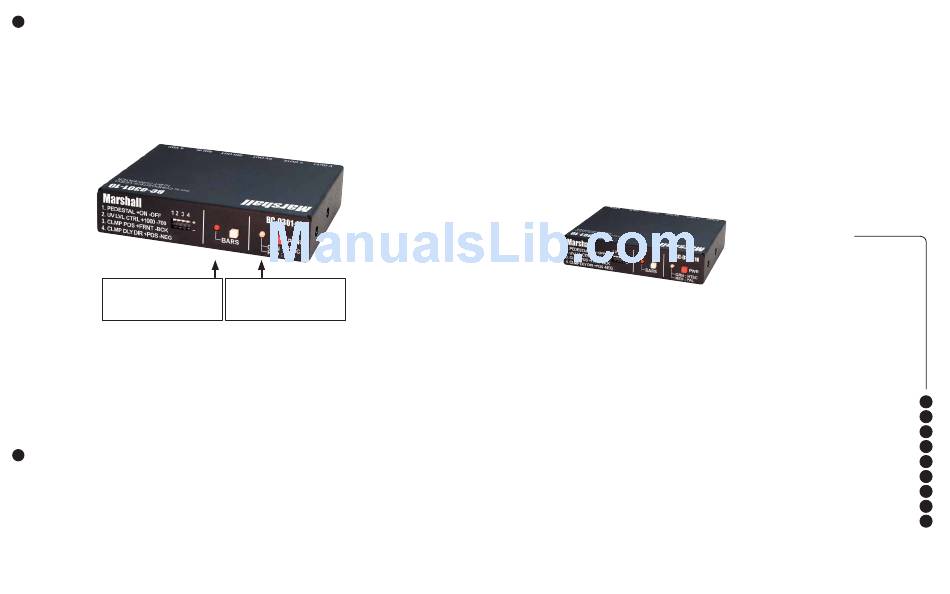

Switch Settings and Indicators
7
8
SWITCH 1
PEDESTAL ON (+) ADDS 7.5 IRE SETUP TO VIDEO SIGNAL
SWITCH 2
UV COMPONENT PROCESS OUTPUT LEVEL SELECTION OF 1000MV (+) OR 700MV (-)
SWITCH 3
CLAMP POSITION ON VIDEO SIGNAL. FRONT PORCH (+), BACK PORCH (-)
SWITCH 4
CLAMP DELAY DIRECTION. POSITIVE (+), NEGATIVE (-)
COLOR BAR ON/OFF SWITCH
ILLUMINATES WHEN BARS ARE ACTIVE.
NOTE THAT INPUT SIGNAL WILL NOT
APPEAR WHEN ACTIVATED. BAR SIGNAL
TYPE WILL CHANGE WITH VIDEO FORMAT.
Warranty
7
9
Marshall Electronics warranties to the first consumer, that this BC-0301-10 Digital to Analog Converter will, under normal use, be free from defects
in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of purchase
provided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor and parts may
be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications in design
or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties other than those
described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.
Due to constant effort to improve products and product features, specifications may change without notice.
© 2004 Marshall Electronics, Inc.
POWER ON/OFF SWITCH
WITH SYSTEM INDICATOR
IF THERE IS NO INPUT SIGNAL, THE
INDICATOR WILL BE AMBER
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
BC-0301-10
BC-0301-10
Users Guide
Users Guide
1
2
3
4
5
6
7
Switch Settings and Indicators
8
Warranty
9
Advertisement
Table of Contents
Related Manuals for Marshall Electronics BC-0301-10
Summary of Contents for Marshall Electronics BC-0301-10
- Page 1 This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of purchase Connectors provided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor and parts may be charged to you.
- Page 2 (PAL/NTSC), and dipswitch settings for Pedestal (On/Off), UV Level Control (700ma/1000ma), Clamping Position (Front Porch/Back Porch), and Clamping Delay Position (Positive/Negative). All Marshall Electronics Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.
