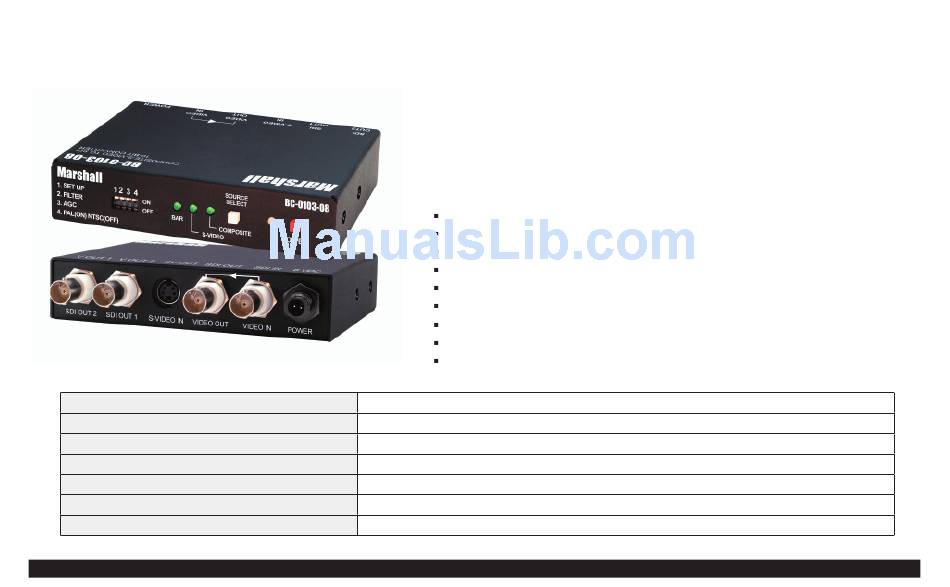

BC-0103-08 - Low cost Analog to Digital (SDI) Converter
Signal Input
Signal Output
Sample Frequency
K factor
Signal to Noise
Differential gain/phase
Input Cable length
1910 East Maple Ave. El Segundo, CA 90245 • Tel.: 800-800-6608 • Fax: 310-333-0688 • www.LCDRacks.com • Email: sales@lcdracks.com
Composite Video or Y/C (S-Video) (NTSC/PAL) to Serial Digital
Interface (SDI) conversion module. Featuring automatic cable
compensation, 10-bit processing and a superior adaptive comb
filter, the BD-0103-08 is an ideal solution for DTV applications
and facility transitions to a digital environment.
MSRP of $495.00 includes module and power supply
Converts Composite Video or Y/C to Digital Component (SDI)
NTSC or PAL operation with automatic detection
Illuminated power and input signal indicators
Adaptive filtering removes NTSC interlace artifacts
2 x over sampling for true color reproduction
10 Bit analog to digital conversion
8-bit qauntization of output signal
Supports closed captioning
BNC for Composite Video 75Ω, 4 pin mini-din Y/C Video
2 BNC SDI 8 bit Component Digital (SMPTE-259M/ITU-R BT601)
27mhz
<1%
>54 db
0.7% / 0.6°
Up to 1000ft (300m) AGC compensated (Belden 8281)
SPECIFICATIONS
