EasyCoder 501/601 – Installation Instructions
INDUSTRIAL INTERFACE KIT, cont'd.
Connector Configuration
Pin "uart3:" Remarks
DB25 female
1 GNDC Cable shield
2 TXDB Transmitted data from printer
3 RXDB Received data to printer
4 RTSB RTS from printer
5 CTSB CTS to printer
6 DRSB DSR to printer
7 GNDI Signal ground
8 – not used
9 – not used
10 – not used
11 – not used
12 – not used
13 – not used
14 – not used
15 – not used
16 +5VEXT + 5V max 200 mA*
17 – not used
18 – not used
19 – not used
20 DTRB DTR pemanently high
21 – not used
22 – not used
23 – not used
24 – not used
25 – not used
*/. If strap fitted on P-1

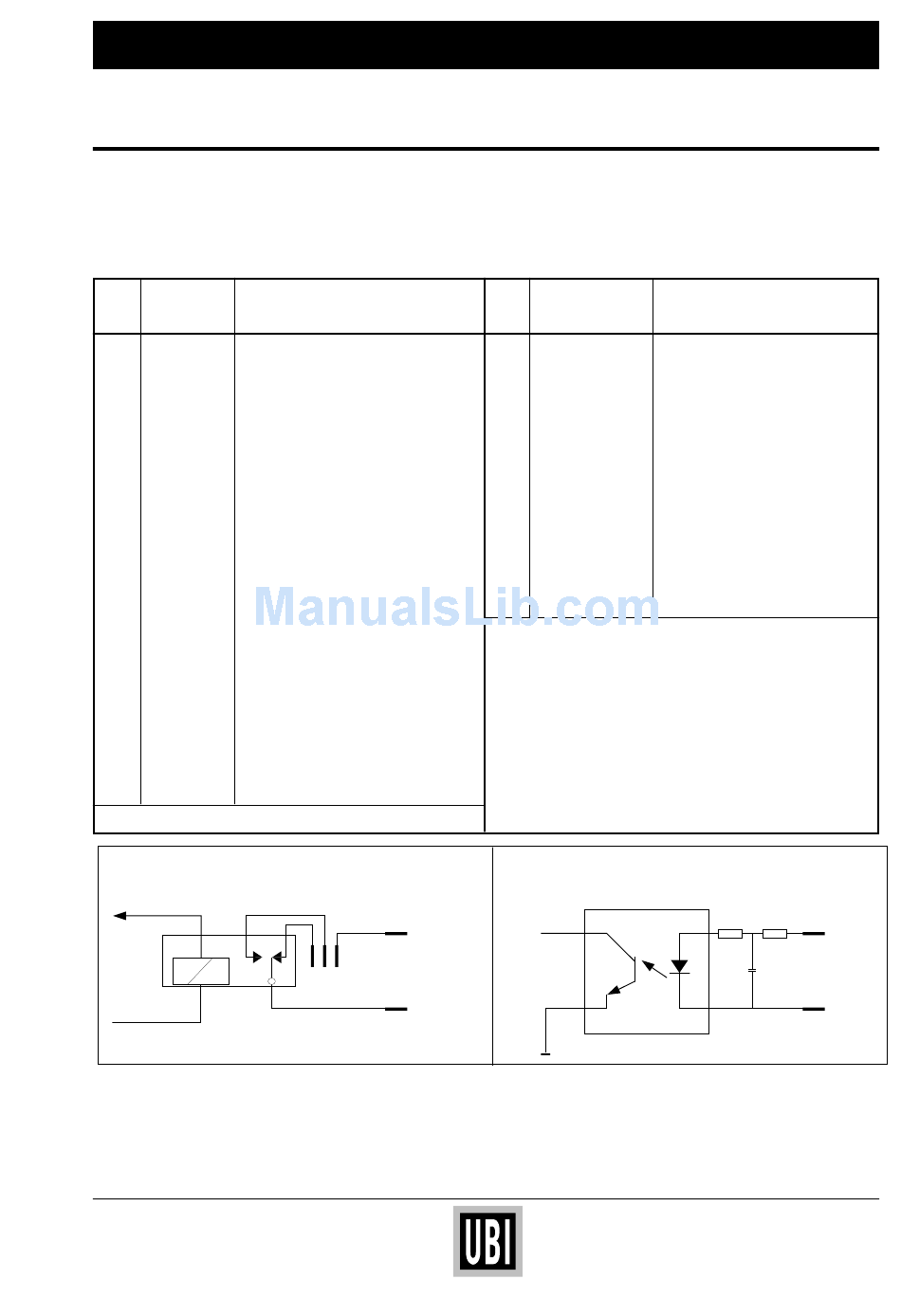

Example of an OUT port
+5V
REL1
OUT1
Information in this manual is subject to change without prior notice and does not represent a commitment
on the part of UBI Printer AB.
© Copyright UBI Printer AB, 1994. All rights reserved. Published in Sweden.
EasyCoder is a trademark of United Barcode Industries (UBI).
Torx is a registered trademark of Camcar Division of Textron Inc.
"uart3:" is a DB25 female connector.
The In/Out connector is a DB15 female connector.
The mounting holes are connected to chassis ground.
POWER: max. 240VA
VOLTAGE: max. 60VAC
CURRENT: max. 4A
1
1 3 2
P-3
P-2
2
Pin In/Out connector Remarks
DB15 female
1 OUT 201
2 OUT 201
3 OUT 202
4 OUT 202
5 OUT 203
6 OUT 203
7 OUT 204
8 OUT 204
9 IN 101
10 IN 101
11 IN 102
12 IN 102
13 IN 103
14 IN 104
15 IN 103/104
signals are controlled by means of
OUT
PORTOUT (<nexp>) ON|OFF
and signals are read by means of
IN OUT
functions.
PORTIN (<nexp>)
Also see UBI Fingerprint Programmer's Manual.
Example of an IN port
TIL193B
IN1
See example below
See example below
statements.
VOLTAGE: 10–48V
CURRENT: 3–16mA
R5 R6
