Eicon Technology DIVA T/A ISDN Modem Reference Manual

Diva t/a isdn modem reference guide
Hide thumbs Also See for DIVA T/A ISDN Modem:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
DIVA T/A ISDN Modem
Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIVA T/A ISDN Modem and is the answer not in the manual?

Questions and answers

Related Manuals for Eicon Technology DIVA T/A ISDN Modem

Summary of Contents for Eicon Technology DIVA T/A ISDN Modem

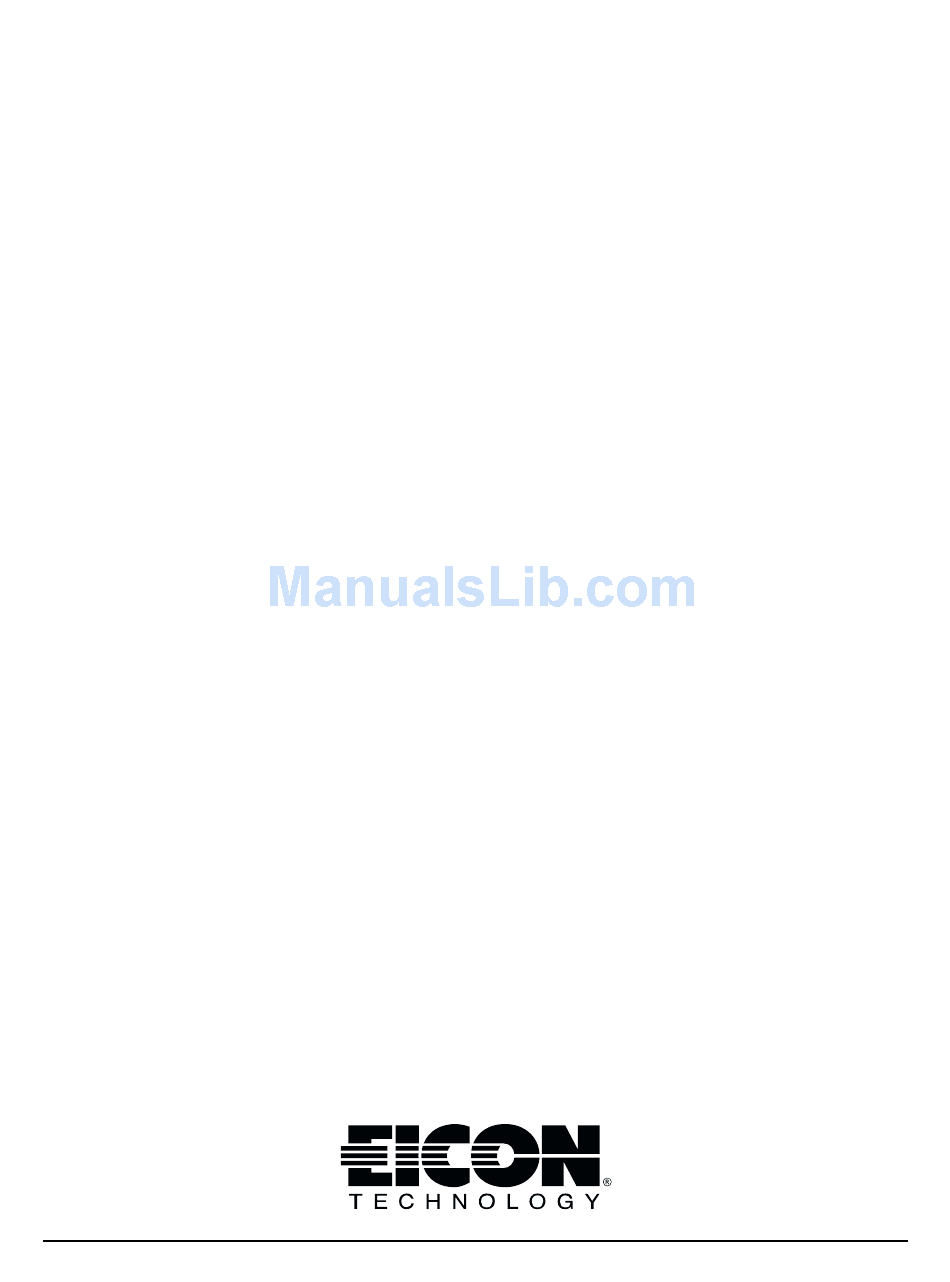

  • Page 1 DIVA T/A ISDN Modem Reference Guide...
  • Page 2 Eight Edition (July 1999) 206-193-08 DIVA T/A ISDN Modem is a trademark of Eicon Technology Corporation. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. CompuServe is a registered trademark of CompuServe Incorporated. Hayes is a registered trademark of Hayes Microcomputer Products, Inc.

  • Page 3: Table Of Contents

    Contents What is ISDN? ... 4 ISDN Communication Channels ... 6 Connecting to ISDN - BRI and PRI ... 8 What is Multilink PPP? ... 9 What is BACP/BOD? ... 10 What is DBA? ... 11 What is Always On / Dynamic ISDN (AO/DI)? ... 12 What is Data Compression? ...13 Locating AT Commands ...

  • Page 4: What Is Isdn

    128 Kbps, which is about four times the actual top speed of the fastest analog modems. Compression can increase throughput to around 250 Kbps. DIVA T/A ISDN Modem Reference Guide N Page 4...
  • Page 5 Videoconferencing is an emerging ISDN application that's growing fast in popularity and ISDN is currently the only practical way of making it happen. DIVA T/A ISDN Modem Reference Guide N Page 5...

  • Page 6: Isdn Communication Channels

    Message signaling takes priority over data packet-switching. The D-channel functions at 16 Kbps for Basic Rate Interface or 64 Kbps for Primary Rate Interface. The speed is dependent on the end-user's interface. DIVA T/A ISDN Modem Reference Guide N Page 6 What is ISDN?
  • Page 7 The H-channel is used for high-speed user data traffic at bit rates higher than 64Kbps. Examples of services which require these higher rates are fast facsimile, teleconferencing, and video. An H-channel user can subdivide the channel using TDM to meet specific requirements. DIVA T/A ISDN Modem Reference Guide N Page 7...

  • Page 8: Connecting To Isdn - Bri And Pri

    There is no single transmission rate defined for primary rate access. In North America and Japan, for example, primary rate interface is based upon the T1 rate (defined in detail shortly) of 1.544 Mbps. In Europe, by comparison, the rate is 2.048 Mbps. DIVA T/A ISDN Modem Reference Guide N Page 8...

  • Page 9: What Is Multilink Ppp

    DIVA T/A supports COM port rates of up to 230.4 kbps. However, some computer COM ports are limited to 115.2 kbps. If you want to use your DIV AT/A at its maximum speed, install a “fast COM port” card (UART 16650 based). DIVA T/A ISDN Modem Reference Guide N Page 9...

  • Page 10: What Is Bacp/Bod

    Since BACP/BOD automatically adds and drops the second B-channel in response to traffic peaks and declines, the process is completely transparent. BACP/BOD is an excellent way to reduce communications charges in situations where your demand for ISDN bandwidth fluctuates. DIVA T/A ISDN Modem Reference Guide N Page 10...

  • Page 11: What Is Dba

    DBA with BACP/BOD so that you can have greater flexibility when using the DIVA T/A. Note: If an analog device is used on the server side of the connection, DBA will not restore a channel that has been bumped. DIVA T/A ISDN Modem Reference Guide N Page 11...

  • Page 12: What Is Always On / Dynamic Isdn (Ao/Di)

    D-channel until a B-channel is available, if needed. • As B-channels are invoked only when additional bandwidth is needed, connection costs are significantly reduced. DIVA T/A ISDN Modem Reference Guide N Page 12 What is ISDN?

  • Page 13: What Is Data Compression

    No user configuration is required to enable the DIVA T/A's compression functionality. Compression algorithms currently supported by the DIVA T/A include Stacker LZS (Hi/fn), MPPC (Microsoft), and Ascend. DIVA T/A ISDN Modem Reference Guide N Page 13...

  • Page 14: Locating At Commands

    Missing decimal parameters (n) are assumed as 0. • Most commands entered with parameters out of range will not be accepted and the ERROR response will be returned to the DTE. DIVA T/A ISDN Modem Reference Guide N Page 14...
  • Page 15 Locating AT Commands • The next command will only be accepted by the DIVA T/A once the previous command has been fully executed. DIVA T/A ISDN Modem Reference Guide N Page 15...

  • Page 16: At Command Groups

    Always On / Dynamic ISDN AT Commands ... 49 Utility Commands ... 54 S-Register Commands... 57 Analog Device Commands ... 59 Mini-monitor Commands ... 62 AT Command Result Codes ... 63 DIVA T/A ISDN Modem Reference Guide N Page 16...

  • Page 17: Alphabetical List Of Supported At Commands

    To implement a change to a static parameter, use the AT&Wn command; the changes will be implemented when you restart your system. A list of command groups can be found on page 16. DIVA T/A ISDN Modem Reference Guide N Page 17...
  • Page 18 Incoming Call Assignment, Second Directory Number AT!V0=n V.110 Configuration Override (International version only) AT!V1=n V.110 Stream Rate (International version only) AT!V2=n V.110 Character Length (International version only) Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 18...
  • Page 19 Specifies the contents of the user data field in the X.25 Call Request packet. AT!X56=n Delay between 64K data call failure and 56K data call attempt. Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 19...
  • Page 20 Enable Bandwidth Allocation Control Protocol / Bandwidth on Demand AT%P6=n Set Initial Billing Interval Timer AT%P7=n Set Billing Interval Timer AT%P8=n Dynamic Bandwidth Allocation AT%P9=n Second B-channel Connection Retries AT%P10=n Enable/disable PPP Echo-Requests Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 20...
  • Page 21 AT&V View Current and Stored Profile AT&Wn Save Current to Stored Profile AT&Yn Designate Stored Profile n as the Powerup Profile AT&Zn=v Store Telephone Number(s) Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 21...
  • Page 22 Analog Device Ring Type (static) AT*Sn=v Disable Calling Features (Analog Device) (static) AT*Vn=v Disable/Enable VoiceMail (North America only) (static) AT*Wn=v Call Waiting Support (International version only). Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 22...
  • Page 23 Initialization Status Display (North America Only) AT>VDL View Link States AT>VPn View Stored Profile n AT>VT View Stored Phone Numbers AT>VX View X.25 Status (AO/DI) AT>Z Restart the DIVA T/A Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 23...
  • Page 24 AT@ Commands AT@DATE? Current Date AT@DATE= Set Date AT@MENU Activate VT100 Configuration Tool AT@TIME? Current Time AT@TIME= Set Time Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 24...

  • Page 25: Other At Commands

    S-Register n to Value v ATSn? Value of S-Register n ATVn Result Code Format ATWn Connect Message Control ATXn Extended Results Code ATZn Restart the DIVA T/A Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 25...
  • Page 26 S-Registers Auto-Answer View Ring Count Escape Character Carriage Return Character Line Feed Character Back Space Character Data Terminal Ready Detection Delay Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 26...
  • Page 27 Start or View a Q.931 Trace AT$VU Internal T/A access command AT$VX Start AO/DI trace AT$Y Enter Mini Monitor on Next Reset AT$Z Soft Reset device and Enter Mini-Monitor Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 27...
  • Page 28 Restore Profiles to Original Settings at@load Simulate a fault at@load Load New Firmware at@md arg Display memory at@msg Display Cause for Entering Monitor at@quit Exit the Mini-monitor mode. Alphabetical List of Supported AT Commands DIVA T/A ISDN Modem Reference Guide N Page 28...

  • Page 29: General At Commands

    Last AT Command Result Explained. The AT>? Command reports the result of the last AT command issued. This command is useful for debugging long strings of AT commands and for determining which command was rejected and why. DIVA T/A ISDN Modem Reference Guide N Page 29...
  • Page 30 (+++), then wait another moment. Its value is stored in S-Register 2. The default value of the escape character as stored in S-Register 2 is ‘+’ . General AT Commands DIVA T/A ISDN Modem Reference Guide N Page 30...

  • Page 31: Isdn Configuration Commands

    Ph1, VPC1, D2 Ph1, VPC1, D1 Ph1, VPC1, D1, D2 Directory Number 1 Ph1, VPC1, D1 Ph1, VPC1, VPC2, D1, D2 DIVA T/A ISDN Modem Reference Guide N Page 31 Bit 1 Bit 0 Data 1 Data 2 Assigned to D2...
  • Page 32 Default Databits Length. Specifies the length of the Databits, when the DTE characteristics cannot be determined by AutoBauding (AT has not been typed since power up). Values: 7, 8. Default: 8. ISDN Configuration Commands DIVA T/A ISDN Modem Reference Guide N Page 32...
  • Page 33 Valid digits: 0-9, *, and #. Maximum: 20 (North America), 40 (International). Default: null string. Note: This parameter does not take effect until you restart your DIV AT/A. ISDN Configuration Commands first of these two DIVA T/A ISDN Modem Reference Guide N Page 33...
  • Page 34 Valid digits: 0-9, *, and #. Maximum: 20. Default: null string (this is an optional value). Note: This parameter does not take effect until you restart your DIV AT/A. ISDN Configuration Commands first of these two DIVA T/A ISDN Modem Reference Guide N Page 34...
  • Page 35 Values: 0-10 (wait n seconds before retry); 254 (use pre-configured values depending on region); 255 (do not attempt 56k data call retry). Default: Australia & Japan, no retry (n=255); all other regions, immediate retry (n=254). ISDN Configuration Commands DIVA T/A ISDN Modem Reference Guide N Page 35...

  • Page 36: Com Port Configuration Commands

    Upon connection, the DIVA T/A reports the DCE speed, the protocol, and the DTE n=2 Upon connection, the DIVA T/A reports the DCE speed; for example, CONNECT CONNECT 19200 (default). speed. 64000. DIVA T/A ISDN Modem Reference Guide N Page 36...
  • Page 37 Data Set Ready. Data Set Ready (DSR) controls the behavior of the DSR output. n=0 DSR always on (default). n=1 DSR always on after protocol is connected. COM Port Configuration Commands DIVA T/A ISDN Modem Reference Guide N Page 37...
  • Page 38 Upon connection, the DIVA T/A reports the DTE speed only (default). For example, CONNECT 19200. n=1 Upon connection, the DIVA T/A reports the DCE speed. For example, CONNECT 64000. COM Port Configuration Commands DIVA T/A ISDN Modem Reference Guide N Page 38...

  • Page 39: Call Control Commands

    PC. This option does not permit you to receive analog calls. These last two settings are automatically altered when a FAX application issues a +FCLASS command. This ensures incoming and outgoing calls are compatible with the necessary fax class. DIVA T/A ISDN Modem Reference Guide N Page 39...
  • Page 40 *) is 20 in North America and 40 for International. If you need to dial a number longer than 25 digits, use the ATDn command (see page 41). Answer Calls. Instructs the DIVA T/A to accept an incoming call. Call Control Commands DIVA T/A ISDN Modem Reference Guide N Page 40...
  • Page 41 20 digits in North America and 40 for International. Hang up a Call. To disconnect and hang up a call. If the DIVA T/A is currently online, the connection is terminated. Call Control Commands DIVA T/A ISDN Modem Reference Guide N Page 41...

  • Page 42: V.120 Configuration Commands

    The link verification procedure is provided by exchanging SABME and UA frames. (UI) frames. The link verification procedure is provided by exchanging XID frames. The unacknowledged mode is less robust than multiframe mode. DIVA T/A ISDN Modem Reference Guide N Page 42...
  • Page 43 When Idle Timer expires, this immediately initiates the disconnection of calls. Setting a zero value disables Idle Timer. The unit of measurement is minutes. Range: 0 to 10000. Default: 1440 (24 hours). V.120 Configuration Commands DIVA T/A ISDN Modem Reference Guide N Page 43...

  • Page 44: Configuration Commands

    Values: 1 (default), 2. AT!V5=n V.110 Flow Control. Specifies the Flow Control method to be used for V.110. n=0 None. n=1 Receive only (default). n=2 Transmit only. n=3 Receive and transmit. (default). DIVA T/A ISDN Modem Reference Guide N Page 44...

  • Page 45: Profile Commands

    Use anytime you want to load the powerup profile. ATZn Restart DIVA T/A Using Profile n. Restarts your DIVA T/A using stored profile n. Use after changing a static parameter. DIVA T/A ISDN Modem Reference Guide N Page 45...

  • Page 46: Multilink Ppp Commands

    ISDN provider designates as the minimum chargeable unit for all subsequent billing. Note: If the value is set to 0, the timer is not used. Range: 0 to 65535. Default: 60 seconds. DIVA T/A ISDN Modem Reference Guide N Page 46...
  • Page 47 60 seconds. Note: The description above applies only if BACP is disabled; for a description of AT!X13=n when BACP is enabled, see page 51. Multilink PPP Commands DIVA T/A ISDN Modem Reference Guide N Page 47...

  • Page 48: Endpoint Discriminator Class/Address

    No address is used. This class is valid only for remote endpoint discriminators (EPDs), and is used to accept any remote EPDs received that are all part of the same bundle. DIVA T/A ISDN Modem Reference Guide N Page 48 Multilink PPP Commands...

  • Page 49: Always On / Dynamic Isdn At Commands

    X.25 Facilities field when a call is made. Default: 2. Window sizes of 1 to 7 are standard. A value of 0 is not allowed. DIVA T/A ISDN Modem Reference Guide N Page 49...
  • Page 50 1st B-channel Closing Threshold. Specifies the threshold (percentage) that the throughput on your B-channel must be below before the 1st B-channel is dropped from the AO/DI connection. Range: 0 to 100. Default: 40. Always On / Dynamic ISDN AT Commands DIVA T/A ISDN Modem Reference Guide N Page 50...
  • Page 51 For example, if 1000 bytes are queued in the X.25 link, the 1st B-channel connection will be opened after the delay specified by AT!X10. Range: 0 to 65535 Default: 1000 bytes. Always On / Dynamic ISDN AT Commands DIVA T/A ISDN Modem Reference Guide N Page 51...
  • Page 52 4095-4 = 4091. Default: 1. AT!X22=n Enable/Disable AO/DI. Specifies whether the AO/DI feature is enabled or disabled. n=0 Off (default). n=1 On. Always On / Dynamic ISDN AT Commands DIVA T/A ISDN Modem Reference Guide N Page 52...
  • Page 53 CF (PPP over X.25). If your switch doesn't recognize CF, you won't be able to connect; if this is the case you should set the value to nothing (AT!X26= ). Default: CF (PPP over X.25). Always On / Dynamic ISDN AT Commands DIVA T/A ISDN Modem Reference Guide N Page 53...

  • Page 54: Utility Commands

    Stop Mail Trace. AT$SP Stop PPP Trace. AT$SQ Stop Q931 Trace. AT$SX Stop AO/DI X.25 Trace. AT$VCn Set an AT cmd Trace. AT$VI View initial Profile. Displays the profile used at start up. DIVA T/A ISDN Modem Reference Guide N Page 54...
  • Page 55 If you do not specify trace size and length, the default values are used. The default trace size is 16K, the default entry length is 128 bytes. AT$VU Internal TA access command reserved for VU. DIVA T/A ISDN Modem Reference Guide N Page 55 Utility Commands...
  • Page 56 If you do not specify trace size and length, the default values are used. The default trace size is 16K, the default entry length is 128 bytes. AT$Y Enter the monitor on the next reset. AT$Z Soft reset the unit and enter the monitor. DIVA T/A ISDN Modem Reference Guide N Page 56 Utility Commands...

  • Page 57: S-Register Commands

    Range: 0 to 127. Type: Non-Storable. Default: ASCII 010 line feed. Backspace Character. Specifies the backspace character used for command line editing. Default: ASCII 008 (backspace). Type: Non-Storable. No auto answer (default). DIVA T/A ISDN Modem Reference Guide N Page 57...
  • Page 58 S25 register setting. Range: 0-255, in tenths of a second. For example, if set to 5, the duration is five-tenths of a second, or 50 milliseconds. Default: 0. Type: Storable. S-Register Commands DIVA T/A ISDN Modem Reference Guide N Page 58...

  • Page 59: Analog Device Commands

    Analog device port 1 (PHONE 1). n=2 Analog device port 2 (PHONE 2). v=0 Disable port. v=1 Outgoing calls only. v=2 Incoming calls only. v=3 Incoming and outgoing calls (default). recommended for modem/fax calls. DIVA T/A ISDN Modem Reference Guide N Page 59...
  • Page 60 Norway n=24 Singapore n=13 Switzerland n=25 Canada n=14 Austria n=26 India n=15 Cyprus n=27 Japan n=16 Finland n=28 South Africa n=17 Greece n=29 United Arab n=18 Iceland n=19 Luxembourg DIVA T/A ISDN Modem Reference Guide N Page 60 Emirates (UAE)
  • Page 61 Call Waiting Support (International version only). Specifies whether support for call waiting is enabled. n=1 Analog device port 1 (PHONE 1). n=2 Analog device port 2 (PHONE 2). v=0 Disable. v=1 Enable (default). Analog Device Commands DIVA T/A ISDN Modem Reference Guide N Page 61...

  • Page 62: Mini-Monitor Commands

    Display cause for entering the monitor. at@quit Exit the Mini-monitor. at>F Restore All Profiles to Original Factory Settings. Reverts the powerup profile to number 0. Warning: All previous user-defined settings are lost. DIVA T/A ISDN Modem Reference Guide N Page 62...

  • Page 63: At Command Result Codes

    Syntax of command is incorrect Unable to execute command Command does not exist Entered command is outside permitted range ISDN not initialized Remote user busy Remote user not responding Fax call Data call DIVA T/A ISDN Modem Reference Guide N Page 63...
  • Page 64 CARRIER 2400 CONNECT 2400 CARRIER 4800 CONNECT 4800 CARRIER 7200 CONNECT 7200 CARRIER 9600 CONNECT 9600 CARRIER 12000 CONNECT 12000 CARRIER 14400 CONNECT 14400 CARRIER 16800 CONNECT 16800 AT Command Result Codes DIVA T/A ISDN Modem Reference Guide N Page 64...
  • Page 65 CARRIER 38400 CONNECT 38400 PROTOCOL: NONE PROTOCOL: V42 PROTOCOL: MNP REL PROTOCOL: MNP ALT PROTOCOL: V120 PROTOCOL: V110 PROTOCOL: PPPC PROTOCOL: MLPPP PROTOCOL: TRV PROTOCOL: TRANSPARENT MODE AT Command Result Codes DIVA T/A ISDN Modem Reference Guide N Page 65...
  • Page 66 ISDN configuration commands Locating AT Commands Mini-monitor commands Multilink PPP Multilink PPP commands Primary Rate Access Profile commands Result codes S-Register commands Syntax conventions for AT commands Utility commands V.110 commands V.120 commands DIVA T/A ISDN Modem Reference Guide N Page 66...
