Installing and Replacing Desktop Board Components

Connecting a Chassis Fan

Figure 13 shows the location of the chassis fan header. Connect the chassis fan cable
to this header.

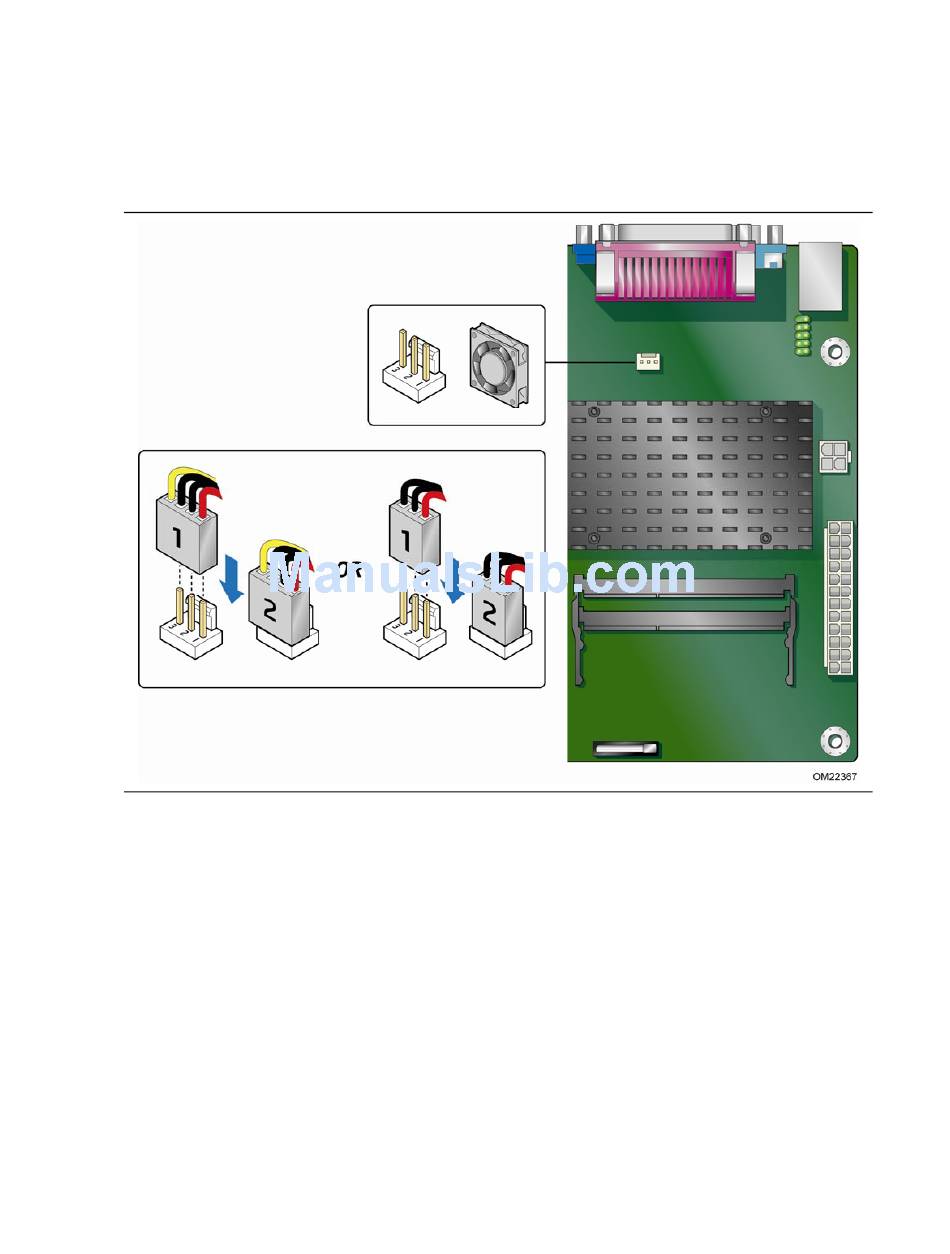

Figure 13. Location of the Chassis Fan Header
37
