Intel Desktop Board D525MW Product Guide
Installing a Wireless LAN Card in the PCI
Express Mini Card Slot
A wireless LAN card can be installed in the Desktop Board's PCI Express Mini Card slot.
To install a Full-Mini Card wireless LAN card, see Figure 9 and follow these steps:
1. Observe the precautions in "Before You Begin" on page 23.
2. Insert the wireless LAN card into the PCI Express Mini Card connector (Figure 9, A)
at a slightly upward angle.
3. Align the card's mounting holes over the board's steel mounting posts (Figure 9, B)
and attach the card with the supplied screws.
4. Attach your system's antenna wires to the connectors (Figure 9, C) on the wireless
LAN card as shown.

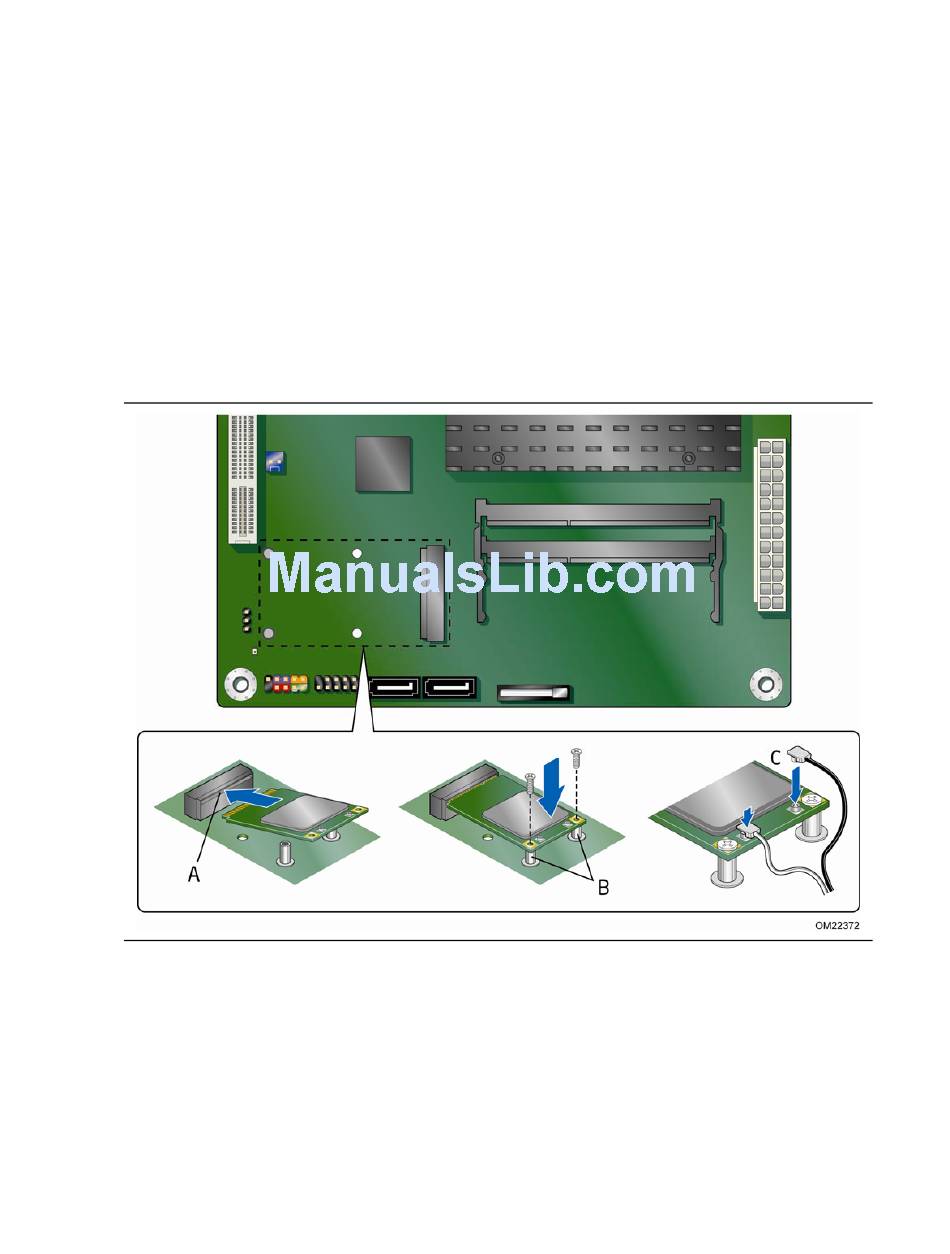

Figure 9. Installing a Full-Mini Card Wireless LAN Card
