Installing A Half-Mini Card Wireless Lan Card - Intel BOXD525MW Product Manual

To install a Half-Mini Card wireless LAN card, see Figure 10 and follow these steps:
1. Observe the precautions in "Before You Begin" on page 23.
2. Insert the plastic Half-Mini Card latch in the mounting holes as shown in
Figure 10, A.
3. Insert the wireless LAN card into the PCI Express Mini Card connector
(Figure 10, B) at a slightly upward angle.
4. Align the card's mounting holes (Figure 10, C) with the plastic latch and snap it
into place.
5. Attach your system's antenna wires to the connectors (Figure 10, D) on the
wireless LAN card as shown.

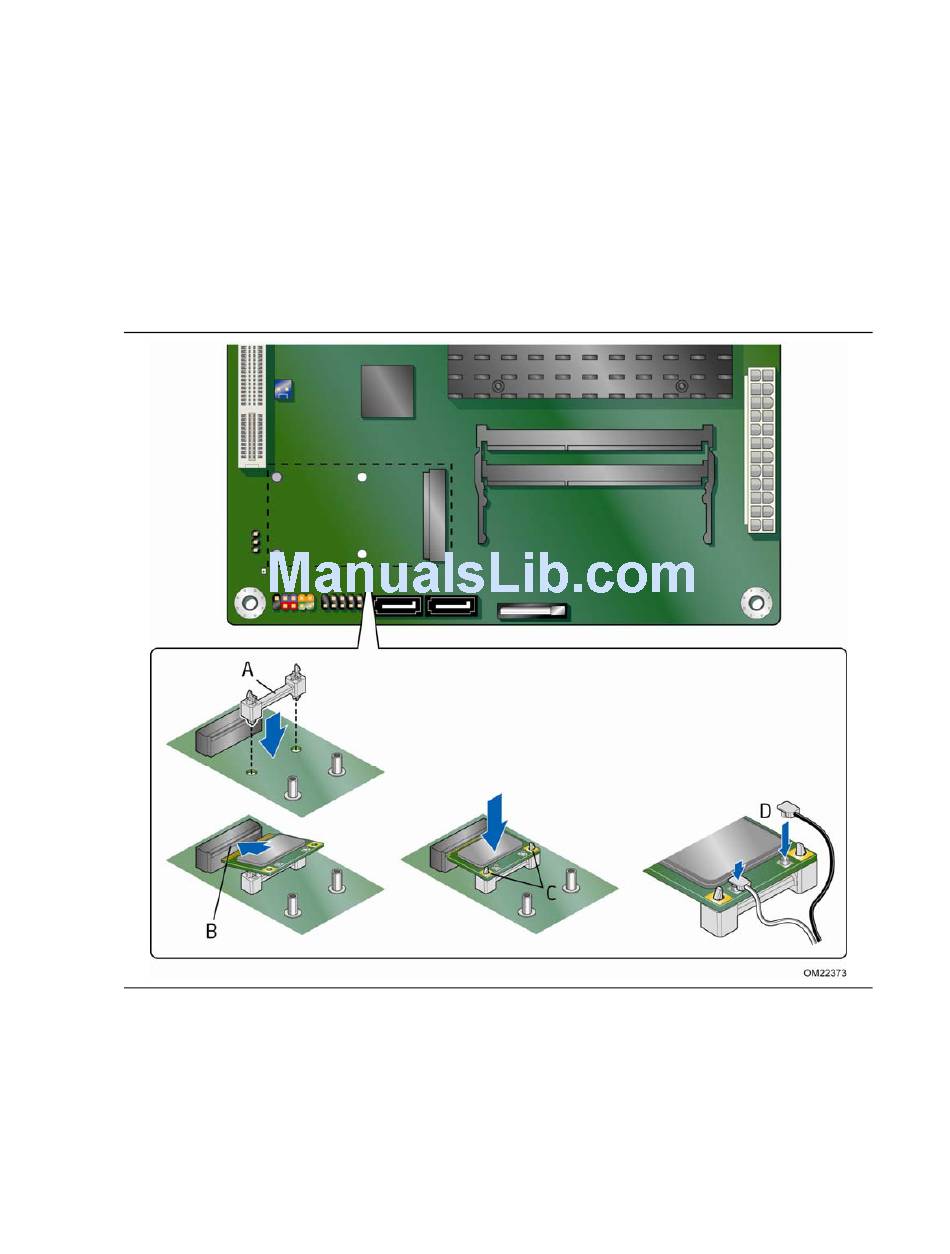

Figure 10. Installing a Half-Mini Card Wireless LAN Card
