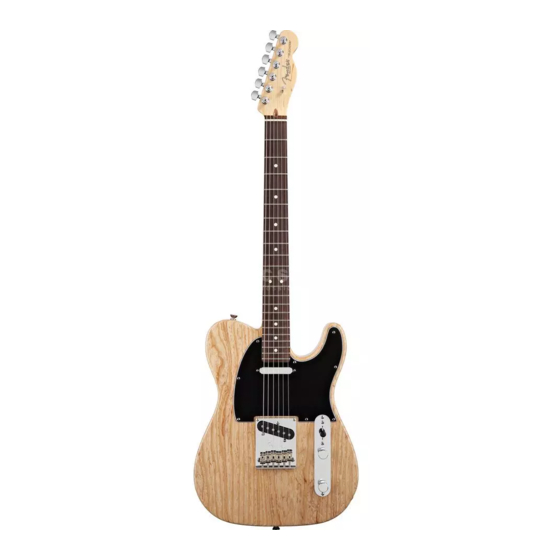

Fender American Standard Telecaster Supplementary Manual

AMERICAN STANDARD TELECASTER 0108400/8402
REF.# P/N
1 0028177000 Neck, American Standard Telecaster, M/N
0028176000 Neck, Ameriacn Standard Telecaster, R/W
2 0021374000

Tuning Key, (1) Set, W/Bushing

3 0083675000 Bone Nut
4 0021537000 String Retainer
0021405000
5 0020810000

Truss Rod Adjustment Nut

0023811000
6 0028174xxx Body, Am. Std. Tele., Solid Paint
0038417xxx Body, Am. Std. Tele., Natural Ash
0055221xxx Body, Am. Std. Tele., Sunburst
7 0054038000 Neck Mounting Plate
0021424000
0031571000
0023811000
8 0021453000 Strap Button
0021422000
0019056000
0020491000
9 0028178000 Pickguard, Am. Std. Tele., White/Black/White
0021407000
10 0050890000 Pickup, Neck, Hot, Am. Std. Tele
0021409000
0039409000
11 0050888000 Pickup, Bridge, Hot, Am. Std. Tele
0048631000
0036878000
12 0019064000

Control, 250K, Audio

0016352000
0016436000
13 0050886000

Control, 250K, No Load

0016352000
0016436000
14 0013359000 Knob, Knurled (2)
0028897001
15 0033134060 Control Plate
0021407000
16 0053290000

Switch, Lever 3-Position

0021413000
0018359000
17 0024832000 Capacitor, .022uf
18 0012869000 Solder Lug
0015116000
19 0021956000 Output Jack
0016352000
0016436000
20 0021452000 Jack Ferrule
21 0028182000

Bridge Assembly, Telecaster

0021373000
0018531000
22 0028184000

Bridge Plate

23 0026099000 Bridge Section, (6)
24 0031913000 Intonation Screw, 5&6
0029095000
0017031000 Intonation Screw, 1- 4
0029094000
25 0026780000 Height Adjustment Screw, 1&6
0018027000 Height Adjustment Screw, 2-5
DESCRIPTION
Mounting Screw
Truss Rod Adjusting Wrench
Mounting Screw
Tilt Adjustment Screw
Tilt Adjusting Wrench
Mounting Screw
Felt Washer, Black
Felt Washer, White
Mounting Screw
Mounting Screw
Tubing, Latex Cut
Mounting Screw
Tubing, Latex Cut
Mounting Hex Nut
Lock Washer, Intl
Mounting Hex Nut
Lock Washer, Intl
Screw Set
Mounting Screw
Mounting Screw
Knob, Black
Mounting Screw
Mounting Hex Nut
Lock Washer, Intl
Mounting Screw
Adjusting Wrench, Saddle Height
Intonation Spring, 5&6
Intonation Spring, 1- 4
REF.# P/N
26 0021429000 String Retainer Ferrule
Body Part Number
0055221500
0038417521
0028174505
0028174506
0028174524
0028174574
0028174593
DESCRIPTION
3 Color Sunburst
Natural Ash
Olymic White
Black
Inca Silver
Aqua Blue Metallic
Purple Metallic
Pg. 3 of 4
11-28-99
