Fender American Standard Jazz Bass Assembly
Control assembly
Hide thumbs
Also See for American Standard Jazz Bass:
- Owner's manual (36 pages) ,
- Owner's manual (36 pages)
Advertisement
Quick Links
AMERICAN STANDARD JAZZ BASS 0192400/2402
17
BLACK WIRE FROM
NECK PICKUP
WHITE WIRE FROM
NECK PICKUP
BLACK WIRE FROM
BRIDGE PICKUP
WHITE WIRE FROM
BRIDGE PICKUP
BLACK WIRE (GROUND)
FROM UNDER BRIDGE PLATE

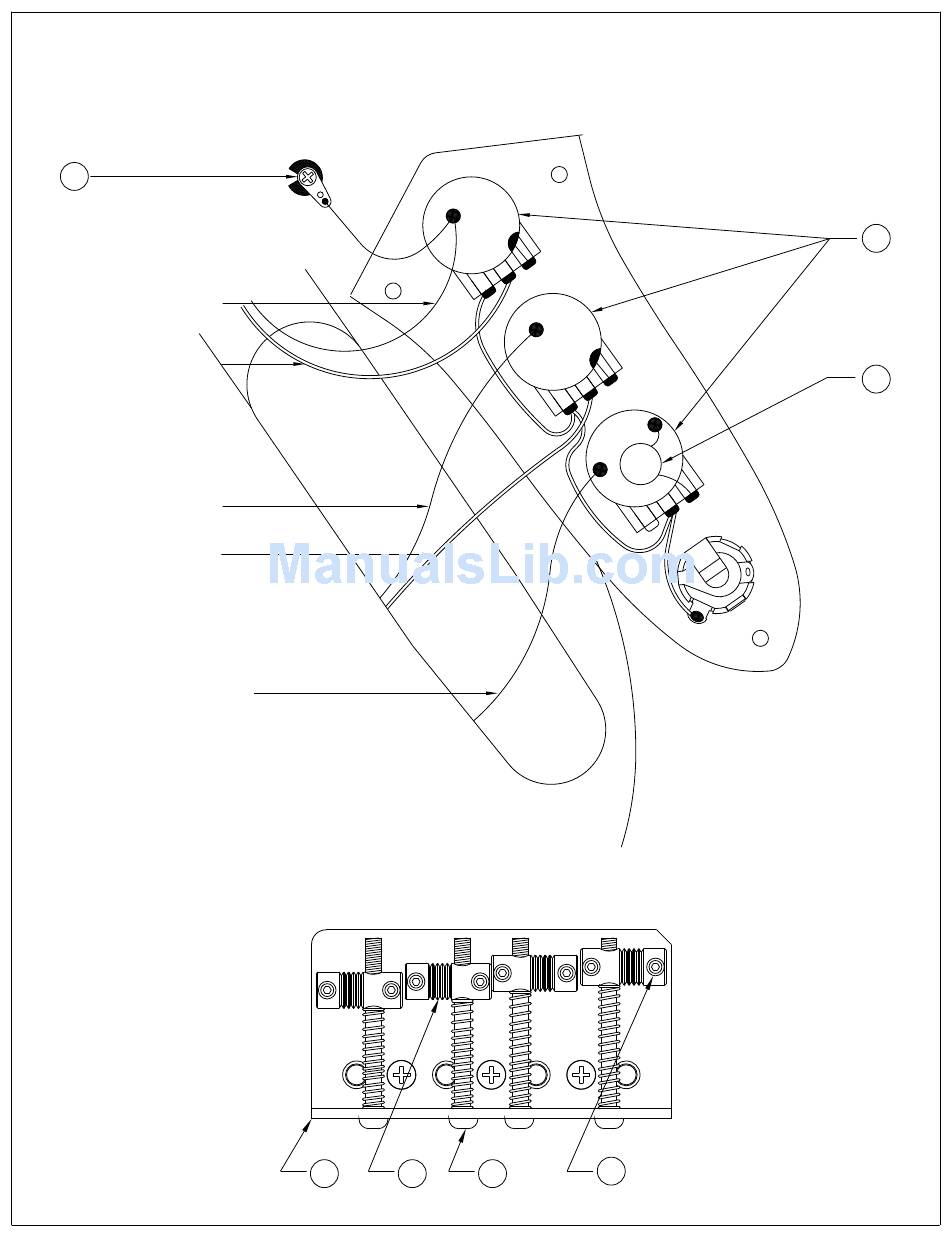

CONTROL ASSEMBLY
BRIDGE ASSEMBLY
20
21
22
.05uf
23
12
16
Pg. 2 of 4
04-18-2000
