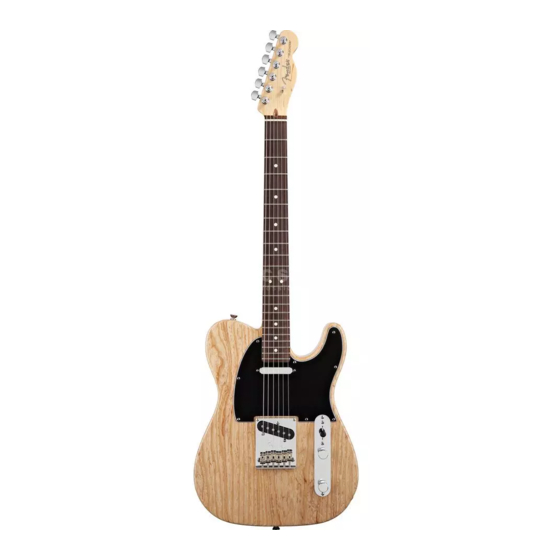

Fender American Standard Telecaster Specifications

REF.# P/N
1 0028177000 Neck, American Standard Telecaster, M/N
0028176000 Neck, Ameriacn Standard Telecaster, R/W
2 0021374000 Tuning Key, (1) Set, W/Bushing
3 0083675000 Bone Nut
4 0021537000 String Retainer
0021405000
5 0020810000 Truss Rod Adjustment Nut
0023811000
6 0054056xxx Body, Hot Rod Fat Tele., Solid Paint
0055223xxx Body, Hot Rod Fat Tele., Sunburst
7 0054038000 Neck Mounting Plate
0021424000
0031571000
0023811000
8 0021453000 Strap Button
0021422000
0019056000
0020491000
9 0054058000 Pickguard, Hot Rod Fat Tele., Pearl
0021407000
10 0053691000 Pickup, Neck, Humbucker, Hot Rod Fat Tele
0050166000
0050167000
11 0050888000 Pickup, Bridge, Hot, Am. Std. Tele
0048631000
0036878000
12 0037407000 Control, 500K, Audio, (2)
0016352000
0016436000
13 0013359000 Knob, Knurled (2)
0028897001
14 0033134060 Control Plate
0021407000
15 0039003000 Switch, Lever 5-Position
0021413000
0018359000
16 0024832000 Capacitor, .022uf
17 0054066000 Resistor, 270K
0012481000
18 0012869000 Solder Lug
0015116000
19 0021956000 Output Jack
0016352000
0016436000
20 0021452000 Ferrule, Jack
21 0028182000 Bridge Assembly, Telecaster
0021373000
0018531000
22 0028184000 Bridge Plate
23 0026099000 Bridge Section, (6)
24 0017031000 Intonation Screw, 1-4
0029094000
0031913000 Intonation Screw, 5&6
0029095000
25 0026780000 Height Adjustment Screw, 1&6
0018027000 Height Adjustment Screw, 2-5
26 0021429000 Ferrule, String Retainer
U.S. FAT TELECASTER 0108000/8002
DESCRIPTION
Mounting Screw
Truss Rod Adjusting Wrench
Mounting Screw
Tilt Adjustment Screw
Tilt Adjusting Wrench
Mounting Screw
Felt Washer, Black
Felt Washer, White
Mounting Screw
Mounting Screw
Spring, Humbucker
Mounting Screw
Tubing, Latex Cut
Mounting Hex Nut
Lock Washer, Intl
Screw Set
Mounting Screw
Mounting Screw
Knob, Black
Tubing, Shrink
Mounting Screw
Mounting Hex Nut
Lock Washer, Intl
Mounting Screw
Adjusting Wrench, Saddle Height
Intonation Spring, 1-4
Intonation Spring, 5&6
Body Part Number
0055223500 3 Color Sunburst
0054056505 Olympic White
0054056506 Black
0054056509 Candy Apple Red
Pg. 3 of 4
04-18-2000
