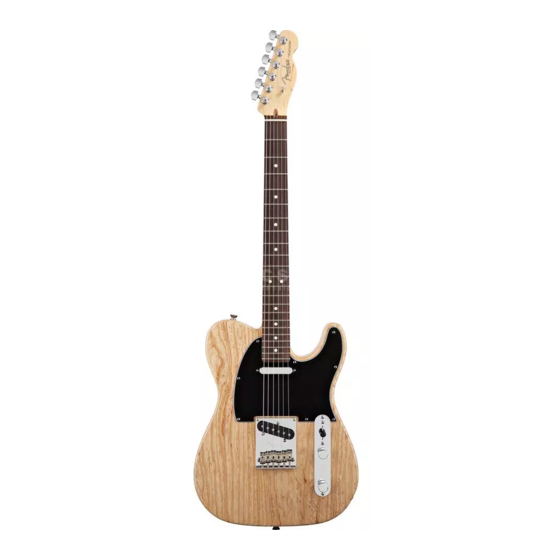

Fender American Standard Telecaster Specifications

AMERICAN STANDARD TELECASTER / LEFT HAND / 0108422
REF.# P/N
1 0028189000 Neck, American Standard Telecaster, M/N
2 0022151000 Tuning Key, (1) Set, W/Bushing
3 0083675000 Bone Nut
4 0021537000 String Retainer
0021405000
5 0020810000 Truss Rod Adjustment Nut
0023811000
6 0028187xxx Body, Am. Std. Tele., Solid Paint
0055222xxx Body, Am. Std. Tele., Sunburst
7 0054038000 Neck Mounting Plate
0021424000
0031571000
0023811000
8 0021453000 Strap Button
0021422000
0019056000
0020491000
9 0028190000 Pickguard, Am. Std. Tele., White/Black/White
0021407000
10 0050890000 Pickup, Neck, Hot, Am. Std. Tele
0021409000
0039409000
11 0050888000 Pickup, Bridge, Hot, Am. Std. Tele
0048631000
0036878000
12 0019064000 Control, 250K, Audio, (2)
0016352000
0016436000
13 0013359000 Knob, Knurled (2)
0028897001
14 0033134060 Control Plate
0021407000
15 0053290000 Switch, Lever 3-Position
0021413000
0018359000
16 0024832000 Capacitor, .022uf
17 0021956000 Output Jack
0016352000
0016436000
18 0021452000 Jack Ferrule
19 0028192000 Bridge Assembly, Telecaster
0021373000
20 0028193000 Bridge Plate
21 0026111000 Bridge Section, (6)
22 0031913000 Intonation Screw, 5&6
0029095000
0017031000 Intonation Screw, 1- 4
0029094000
23 0026780000 Height Adjustment Screw, 1&6
0018027000 Height Adjustment Screw, 2-5
0018531000
24 0021429000 Ferrule, String Retainer
DESCRIPTION
Mounting Screw
Truss Rod Adjusting Wrench
Mounting Screw
Tilt Adjustment Screw
Tilt Adjusting Wrench
Mounting Screw
Felt Washer, Black
Felt Washer, White
Mounting Screw
Mounting Screw
Tubing, Latex Cut
Mounting Screw
Tubing, Latex Cut
Mounting Hex Nut
Lock Washer, Intl
Screw Set
Mounting Screw
Mounting Screw
Knob, Black
Mounting Hex Nut
Lock Washer, Intl
Mounting Screw
Intonation Spring, 5&6
Intonation Spring, 1- 4
Adjusting Wrench, Saddle Height
Body Part Number
0055222500 3 Color Sunburst
0028187505 Olymic White
0028187506 Black
0028187593 Purple Metallic
Pg. 3 of 4
04-17-2000
