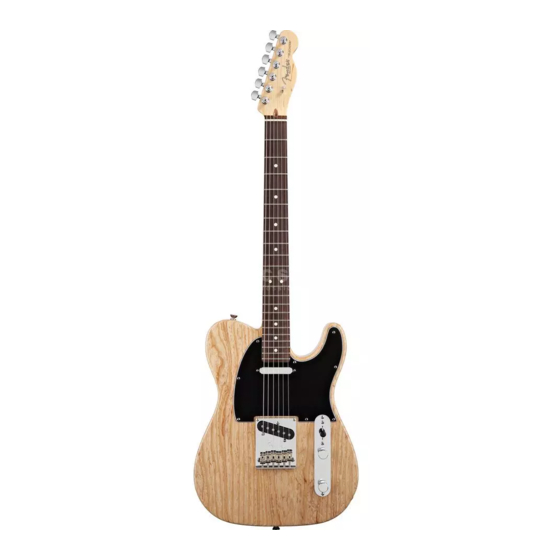

Fender American Standard Telecaster Specifications

REF.# P/N
1 0028177000 Neck, American Standard Telecaster, M/N
2 0021374000 Tuning Key, (1) Set, W/Bushing
3 0083675000 Bone Nut
4 0021537000 String Retainer
0021405000
5 0020810000 Truss Rod Adjustment Nut
0023811000
6 0054072xxx Body, Hot Rod B-Bender Tele., Sunburst
7 0054038000 Neck Mounting Plate
0021424000
0031571000
0023811000
8 0021453000 Strap Button
0021422000
0019056000
0020491000
9 0048638000 Pickguard, Telecaster Plus, Pearl
0021407000
10 0050890000 Pickup, Neck, Am. Std. Tele, Hot
0021409000
0039409000
11 0053102000 Pickup, Middle, Texas Special
0048631000
0036481000
12 0050888000 Pickup, Bridge, Am. Std. Tele., Hot
0048631000
0036878000
13 0019064000 Control, 250K, Audio
0016352000
0016436000
14 0050886000 Control, 250K, Solid
0016352000
0016436000
15 0013359000 Knob, Knurled (2)
0028897001
16 0033134060 Control Plate
0021407000
17 0039003000 Switch, Lever 5-Position
0021413000
0018359000
18 0024832000 Capacitor, .022uf
19 0012869000 Solder Lug
0015116000
20 0021956000 Output Jack
0016352000
0016436000
21 0021452000 Ferrule, Jack
22 0050642000 Bridge Assembly, B-Bender Telecaster
0021373000
23 0050632000 Bridge Plate
24 0026099000 Bridge Section, (5)
25 0050633000 Bridge Section, (1)
26 0017031000 Intonation Screw, 1-4
0029094000
0031913000 Intonation Screw, 5&6
0029095000
27 0026780000 Height Adjustment Screw, 1&6
0018027000 Height Adjustment Screw, 2-5
NASHVILLE B-BENDER TELECASTER 0108342
DESCRIPTION
Mounting Screw
Truss Rod Adjusting Wrench
Mounting Screw
Tilt Adjustment Screw
Tilt Adjusting Wrench
Mounting Screw
Felt Washer, Black
Felt Washer, White
Mounting Screw
Mounting Screw
Tubing, Latex Cut
Mounting Screw
Tubing, Latex Cut
Mounting Screw
Tubing, Latex Cut
Mounting Hex Nut
Lock Washer, Intl
Mounting Hex Nut
Lock Washer, Intl
Screw Set
Mounting Screw
Mounting Screw
Knob, Black
Mounting Screw
Mounting Hex Nut
Lock Washer, Intl
Mounting Screw
Intonation Spring, 1-4
Intonation Spring, 5&6
REF.# P/N
0018531000 Adjusting Wrench, Saddle Height
28 0050640000 B-Bender Assembly
0021407000
29 0050619000 Ferrule, B-Bender
30 0021429000 Ferrule, String Retainer
Body Part Number
0054072500
0054072505
0054072506
0054072509
DESCRIPTION
Mounting Screw
3 Color Sunburst
Olympic White
Black
Candy Apple Red
Pg. 3 of 4
04-18-2000
