- Page 2 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ... 1 Features ... 1 Package Contents... 1 System Requirements... 2 LED Status ... 2 2. Driver Installation ... 3 On Windows 2000/XP/Server 2003/Vista ... 3 Verifying the Driver Installation on Windows ... 5 On MAC OS X 10.x ... 6 Verifying the Driver Installation on Mac ... -
Page 4: Introduction

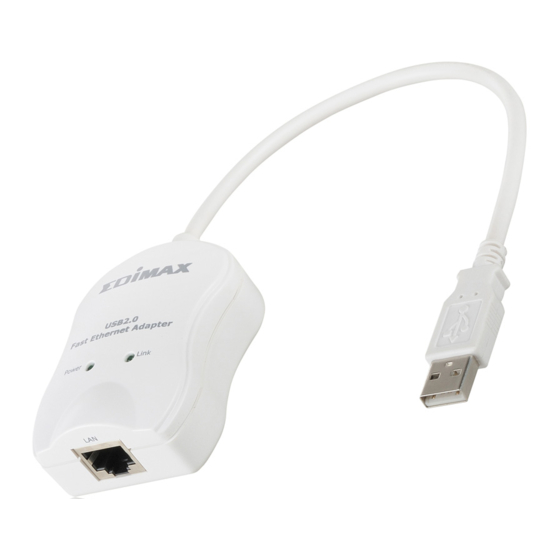

1. Introduction The USB 2.0 Ethernet Adapter allows your computer instantly connect to a 10/100Mbps network through simply a USB port; no hassle to open up your computer case as is required for an internal card now! It’s also an ideal USB-to-LAN alternative for gaming console that needs network access in an environment lacking wireless capability. -
Page 5: System Requirements
System Requirements CPU : Pentium III 1G above or similar Memory size : 256MB RAM One CD-ROM drive Hard Disk : At least 100MB available space One available USB port OS: Window 2000/XP/Server 2003/Vista or MAC OS 10.4.x and above LED Status Color Power... -
Page 6: Driver Installation
2. Driver Installation On Windows 2000/XP/Server 2003/Vista 1. With your computer switched on, insert the “USB2.0 to Fast Ethernet Adapter” into an available USB2.0 port of your computer. The following message will appear on your screen, Please click ‘Cancel’ and use the wizard to install driver. - Page 7 2. Please insert the installation CD into your CDROM drive. The Autorun setup programs should run under Windows 2000/XP/Server 2003/Vista, or you can click on the “Browse CD” to find other OS drivers in the CD. 3. Connect the Ethernet adapter’s USB end to a free USB port of your computer.
-
Page 8: Verifying The Driver Installation On Windows
Verifying the Driver Installation on Windows Once you finish the installation, you can open Windows Device Manager to verify if your Ethernet adapter is properly installed. To access the Device Manager: On Windows Vista: Right-click Computer on the desktop and click Properties >... -
Page 9: On Mac Os X 10.X
On MAC OS X 10.x 1. Insert the provided driver CD into your CD-ROM drive. Double-click the CD and navigate to the directory of \Drivers\Mac 2. In the directory of Mac10.x, please double-click AX88772_10.4 to execute the installer program. The onscreen prompted and please click on Continue to go to next step. - Page 10 4. Please select a destination volume to install driver software and click on Continue. 5. Click on Upgrade or Install to continue this installation. 6. Make sure that you want to install this driver now and the computer will be restarted once the installation is done. Please click on Continue Installation to continue this installation.
- Page 11 7. Click on Restart to take the new settings effect. Now the installation is complete. You can connect the adapter to a network device by an Ethernet cable: 1. Connect an Ethernet cable to the Ethernet port on the adapter. 2.
-
Page 12: Verifying The Driver Installation On Mac
Verifying the Driver Installation on Mac Once you finish the installation of Ethernet Adapter, please navigate to System Profiler>Hardware>USB, then you will find the driver of AX88772. Also navigate to System Preference>Network, please click on Renew DHCP Lease and Apply Now as following to verify the installation of driver and Ethernet Adapter. -
Page 13: Specifications
3. Specifications Items Network Standards Data Transfer Rates Data Bus LED Indicators Power Consumption Power Management Network Interface Operating System Support Dimensions Weight Operating Temperature Certifications * Specification is subject to change without further notice. Descriptions IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-T Ethernet: 10Mbps/20Mbps (Half/Full Duplex) Fast Ethernet: 100Mbps/200Mbps (Half/Full Duplex) -
Page 14: Federal Communication Commission
4. Federal Communication Commission This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
