Summary of Contents for Edimax EU-4208

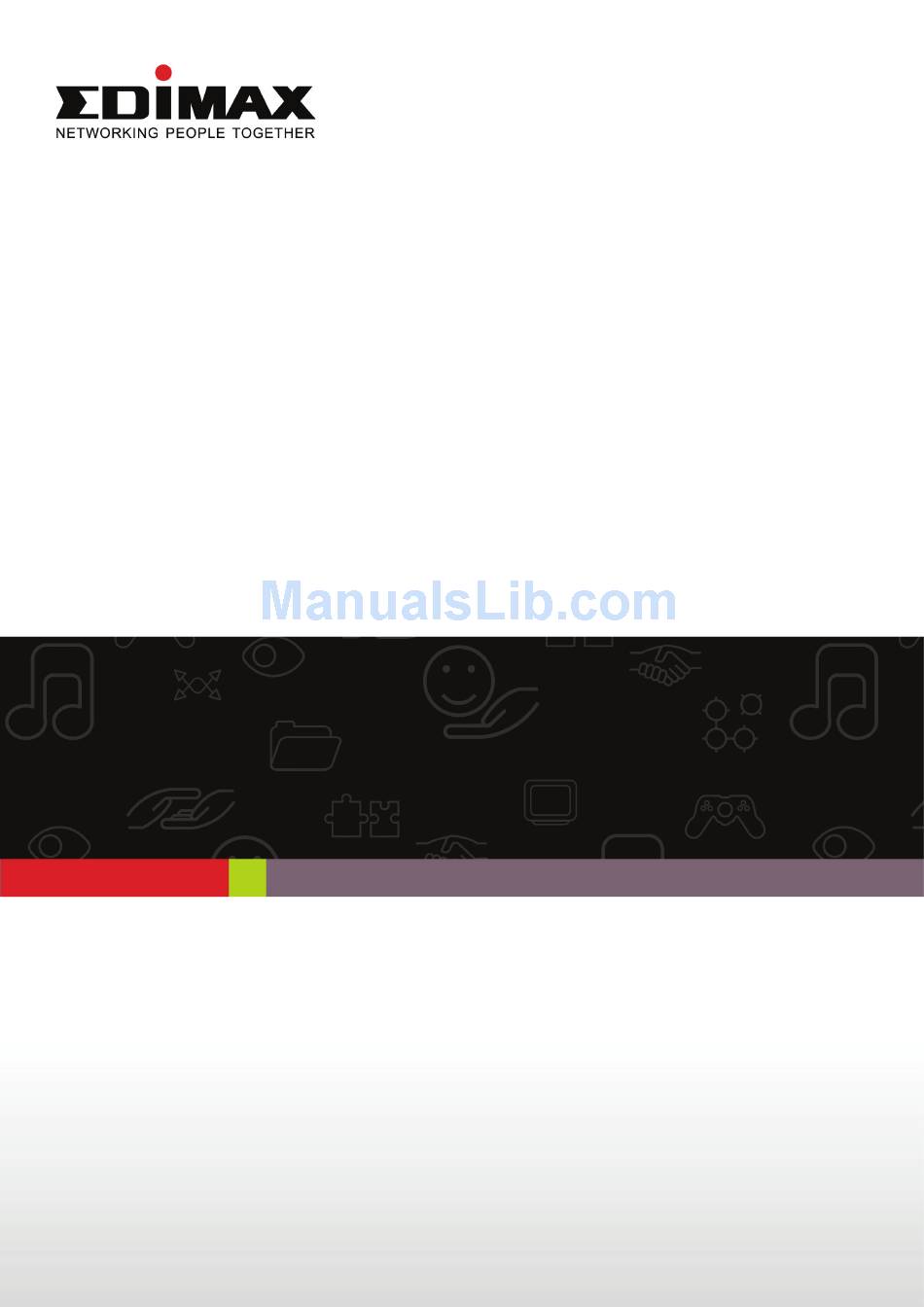

- Page 1 EU-4208 Quick Installation Guide 04-2012 / v1.0 ...
- Page 2 COPYRIGHT Copyright © Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd. Edimax Technology Co., Ltd. makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability, or fitness for any particular purpose. Any software described in this manual is sold or licensed as is. Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Edimax Technology Co., Ltd. reserves the right to revise this publication and to make changes from time to time in the contents hereof without the obligation to notify any person of such revision or changes. The product you have purchased and the setup screen may appear slightly different from those shown in this QIG. For more information about this product, please refer to the user manual on the CD‐ROM. The software and specifications are subject to change without notice. Please visit our website www.edimax.com for updates. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Edimax Technology Co., Ltd. Add: No. 3, Wu‐Chuan 3 Rd., Wu‐Ku Industrial Park, New Taipei City, Taiwan Tel: +886‐2‐77396888 Email: sales@edimax.com.tw 1 ...

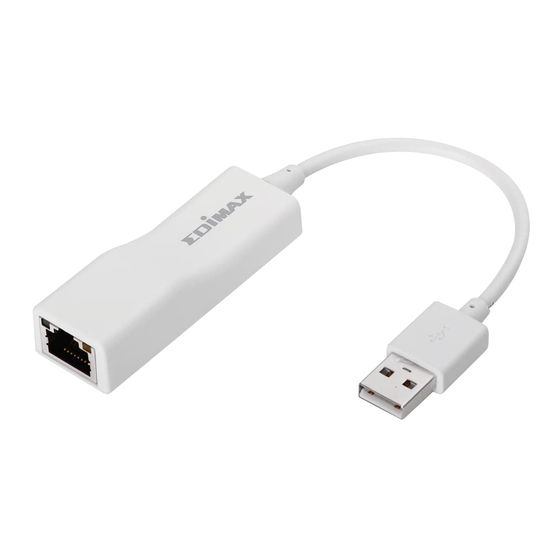

- Page 3 PRODUCT INTRODUCTION Package Contents Before you start using this product, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): USB 2.0 Fast Ethernet Adapter x 1 Quick installation guide x 1 CD with setup wizard, user manual & multi‐language QIG x 1 Main Features Complies with IEEE 802.3/802.3u standards Complies with USB 2.0/1.1 specifications Supports 10/100Mbps auto‐negotiation Low power consumption in idle mode and low traffic conditions No external power adapter required Supports Windows 2000/XP/Vista/7 and Mac OS X 10.x DRIVER INSTALLATION For Windows 2000, XP, Vista, 7 1. With your computer switched on, insert the Fast Ethernet adapter into an available USB port on your computer. The following will appear on your screen. Please click “Cancel” and use the wizard to install the driver. 2 ...
- Page 4 2. Please insert the installation CD into your CD‐ROM drive. The wizard will help you install the driver for Windows 2000/XP/Vista/7. You can find the drivers for other operation systems in the CD. For Mac OS 10.x 1. Please insert the installation CD into your CD‐ROM drive. Double‐click the CD and navigate to the “…\Drivers\Mac\” directory. 2. Find and double‐click the “AX88772_3.5.0” file to execute the installer program. 3. When the wizard appears, click “Continue” to proceed. 4. Select a destination volume to install the driver and click “Continue”. 5. Click “Install” to install the driver. 6. Click “Continue Installation” to proceed. 7. After the installation is complete, please make sure you are not running any other applications and click “Restart” to activate the new settings. 3 ...
- Page 5 DRIVER VERIFICATION For Windows XP, Vista, 7 1. Follow the paths below to open the “Device Manager” on Windows to verify the driver of the Fast Ethernet adapter. Windows 7: “Control Panel\System and Security\System\Device Manager” Windows Vista: “Control Panel\System Maintenance\Device Manager” Windows XP: “Control Panel\System\Hardware\Device Manager” 2. Check if “ASIX…Ethernet Adapter” is listed in the “Network adapters” group. For Mac OS 10.x 1. Follow the path below to verify the driver of the Fast Ethernet adapter. “System Profiler\Hardware\USB” or “System Preference\Network” 2. Check if “AX88772” is listed. Note: For more information, please refer to the user manual in the CD. 4 ...
- Page 6 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This device and its antenna must not be co‐located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. Federal Communications Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 2.5cm (1 inch) during normal operation. Federal Communications Commission (FCC) RF Exposure Requirements SAR compliance has been established in the laptop computer(s) configurations with PCMCIA slot on the side near the center, as tested in the application for certification, and can be used in laptop computer(s) with substantially similar physical dimensions, construction, and electrical and RF characteristics. Use in other devices such as PDAs or lap pads is not authorized. This transmitter is restricted for use with the specific antenna tested in the application for certification. The antenna(s) used for this transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. ...
- Page 7 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2009/125/EC. French: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 1999/5/CE, 2009/125/CE. Czechian: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 1999/5/ES, 2009/125/ES. Polish: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami określonymi Dyrektywą UE 1999/5/EC, 2009/125/EC. Romanian: Acest echipament este în conformitate cu cerințele esențiale şi alte prevederi relevante ale Directivei 1999/5/CE, 2009/125/CE. Russian: Это оборудование соответствует основным требованиям и положениям Директивы 1999/5/EC, 2009/125/EC. Magyar: Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek (1999/5/EK, 2009/125/EC). Türkçe: Bu cihaz 1999/5/EC, 2009/125/EC direktifleri zorunlu istekler ve diğer hükümlerle ile uyumludur. Ukrainian: Обладнання відповідає вимогам і умовам директиви 1999/5/EC, 2009/125/EC. Slovakian: Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc 1999/5/ES, 2009/125/ES. German: Dieses Gerät erfüllt die Voraussetzungen gemäß den Richtlinien 1999/5/EC, 2009/125/EC. Spanish: El presente equipo cumple los requisitos esenciales de la Directiva 1999/5/EC, 2009/125/EC. Italian: ...
- Page 8 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European Council directive (2004/108/EC). Equipment: USB 2.0 Fast Ethernet Adapter Model No.: EU‐4208 The following European standards for essential requirements have been followed: EMC: EN 55022: 2006/A1: 2007 (Class B) EN 55024: 1998/A1: 2001/A2: 2003 EN 61000‐3‐2: 2006+ A2: 2009 EN 61000‐3‐3: 2008 Edimax Technology Co., Ltd. No. 3, Wu Chuan 3 Road, Wu‐Ku Industrial Park, New Taipei City, Taiwan Date of Signature: April, 2012 Signature: Printed Name: Albert Chang Title: Director Edimax Technology Co., Ltd. ...
