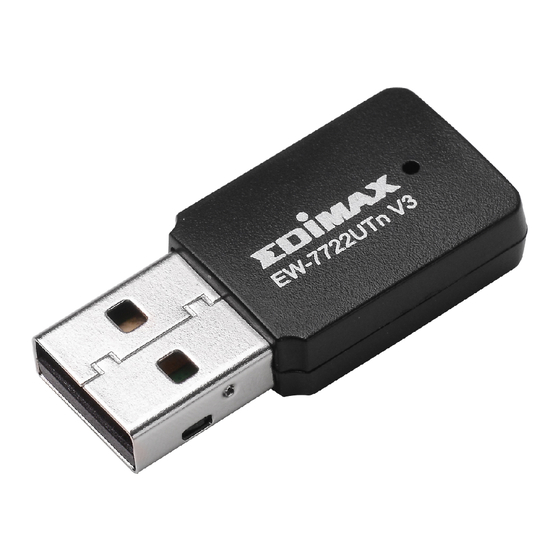

EW-7722UTn V3
Quick Installation Guide
07-2019 / v1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW-7722UTn V3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax EW-7722UTn V3

Summary of Contents for Edimax EW-7722UTn V3

  • Page 1 EW-7722UTn V3 Quick Installation Guide 07-2019 / v1.0...

  • Page 2: Table Of Contents

    Contents I. Product Information ................1 I-1. Package Contents ........................1 I-2. LED Status ..........................1 I-3. System Requirements ......................1 I-4. Safety ............................2 II. Installation .................... 3 III. Windows ....................4 III-1. Driver Installation ........................4 III-2. Driver Uninstallation ......................6 III-2-1.

  • Page 3: Product Information

    I. Product Information I-1. Package Contents EW-7722UTn V3 I-2. LED Status LED Status Description LED displays on for five seconds to indicate a successful WPS connection. Wireless activity: transmitting or receiving Flashing data. Fast Flashing WPS is active. (3 x per second) No wireless activity.

  • Page 4: I-4. Safety

    6. The wireless adapter is an electrical device and as such, if it becomes wet for any reason, stop using it immediately. Contact an experienced electrical technician for further help. Download product material here https://www.edimax.com/download...

  • Page 5: Installation

    Never use force to insert the USB adapter. 2. Please download driver from https://www.edimax.com/download entering the model number “EW-7722UTn V3” into the search box. 3. If a Hardware Wizard/Driver Installation window opens as shown to the left, please click “Cancel” or “Close”.

  • Page 6: Windows

    Driver Installation 1. Please download driver from https://www.edimax.com/download entering the model number “EW-7722UTn V3” into the search box. 2. Click “Install Driver” to install the drivers for your EW-7722UTn V3. 3. Click “Next” to install the drivers for your EW-7722UTn V3.
  • Page 7 4. Please wait while the driver is installing. 5. Before you can use the wireless adapter, you need to restart your computer. When the installation is complete you will be asked to choose whether you wish to restart your computer now or later. Click “Finish” to continue.

  • Page 8: Iii-2. Driver Uninstallation

    6. After you restart your computer, your EW-7722UTn V3 will be installed and fully functional. Please disable any other wireless adapters as described in V. Disabling Network Adapters. Then, Windows users can connect to an available Wi-Fi network as usual. For guidance on doing so, please refer to VI.

  • Page 9: Windows 10

    III-2-3. Windows 10 1. Open WinX menu by holding Windows and X keys together, and then click “Programs and Features”. 2. Look for Edimax Wireless LAN Driver and Utility in the list, click on it and then click “Uninstall”.

  • Page 10: Mac Os

    1. After downloading driver from https://www.edimax.com/download entering the model number “EW-7722UTn V3” into the search box, open the “…_MacOS10.9_MacOS10.14_Driver_…” folder for your version of Mac OS X (10.9 - 10.14) and double click the “Install.pkg” file to open the driver installation wizard.
  • Page 11 4. Select a language and click “Continue” to install the driver.
  • Page 12 5. To read the software license click “Read License” and then click “Agree” to confirm you agree to the terms. You must agree to the terms to continue installing the software. 6. Click “Install” to install the driver. 7. You may be prompted to enter your system/administrative password before the installation can begin.
  • Page 13 9. Please wait while the driver is installing. 10. When the installation is complete, you will see the following screen informing you that “The installation was successful”. Click “Restart” to restart your computer. 11. When the adapter is connected to your computer (after your system has restarted) the wireless utility will open automatically.

  • Page 14: Iv-2. Driver Uninstallation

    IV-2. Driver Uninstallation Ensure you select the correct folder for your version of Mac OS. To check your version of Mac OS, click the Apple logo in the top left corner of your desktop and go to “About This Mac”. 1.

  • Page 15: Disabling Network Adapters

    V. Disabling Network Adapters To ensure that your USB wireless adapter can function correctly, it is recommended that you disable any other existing wireless network adapters installed on your computer. If you are unsure how to do so, you can refer to the user manual for your computer, or follow the guidance below.

  • Page 16: Windows 10

    V-3. Windows 10 1. Open Settings. The click on Network & Security > Status >Change adapter options.
  • Page 17 2. Right-click the network adapter, and select the “Disable” option.

  • Page 18: Mac

    V-4. 1. Select “System Preferences” from the dock. 2. In “System Preferences”, select “Network”. 3. All of your network connections will be displayed, as shown below. Select “Wi-Fi” from the left panel. 4. Click “Turn Wi-Fi” off in the main panel.

  • Page 19: Using The Adapter

    VI. Using The Adapter After you have installed the driver and if necessary disabled other wireless adapters (see V. Disabling Network Adapters), Windows users can connect to a Wi-Fi network as usual (see below). Mac users need to connect to a Wi-Fi network using the included utility software, as described in VI-2.
  • Page 20 3. After correctly entering your password, you will be successfully connected to your Wi-Fi network.

  • Page 21: Vi-2. Mac: Connecting To A Wi-Fi Network

    VI-2. Mac: Connecting to a Wi-Fi network 1. On the desktop right-top menu bar, click the USB Wi-Fi added image icon to click a Wi-Fi network name (SSID) you want to connect to. 2. Enter the password (network key) for the Wi-Fi network if necessary. 3.

  • Page 22: Vi-3. Mac: Wireless Utility

    4. You will be successfully connected to your Wi-Fi network. Check the status on the desktop right-top menu bar to click the Wi-Fi icon, the connected Wi-Fi network shown as below. VI-3. Mac: Wireless Utility The wireless utility offers features to monitor and configure your connection. On the desktop right-top menu bar, click the Wi-Fi icon then click the “Open Wireless Utility…”...
  • Page 23 1. Join Other i. Select “Join Other” to connect to other wireless network such as the hidden Wi-Fi network name (SSID). ii. Enter the Wi-Fi network name (SSID) you want to connect to.
  • Page 24 iii. Select Wi-Fi security type. iv. Enter the password (network key) for the Wi-Fi network if necessary. v. Click the “Join” to connect the Wi-Fi network.
  • Page 25 2. Profiles i. Select the connected Wi-Fi network you want to see the profiles and click the “Profiles”. ii. The “Profiles” page displays information of the current wireless connection.

  • Page 26: Vi-4. Mac: Wps

    VI-4. Mac: WPS Wi-Fi Protected Setup is a simple, alternative way to establish connections between WPS compatible devices. Most of the wireless router and access point feature a built-in WPS button, which activates WPS on that device. When WPS is activated in the correct manner and at the correct time for two compatible devices, they will automatically connect to each other.
  • Page 27 i. The wireless adapter’s PIN code is listed in the “WPS” page. Go to your wireless router/access point’s web user interface and input the wireless adapter’s PIN code in the correct location, and activate PIN code WPS for your wireless router/adapter. Please check the instructions for your wireless router/access point for how to access the web user interface and where to input the PIN code.
  • Page 28 2. PBC (Push Button Configuration) WPS The EW-7722UTn V3 PBC WPS can be executed from this page by following the steps below or by push the physical WPS button to connect the Wi-Fi through the VI-4. WPS Setup instruction: i. Press the WPS button on your wireless router/access point for the correct length of time to activate its WPS.

  • Page 29: Vi-5. Wps Setup

    Please check the instructions for your wireless router/access point for how long you need to hold down its WPS button to activate WPS. 2. Within two minutes, press the WPS button on button to activate its WPS. EW-7722UTn V3 3. The devices will establish a connection.
  • Page 30 COPYRIGHT Copyright  Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
  • Page 31 This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. A simplified DoC shall be provided as follows: Article 10(9) Hereby, Edimax Technology Co., Ltd. declares that the radio equipment type N300 Wireless LAN USB Adapter...
  • Page 32 Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.
  • Page 33 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU, 2014/35/EU. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 2014/53/EU, 2014/35/EU. Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2014/53/EU, 2014/35/EU.
  • Page 34 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European Radio Equipment directives. Equipment: N300 Wireless LAN USB Adapter Model No.: EW-7722UTn V3 The following European standards for essential requirements have been followed:...
